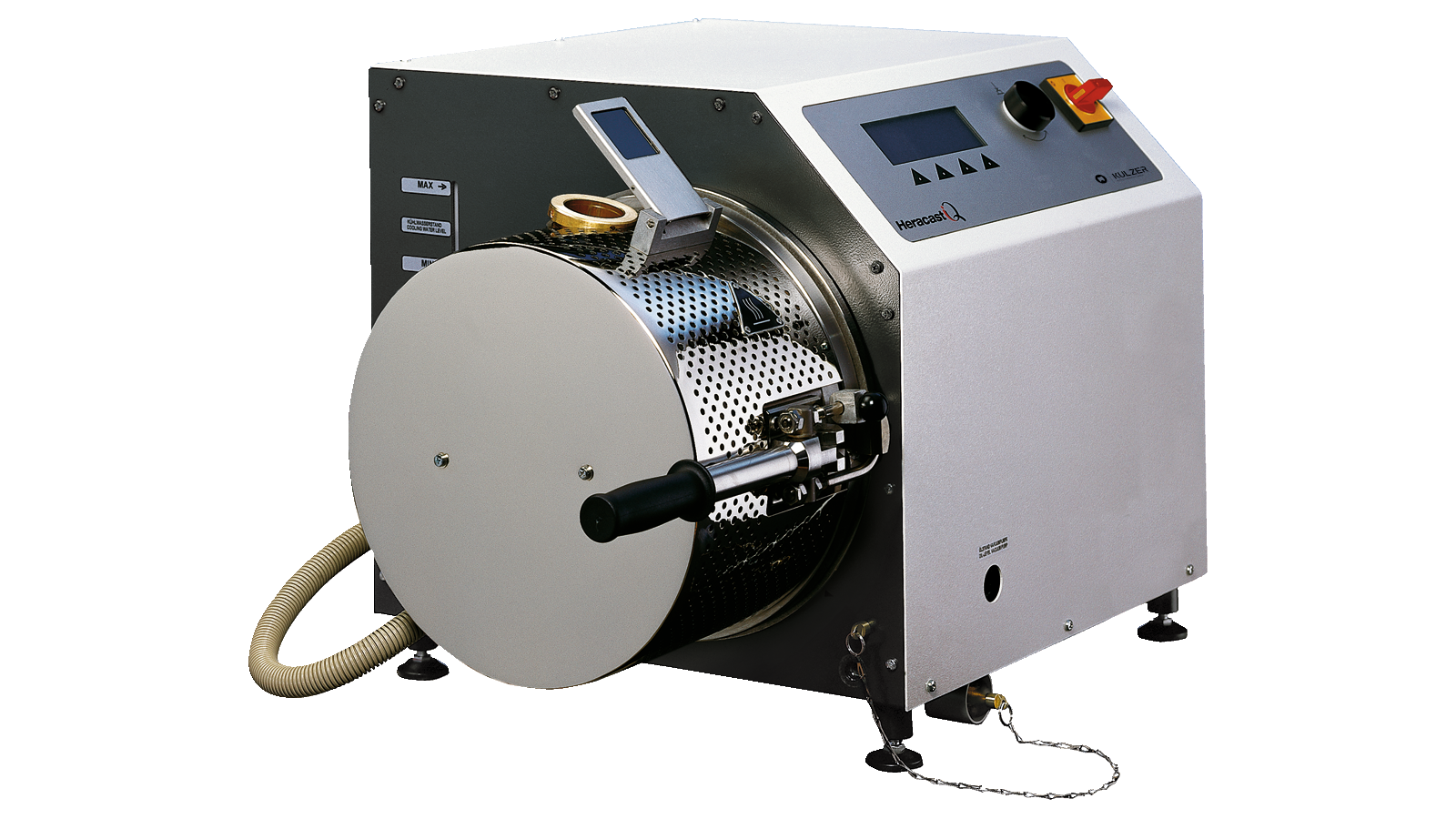

Heracast® iQ
Intelligent vacuum-pressure casting machine
Vacuum pump and cooling are integrated into the compact table-top unit. Just plug it in – it's ready for use. The Heracast iQ interactively prompts for all information and actions. The risk of operator errors is virtually eliminated. The optimised casting-chamber mechanism makes insertion of the casting mould and filling with metal child's play. The powerful HF generator quickly and gently heats high-gold-content and cobalt-chrome alloy to casting temperature. The Heracast iQ automatically controls the casting process or the operator can control it manually. The results are fine-grained and dense casts with smooth surfaces. Graphite or ceramic inclusions are a thing of the past. Casting is now fun.
Benefits
- short casting times of three to five minutes
- no loss of metal during casting
- safe, material-compatible melting and casting under vacuum
- for all precious-metal and non-precious-metal alloys
- Operating mode: continuous
Specifications
| Technical Specifications: | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated voltage: | 230 V (± 10 %); 50/60 Hz | |||||||||||||
| Melting type: | Induction | |||||||||||||
| Power rating: |
2.0 kVA for generator 2.6 kVA for the complete unit |
|||||||||||||
| Casting temperature: | > 1750°C | |||||||||||||
| Alloys: | Precious metal; non-precious metal; model casting | |||||||||||||
| Volume of alloy (precious metal): | 130 g | |||||||||||||
| Volume of alloy (non-precious metal): | 60 g | |||||||||||||
| Casting sequence: | 3 – 5 min | |||||||||||||
| Operating mode: | 100 % duty cycle | |||||||||||||
| Dimensions (W x D x H): | 770 x 450 x 550 mm (incl. connections) | |||||||||||||
| Floor space required (W x D x H): | 1000 x 500 x 600 mm | |||||||||||||
| Weight: | 65 kg | |||||||||||||
| Languages: | DE, GB, F, I, E | |||||||||||||
| Interface: |
yes, RS 232 (serial PC port for service only) |
|||||||||||||
| Input pressure: | 4 – 7 bar | |||||||||||||
| Working pressure: | 3.3 bar | |||||||||||||
| Pressure sensor: | digital | |||||||||||||
| Pressure safety valve: | yes | |||||||||||||
| Max. vacuum: | < 50 mbar | |||||||||||||
| Vacuum adjustment: | digital via software | |||||||||||||
| Vacuum pump: | integrated | |||||||||||||
| Water cooling: | integrated ~2.5 litres | |||||||||||||
Accessories
The delivery scope includes:
- 10 m compressed air tube (Ø 13mm), incl. 2 hose clip and a nozzle 13 mm.
- Mold receiver key
- Coolant reservoir with tube and coupling
- 2 x door - information sign "Caution! High frequency. Person with pacemarkers are prohibited from using this device."
