cara® Print Clean pro
cara® Print Clean pro

cara® Print Clean pro

Automated, safe, no-mess cleaning.

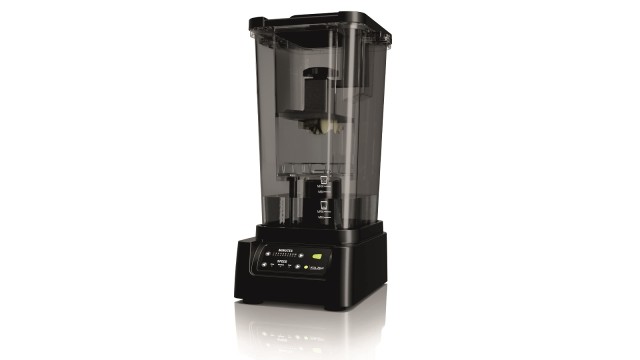

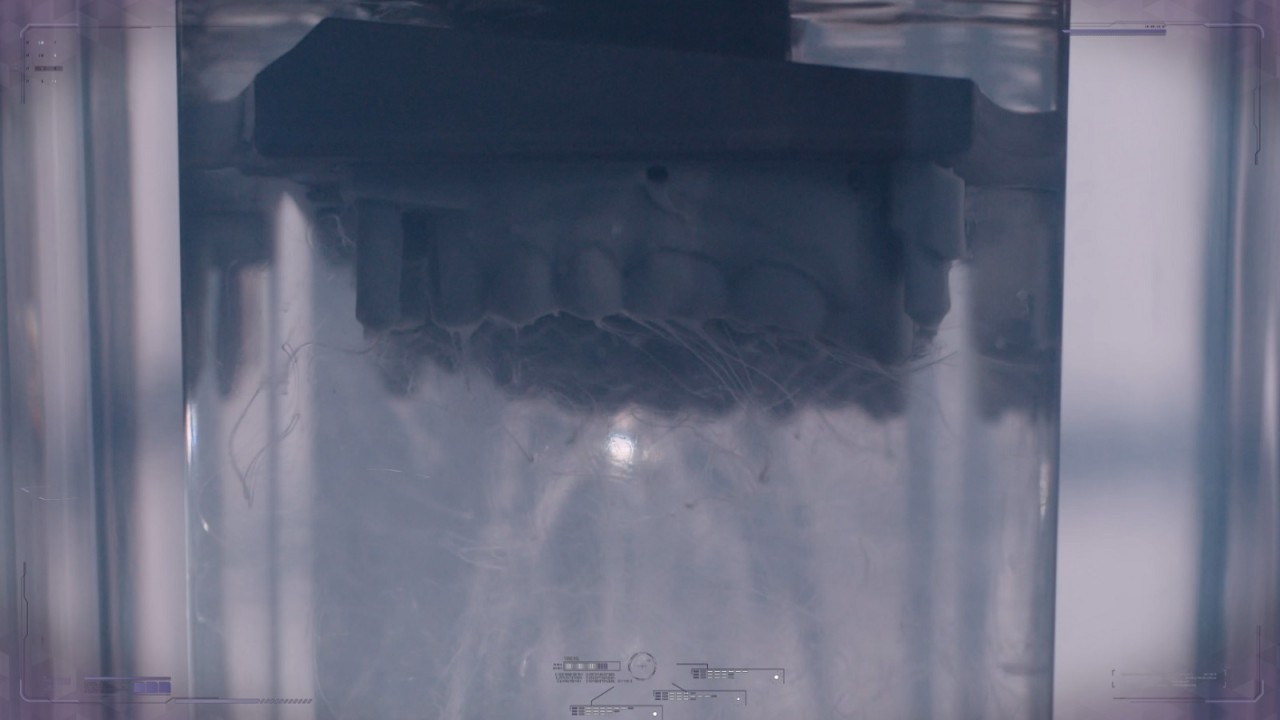

cara Print Clean pro is an automated 3DP cleaning system that agitates isopropanol in a contained volume to clean excess, uncured resin from 3D-printed parts.

cara Print Clean pro is our answer to the critical step between printing and curing dental appliances. One touch operation should not end at the printing phase: automate your post-processing with thorough, no-mess cleaning at the push of a button while protecting yourself from too much exposure to isopropanol.

The new pro version has an even larger chamber to work seamlessly with the new cara Print 4.0 pro 3D printer.

Benefits

  • Hands-free: Clean printed objects without separating from building platform
  • Fast and safe cleaning: Complete in just a few minutes

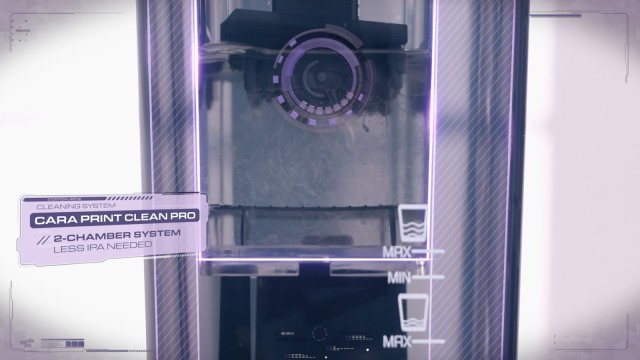

  • Extremely efficient: Less isopropanol (IPA) needed

Good to know

Applications

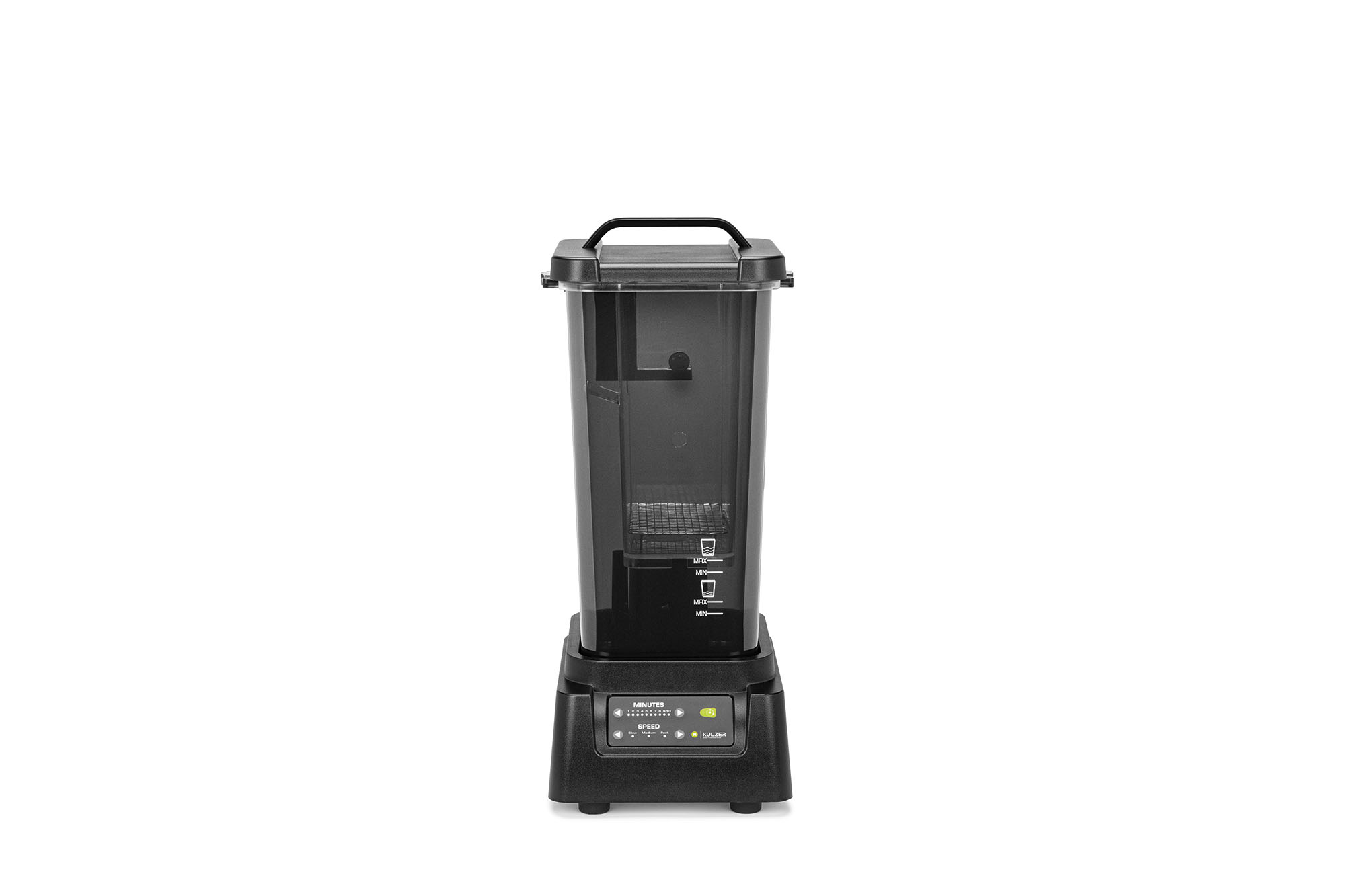

See it from every angle! Click on the image to see a 360° view of cara Print Clean pro.

cara Print Clean Pro

  • 3D printer

    cara Print 4.0 pro

    cara Print 4.0 pro – Quick, precise, economical.

    cara Print 4.0 pro is a 3D printer that easily meets the accuracy requirements for all polymer-based dental appliances. Perfectly fitting restorations, printed in less than 1 hour in most cases.

    Go to product details

  • HiLite power 3D

    Polymerization for 3D printing

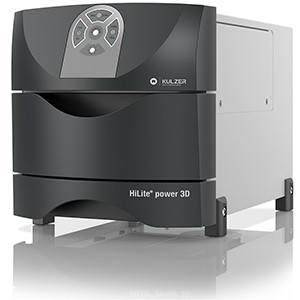

    HiLite power 3D, Polymerization for 3D printing

    Designed specifically to meet the needs of 3D printing, the easy-to-use HiLite power 3D provides enough space for restorations and offers pre-set programs with the option to create additional shortcuts for up to ten user-defined programs.

    Go to product details

  • cara Service

    So that everything works.

    So that everything works, always.

    Service is important, yet often underestimated. Our dental experts are always available for support before, during and after your purchase. Kulzer offers comprehensive support to ensure dental labs are always fully operational.

    Contact us

  • cara LED cure

    Post-curing unit

    cara print led cure

    cara Print LEDcure offers the flexibility to set the time, temperature and LED intensity to ensure optimal illumination conditions for all opaque & transparent 3D print materials.

    Go To Product Details

Specifications

Technical details at a glance
Dimensions / weight W 19.9 x D 26.3 x H 47.4 cm / 3.7 kg (empty)
Cleaning agent Isopropyl alcohol (isopropanol), handle with care.
Min./ max. filling Min. 1.3, Max. 2.0 liters, depending on height of 3D printed objects

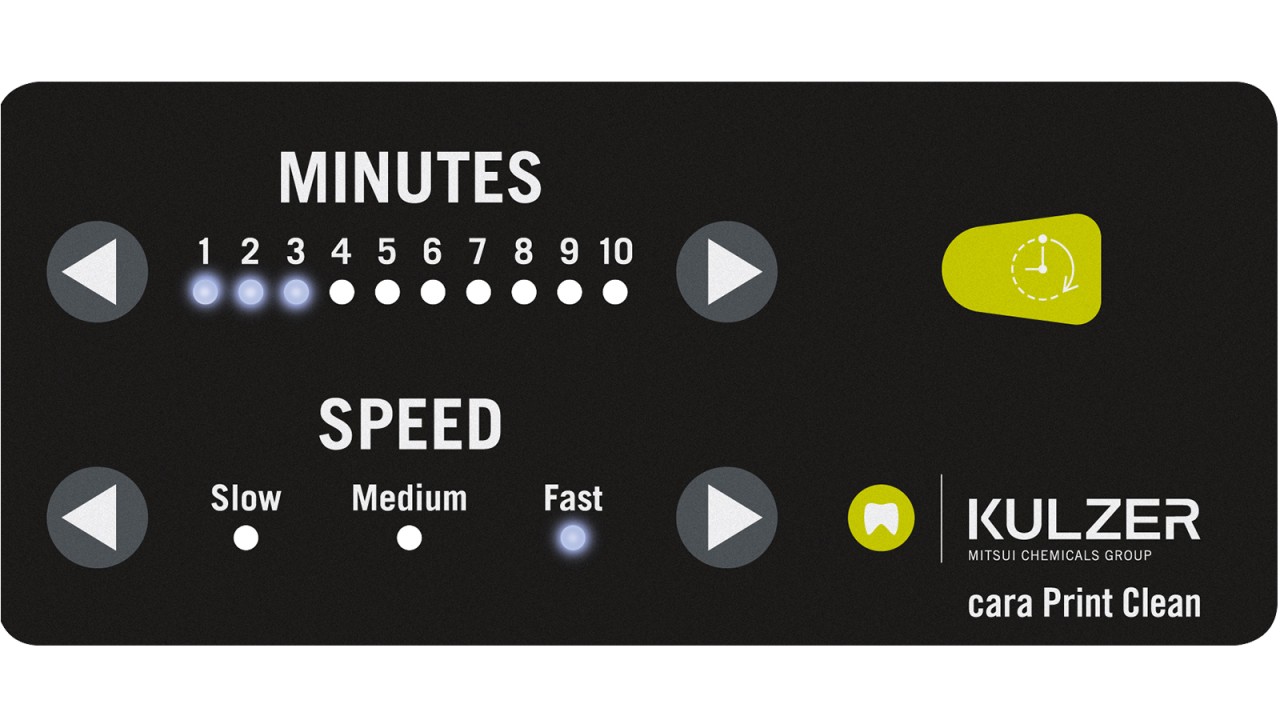

Cleaning technique Magnetic stirrer (speed: slow, medium & fast) and circuit pump
Cleaning time Cleaning time between 1 or 10 minutes possible; actual time needed depends on material and part geometry.
Max. size of printed parts W 12.4 x D 7.0 x H 13.0 cm
Recommended build table hanger Object height under 70 mm: use extended build table hanger
Object height over 70 mm: use short build table hanger
Scope of supply Lid
Short and extended build table hanger
Inner container & plug
Outer container
cara Print Clean Base
Power supply
Part tray
2 magnetic stir bars
3 extra foam gaskets
Extra container plug
Power supply Mains: 100 – 240 VAC, 50/60 Hz (grounded)
Warranty 1 year

Downloads

Instructions for use

Go to e-IFU Portal

Instructions for Use can be found on the Kulzer e-IFU portal.

Download selected (ZIP)

Contact

  • 3D PRINT MATERIAL

    dima® Print Splint clear

    dima® Print Splint clear

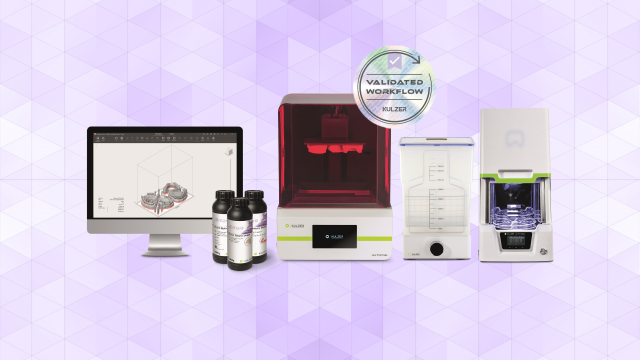

    A 3D printing process that improves the efficiency and profitability of dental labs. It ranges from indication-specific resins and a 3D printer, to hands-free part washing and light-curing.
