dima® Print C&B temp

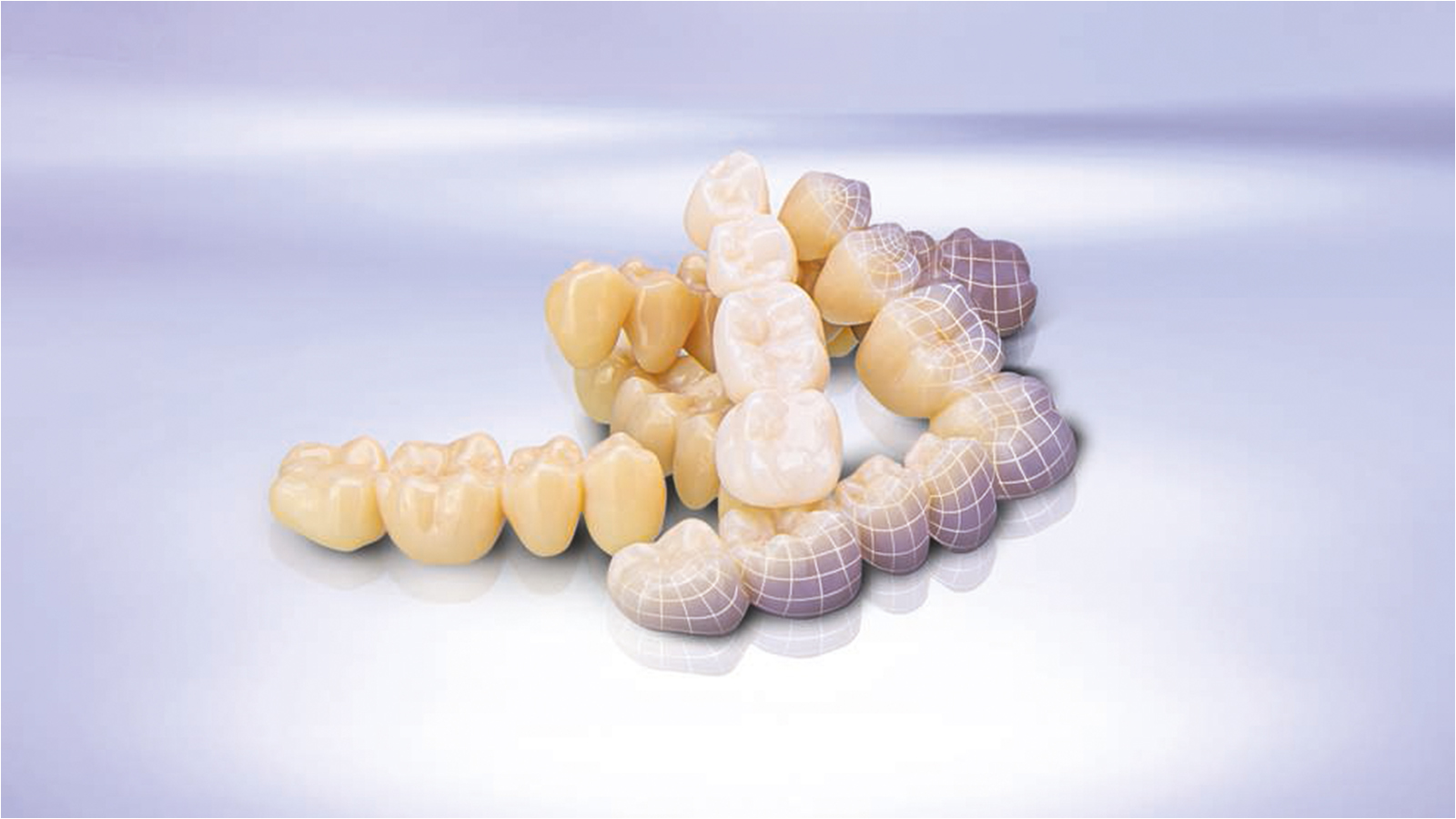

Don’t mill it, print! For faster temporaries and provisionals...
Don’t mill it, print! For faster temporaries and provisionals.
When it comes to temporaries and provisionals, 3D printing saves a significant amount of time and costs when compared to milling. But not only that: it frees up dental mills for higher value jobs that are not possible on a 3D printer (e.g. zirconia). dima Print C&B temp is a Class IIa material that can be used to produce short-term Try-ins or longerterm temporaries (up to 1 year). Particularly for in-house technicians, 3D printing can deliver a perfectly fitting and aesthetically pleasing temporary in less than 1 hour after a patient’s teeth are prepped for a new crown or bridge.
Benefits

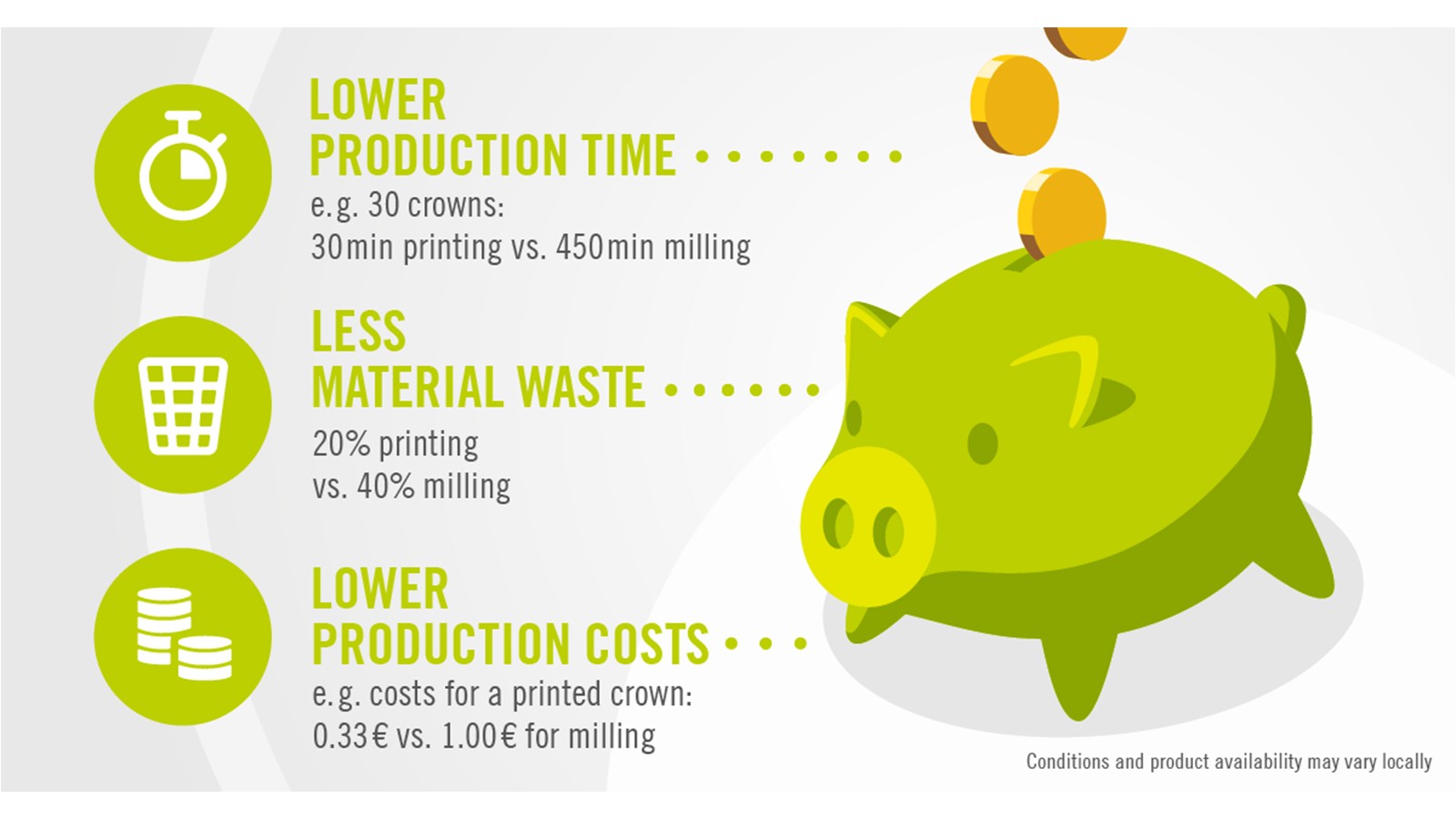

Achieve higher productivity through 3D printed temporaries and provisionals instead of milling
- Time saving: e.g. only 30 minutes to print 30 crowns vs. 450 minutes needed for milling
- Cost saving: costs for a printed crown approx. €0.33 vs. €1.00 for milling
Achieve higher profitability and increase ROI for your milling machine
- Free up milling machine capacity: save it for the fabrication of high-value products (e.g. zirconia)
- In-house labs have less time pressure: patients get printed temporaries in just under 1 hour, which means more time to prepare the permanent crown or bridge
Good to know
Indications
dima Print C&B temp is a Class IIa material that can be used to produce short-term Try-ins or longerterm temporaries (up to 1 year). The material covers exposed dentine, minimizing or completely preventing sensitivity. Furthermore, temporaries made with dima Print C&B temp serve as an excellent basis for assessing the fit, shade, shape, position of contacts and more – all before the final restoration is made. For dental technicians already using the cara Print System, dima Print C&B temp integrates perfectly into existing workflows.
- Class IIa material for short-term Try-ins or longer-term temporaries (up to 1 year)
- Up to 6-unit anterior bridges and 4-unit posterior bridges
- Easy verification of shade, shape, midlines, smile line, embrasure & position with Try-ins
- Covers exposed dentine, therefore minimizes or completely prevents sensitivity
- Available in 7 shades: A1, A2, A3, A3.5, B1, B2, BL

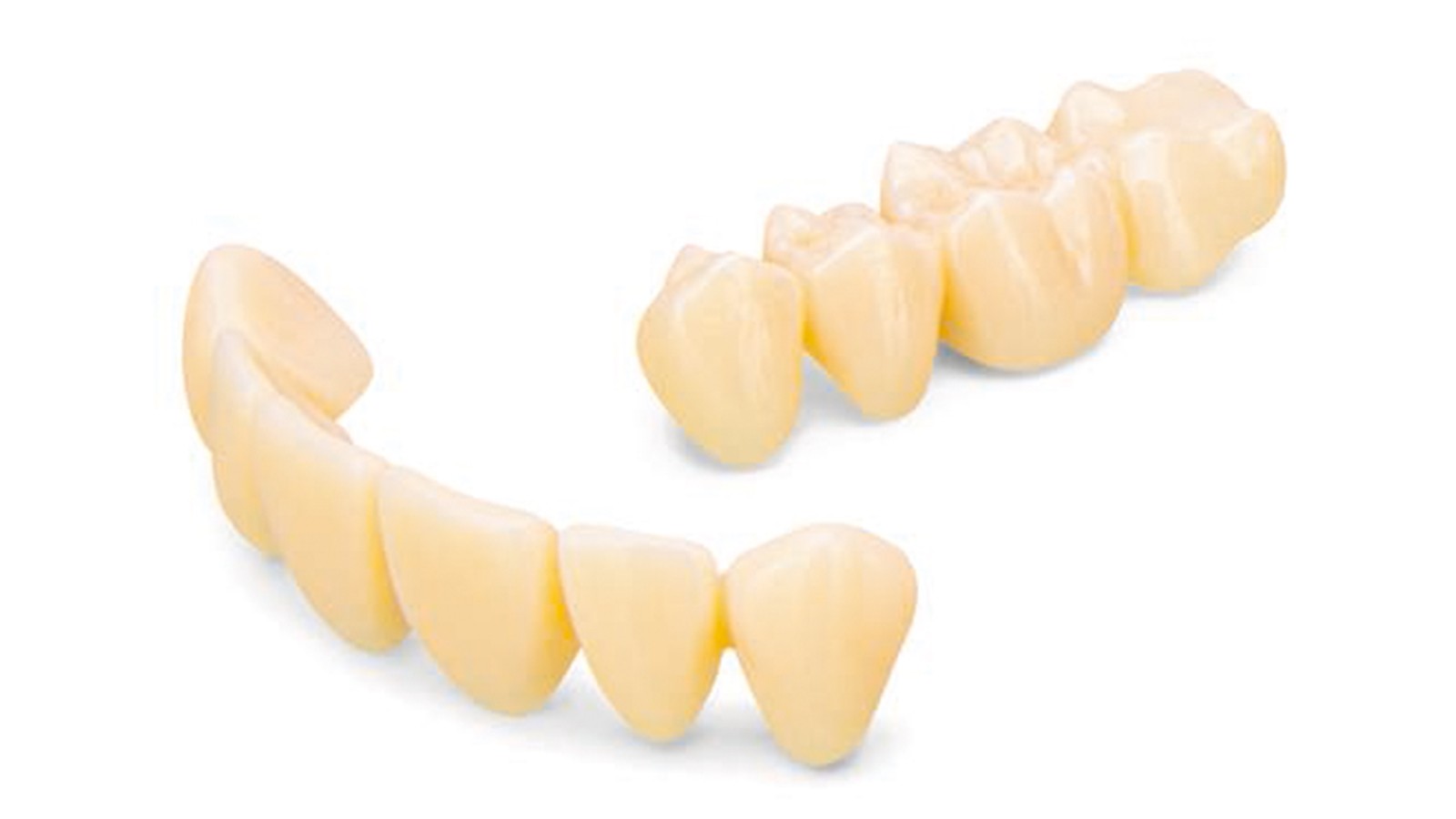

dima Print C&B temp – A1

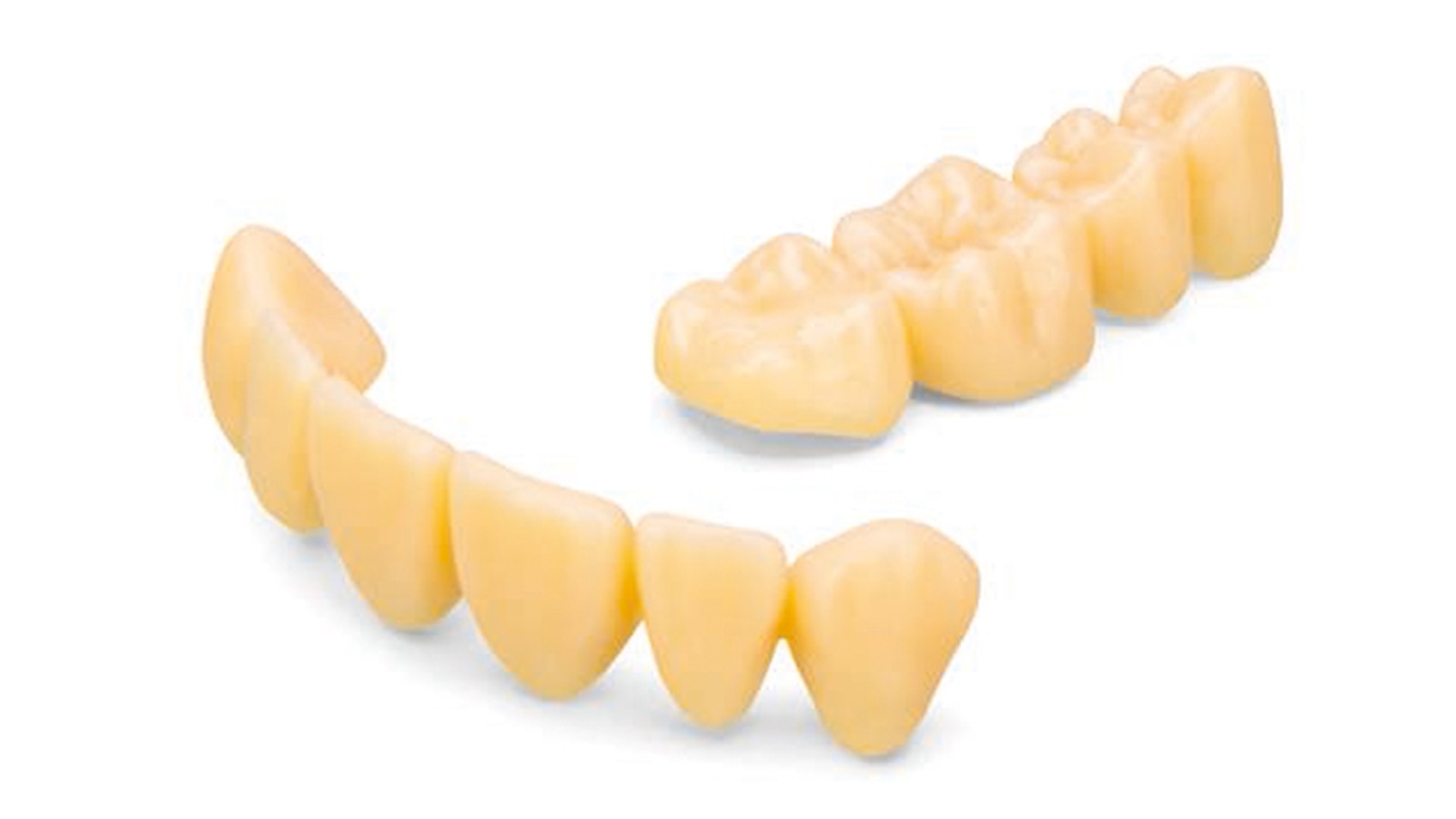

dima Print C&B temp – A2

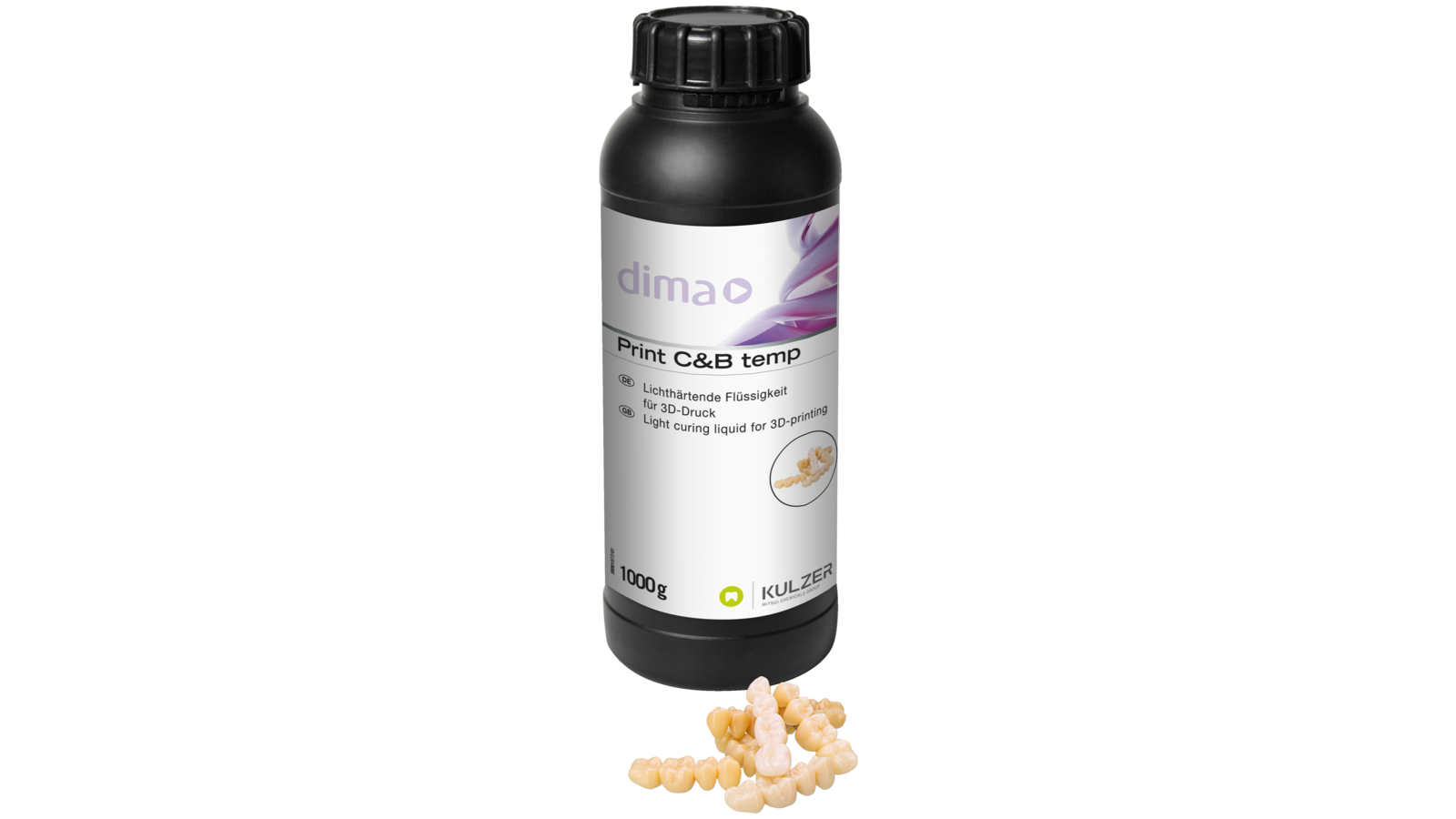

dima Print C&B temp (1000g)

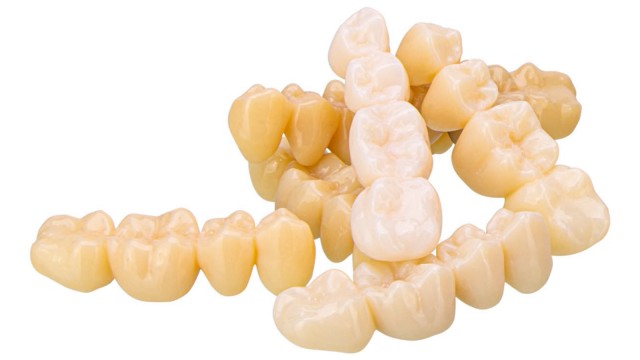

Benefits for 3D printed crowns & bridges
References
“So far, it’s the best material I’ve tested on the market. The outcome, the colour, helps us to implement the digital workflow. By 3D-printing provisionals, I can now cater to the needs of my customers – dentists and patients – much more quickly, because the system can deliver highly aesthetic provisionals in mere minutes.”
Thomas Backscheider is a dental technician with a laboratory in Pirmasens, Germany.
He is active as a trainer and lecturer, and specialises in achieving high aesthetics for anterior teeth using ceramics and composites. Lately, he has been testing out dima Print C&B temp at his lab.
Specifications
| Printing performance overview | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Example | Build height [mm] | Time [min] for 50 µm resolution | Time [min] for 100 µm resolution | Material consumption [g] | Avg. material costs | Avg. material costs/part | ||||||||
| One crown | 15 | 27 | 15 |
0,82g with supports, uncleaned (0,64g with supports, cleaned) |
0,33€ | 0,33€ | ||||||||
| 30 crowns | 15 | 30 | 20 | 24,6g (with supports, uncleaned) | 9,90€ | 0,33€ | ||||||||
| One bridge [3 units] | 17 | 28 | 16 |
2,43g with supports, uncleaned (2,16g with supports, cleaned) |
0,97€ | 0,97€ | ||||||||
| Product overview | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flexural Strength (Mpa) | Flexual Modulus (Mpa) |
Cleaning time in Isopropanol (cara Print Clean or ultra sonic bath) |
Post-curing time (HiLite Power 3D) |
Post-Curing time LEDcure (no turning of object necessary) |
||||||||||
| > 50 | > 2000 |
pre-cleaning: 3 minutes post-cleaning: 2 minutes |
20 minutes (10 minutes front side +10 minutes reverse side) in Glycerin |
C&B Temp program, cure in Glycerin |
||||||||||
