3Shape Lab Scanners

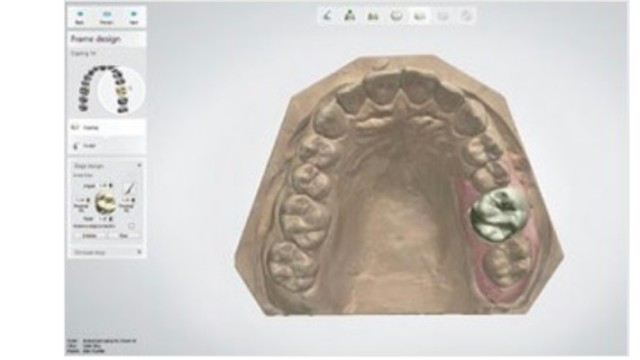

Building a Dental System for your Dental Lab
3Shape’s vision is to make daily work life in the dental lab easier, more efficient and to reduce costs.
But in order to get the most out of 3Shape’s solutions, it is important to understand how a digital dental CAD/CAM solution works and how that solution can be customized according to each customer’s individual needs.
Getting started
To get started the lab has to make three simple choices:
1. Choose a scanner:
E1, E2, E3, E4 or D2000
Based on parameters such as speed, accuracy, texture and cost. Please look at scanners for detailed specifications.
2. Choose a software package:
Crown & Bridge, Premium, Removable.
Based on the number of advanced cases. Please look at the software packages for details on the packages.
3. Choose a LabCare model:
LabCare or Basic Package
Based on your need for software upgrades, support and training.
Please look at models for detailed information.
Scanner Specifications

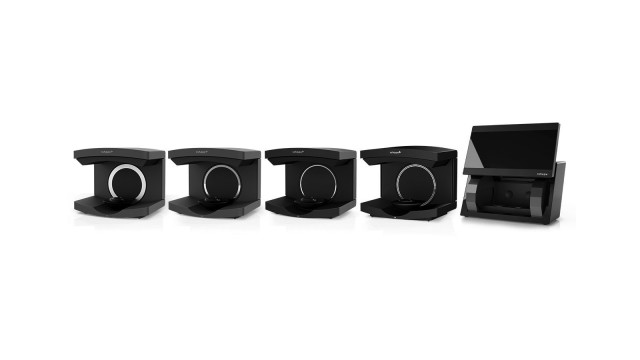

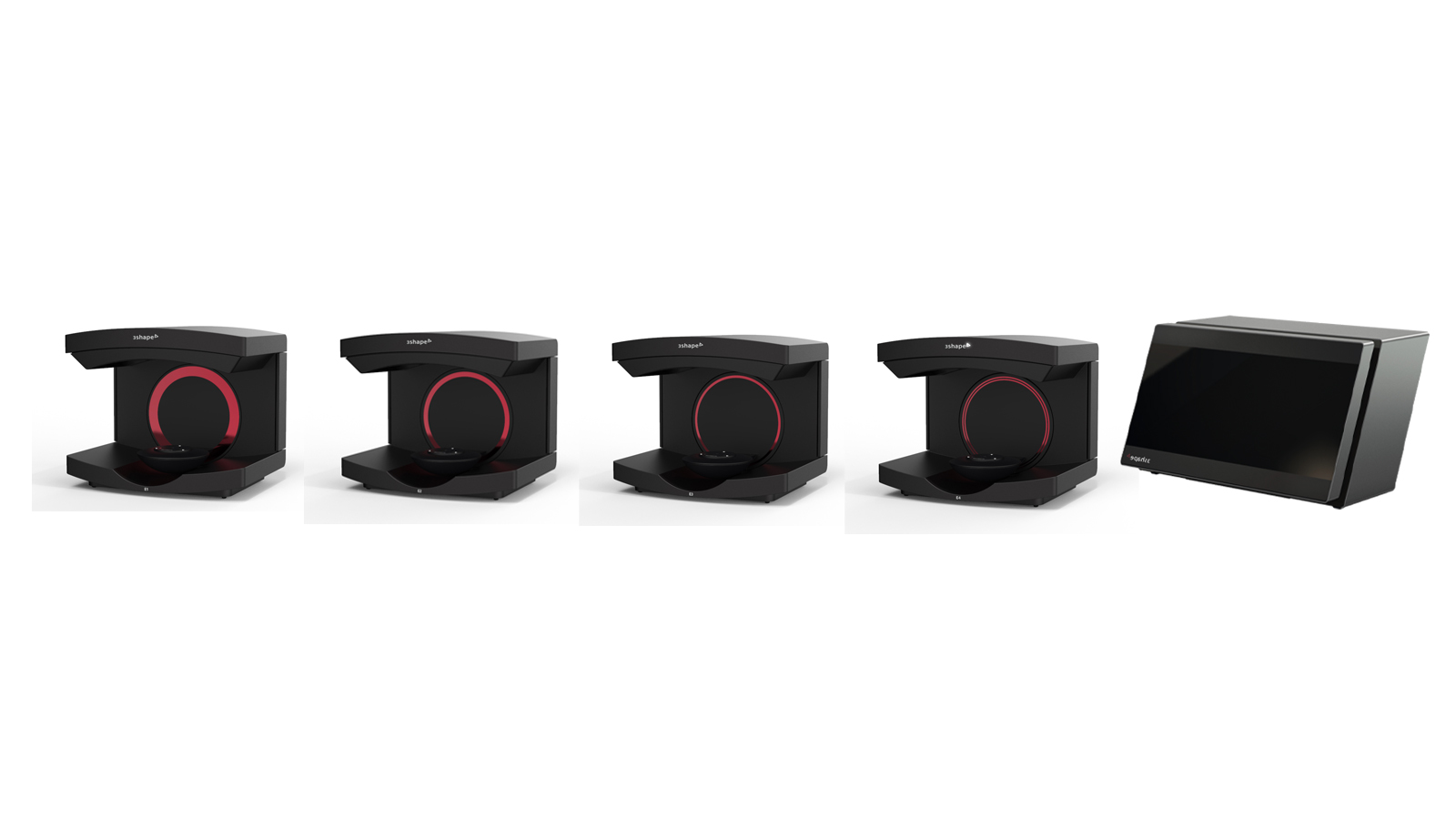

3Shape lab scanners for every need
With the addition of the E1, E2 and E3 scanners to the E4 and D2000 3Shape can offer the widest selection of scanners for the Dental Labs. From the small and price sensitive labs that are just going digital to the large labs that perform hundreds of indication every day we have the solution to match.
3Shape scanner E1
Essential scanning to digitize your lab
- 2 x 5 MP cameras, Blue LED Multiline
- Accuracy (ISO 12836 / implant): 10 µm/12 µm
- Scan speed (arch): 32sec
- Scan Speed (full arch impression): 104 sec.
- Texture: n/a

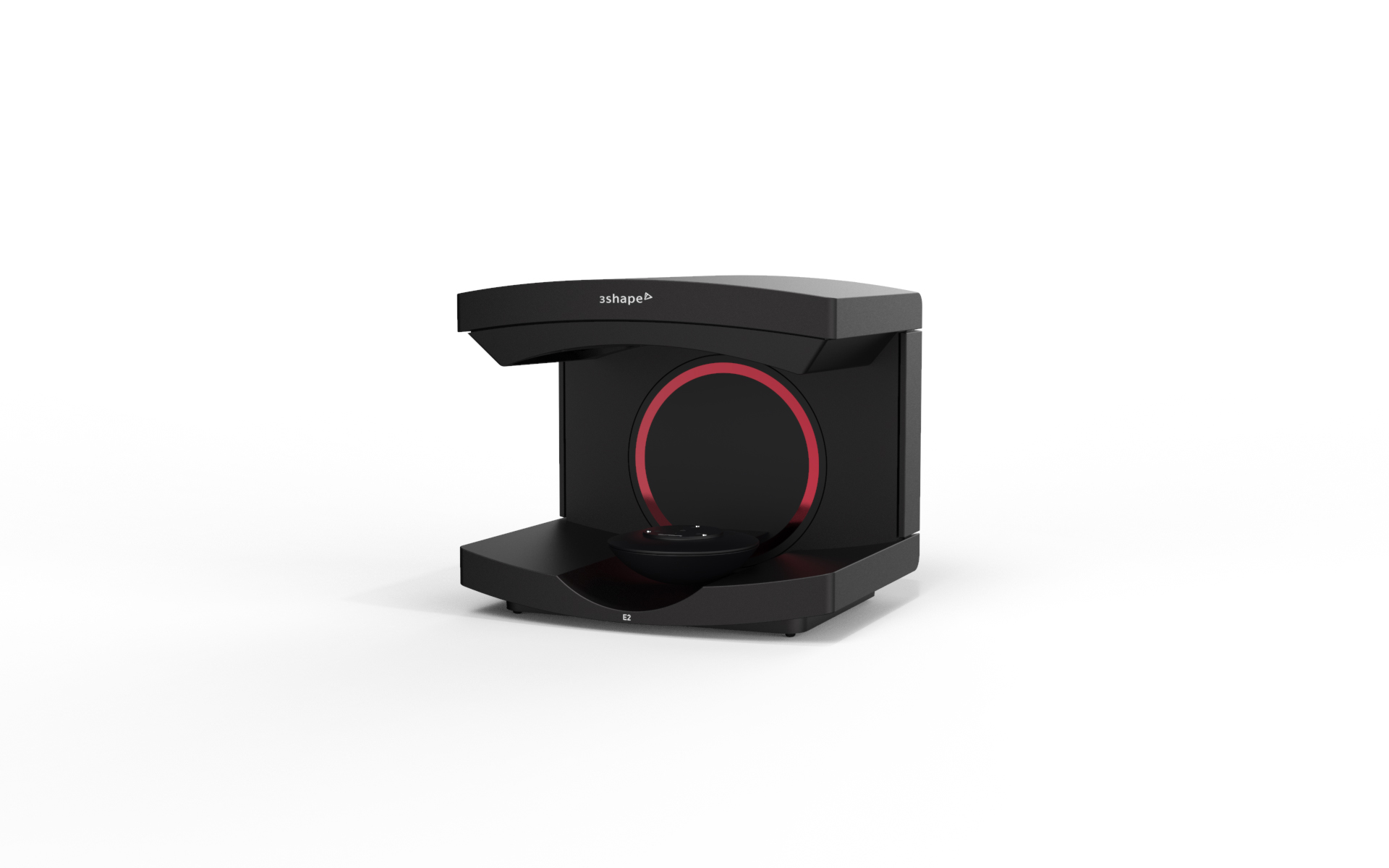

3Shape scanner E2
Increase productivity and texture scanning
- 2 x 5 MP cameras, Blue LED Multiline
- Accuracy (ISO 12836 / implant): 10 µm/12 µm
- Scan speed (arch) : 24sec
- Scan speed (full arch impression): 72sec
- Texture: B&W
3Shape scanner E3
High performance and implant bar accuracy
- 2 x 5 MP cameras, Blue LED Multiline
- Accuracy (ISO 12836/study model): 7 µm/10 µm
- Scan speed (arch): 18 sec
- Scan speed (full arch impression): 64 sec
- Texture: Color
3Shape scanner E4
Ultra-high productivity and die-in-model scanning
- 4 x 5 MP cameras, Blue LED Multiline
- Accuracy (ISO 12836 / implant): 5 µm/8 µm
- Scan speed (arch): 9 sec
- Scan speed (die): 15 sec
- Scan speed (full arch impression): 45 sec
- Texture: Color
- Scanning Strategy: Die in model

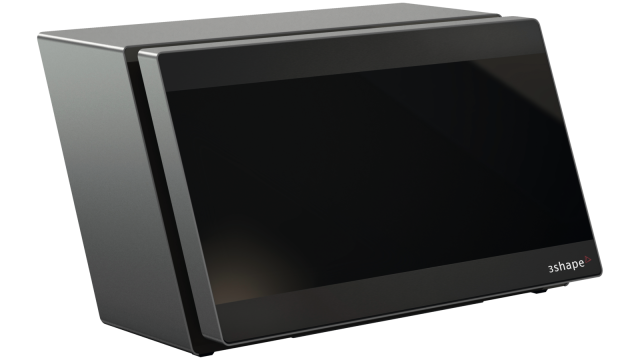

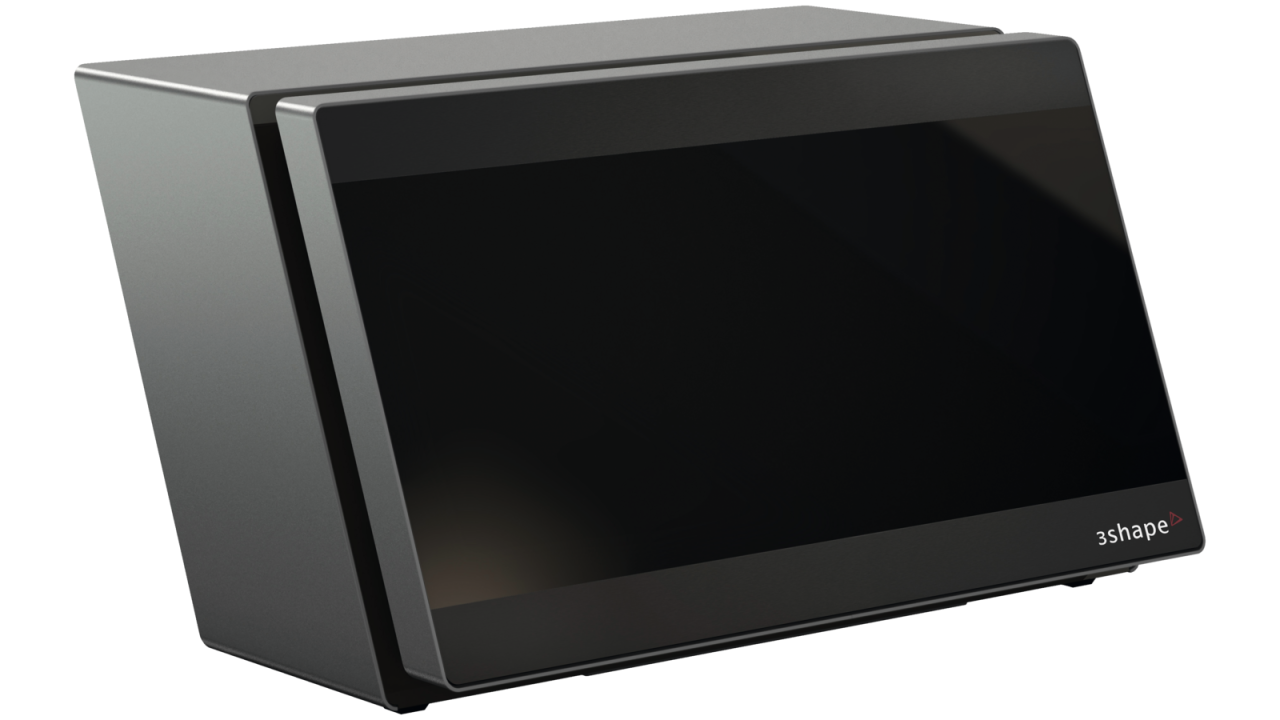

3Shape scanner D2000
All-in-one scanning for max volume throughput
- 4 x 5 MP cameras, Blue LED Multiline
- Accuracy (ISO 12836/study model): 5 µm/8 µm
- Scan speed (arch): 16 sec
- Scan speed (die): 15 sec
- Scan speed (full arch impression): 60 sec
- Texture: Color
- Scanning Strategy: All in one

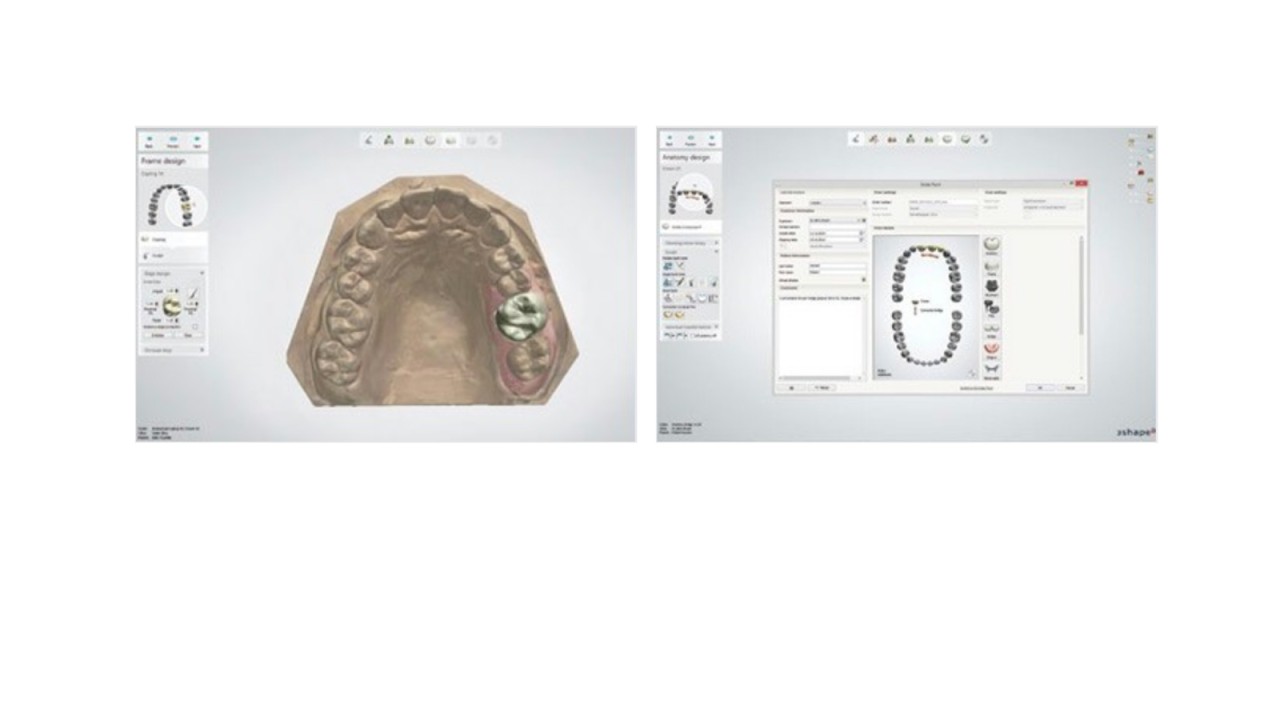

System Requirements for 3Shape Dental System
| Item | Minimum Requirements* | Recommended | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating System |
Windows 8 Home (64-bit) Windows 8.1 Home (64-bit) Windows 10 Home (64-bit) Windows 7 Pro (32-bit) |
Windows 7 Pro (64-bit) Windows 8 Pro (64-bit) Windows 8.1 Pro (64-bit) Windows 10 Pro (64-bit) |
||||||||||||
| Memory (RAM) | 8GB | 16GB (32GB**) | ||||||||||||
| Video Card | 250GB | 500GB (1TB***) | ||||||||||||
| Available HDD Space | Minimum of 20GB of free disk space | |||||||||||||
| Processor | Intel Core i5 | Intel Core i7 or equivalent | ||||||||||||
| 3D Mouse | 3DConnexion SpaceMouse™ Pro | |||||||||||||
| Monitor Resolution |
1920 x 1080 1920 x 1200 |
|||||||||||||
| Network | Internet connection | |||||||||||||
| USB Ports | USB 2.0 for 3Shape desktop scanner**** | |||||||||||||
| Mouse | Mouse with wheel button support | |||||||||||||
|
* If you are planning to use Implant Studio® integrated with Dental System, please check the system requirements for Implant Studio® in the corresponding user manual. ** For simultaneous scanning and modelling of large cases, we recommend 32GB RAM. *** We recommend 1TB Hard Drive if used as a stand-alone system or a server with the order folder. **** D250 scanners require serial port. For D250 scanners, 3Shape supports only PCs purchased from 3Shape as very few PCs are compatible. |
||||||||||||||
Software Packages
A Software package for every need
The new Crown & Bridge package has been designed to solve the majority of the cases for the labs. If you are just going digital or need extra capacity for your lab this is the obvious package. For both Crown & Bridge and Premium you have a long list of potential Add-On Modules for more advanced cases or you can pay-per-design using CAD Points. Further information to the 3Shape Software packages you can find here.
Service Models
A LabCare model for any lab
To ensure that 3Shape has a solution for all labs we have decided to widen our offering around LabCare to now include two models. For the new scanners E1, E2 and E3 LabCare is optional and for D1000 and D2000 LabCare is mandatory.
| LabCare models |
3Shape LabCare The comprehensive service package that keeps you ahead and constantly productive |
Basic package Limited services with no subscription payment for the cost-concience lab |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Software upgrades New software releases with latest developments including libraries |
All | Patches only | ||||||||||||
|
Global Support Authorized experts help you in your local language and time-zone. |
Yes | Pay per call | ||||||||||||
|
Training & events Comprehensive user events and trainings by leading dental technicians & 3Shape experts |
Yes | |||||||||||||
|
Special discounts Save money on additional scanners and software. |
Up to 25% | |||||||||||||
|
Availability The packages are available with the following scanners |
All scanners | E1, E2 & E3 | ||||||||||||
|
NEW LabCare Warranty and scanner Replacement Service (add-on) |
With LabCare | With Basic Package | ||||||||||||
| Scanner repair and scanner replacement to avoid downtime | Up to 5 years |
Add-on not available 1 year (No replacement) |
||||||||||||
LabCare Terms and conditions
When signing up for LabCare at time of scanner purchase the lab gets the first year subscription for free.
With E1, E2 and E3 the Lab has the option to discontinue LabCare by paying a service charge.
If an E scanner lab discontinues LabCare they also forefeit the LabCare Warranty & Replacement service.
If a lab wants to sign up for LabCare later they can do this by paying a service charge plus paying for the subscription.
Existing customers with D750, D850, D900L, D1000 and D2000 can also purchase Warranty & Replacement service. In countries without replacement service the lab is still able to purchase the Warranty but without the Replacement.
