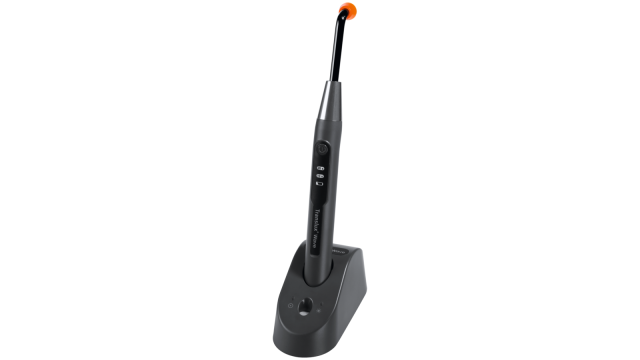

Translux® Wave
Safe and effective polymerisation.
Translux Wave is a LED curing light for the polymerisation of light curing dental materials such as adhesives and filling materials. It is developed to consistently produce high-quality and safe restorations with an optimum polymerisation depth in the 440 – 480 nm wavelength range.
Benefits
State-of-the-art LED curing light to deliver an optimum polymerisation for all commercially available camphorquinone based dental materials
- Light-weight and ergonomic pen-style design enables an effortless handling even for small hands.
- Advanced angle of the 360° rotatable light guide allows a better access to the molar regions.
- One-button operation: One convenient power/program button to choose easily between 10 and 20 seconds. LED lights indicate the program change.
- The cordless design gives you maximum freedom of movement.
- Equipped with a strong and long life Li-ion battery. It requires very little time to recharge and can be exchanged quickly and easily without tools.
- The built-in radiometer ensures the performance you need for the perfect restoration.
Good to know
Applications
For your convenience

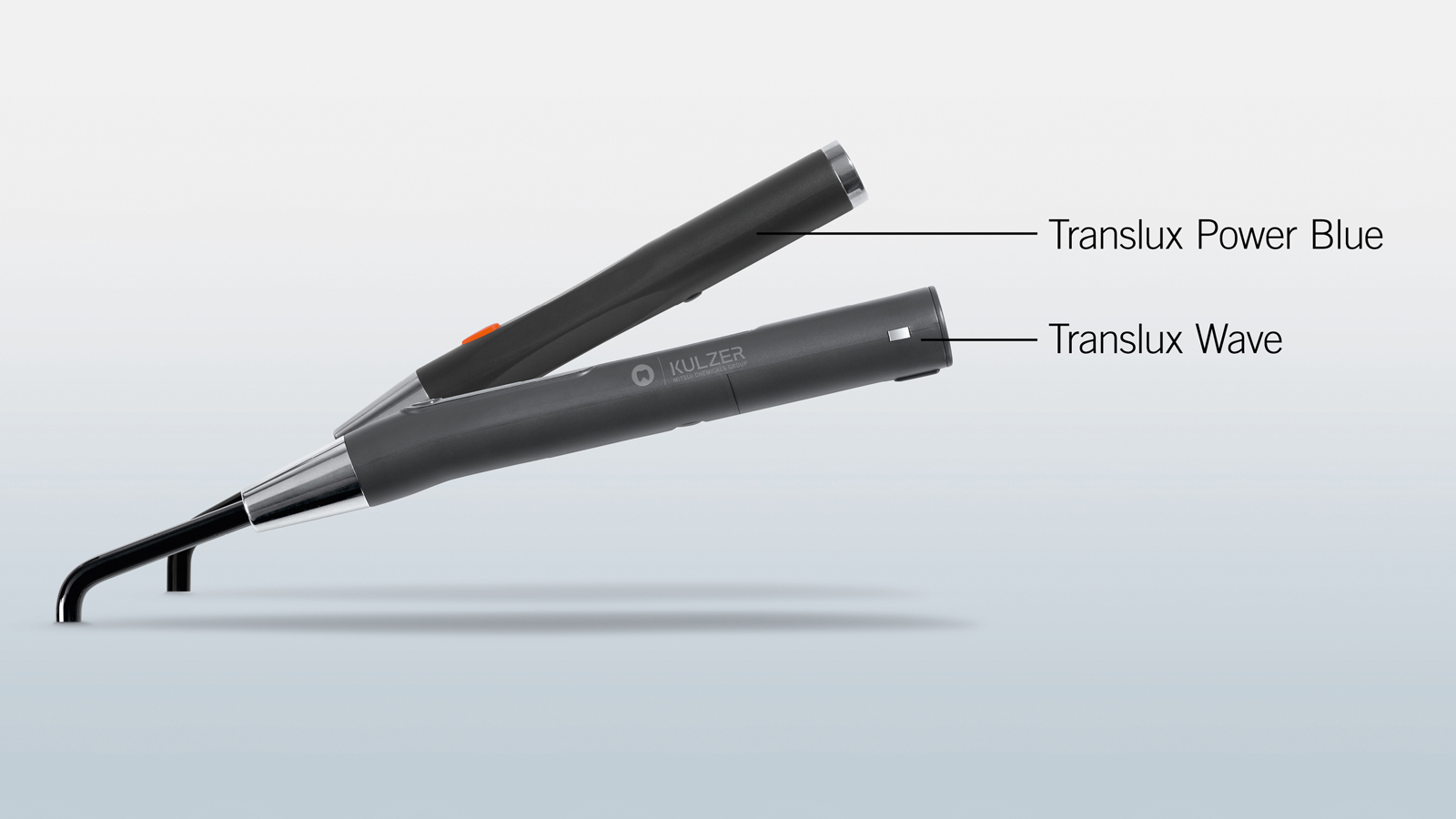

With its shorter and 70° angled fibre light guide, the Translux Wave allows easy access to molars even for patients with limited mouth-opening abilities.
For your efficiency

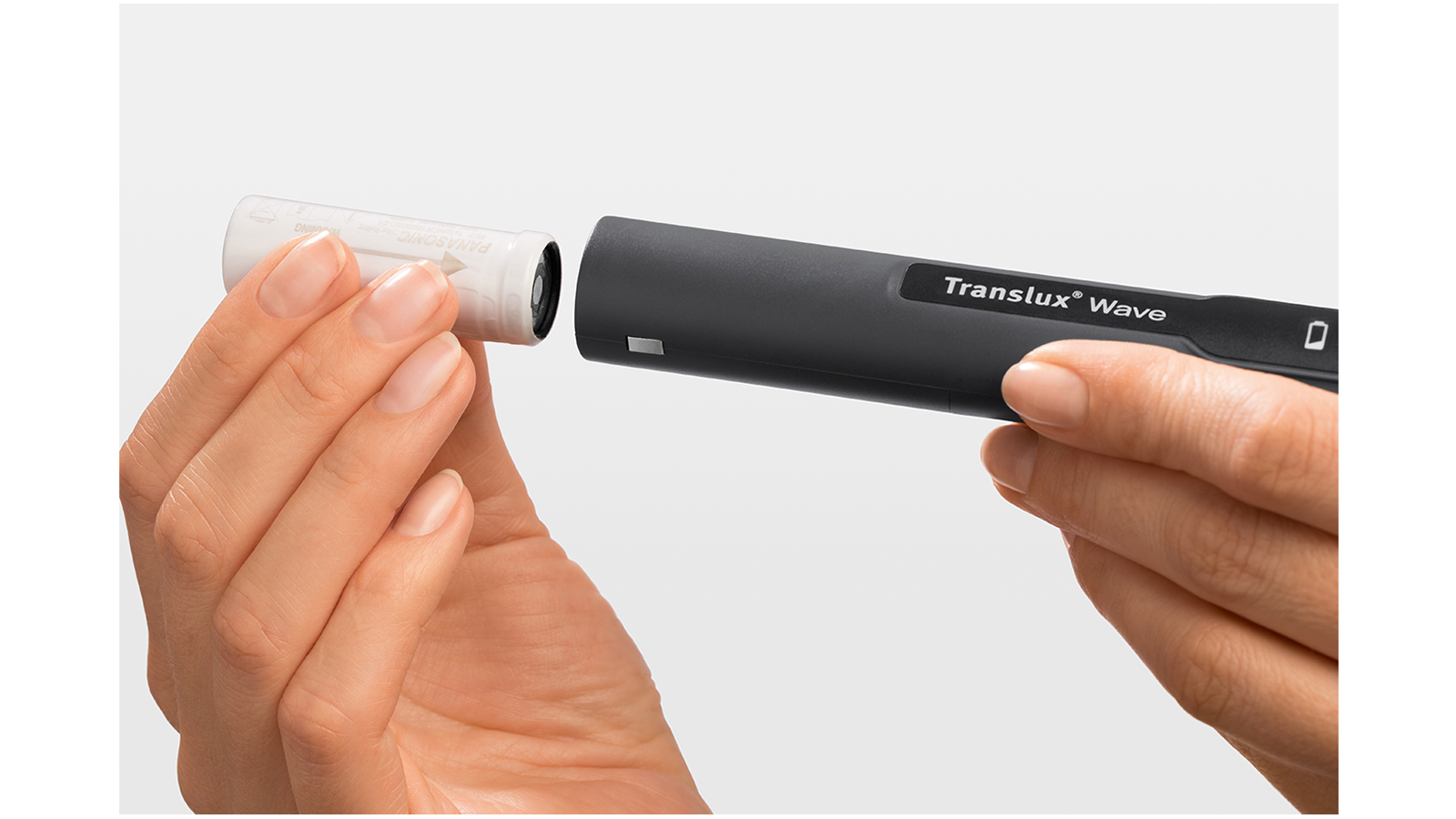

The battery of the handpiece and the contacts of the charging unit can be easily replaced by yourself. That will save time and the service technician.
Technical Specifications
| Technical data Translux Wave | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Density | > 1,200 mW/cm² (Cure Rite) | |||||||||||||
| Wavelength | 440 – 480 nm (narrow) | |||||||||||||
| Dimensions charging unit | L140 x W60 x H60 mm | |||||||||||||
| Dimensions hand piece | L210 mm, max. ø 23 mm | |||||||||||||
| Weight | Charging unit 437 g, Hand piece: 145 g | |||||||||||||
| Power Supply (charging unit) |
100 to 240 V(AC), 50/60 Hz, 5 W, 12 – 18 VA |
|||||||||||||
| Power Supply (hand piece) |
Rechargeable Lithium-ion battery 3.6 V/2000 mAh |
|||||||||||||
| Light Source | High-luminosity mono-die LED | |||||||||||||
| Light guide | ø 8 mm, 70° | |||||||||||||

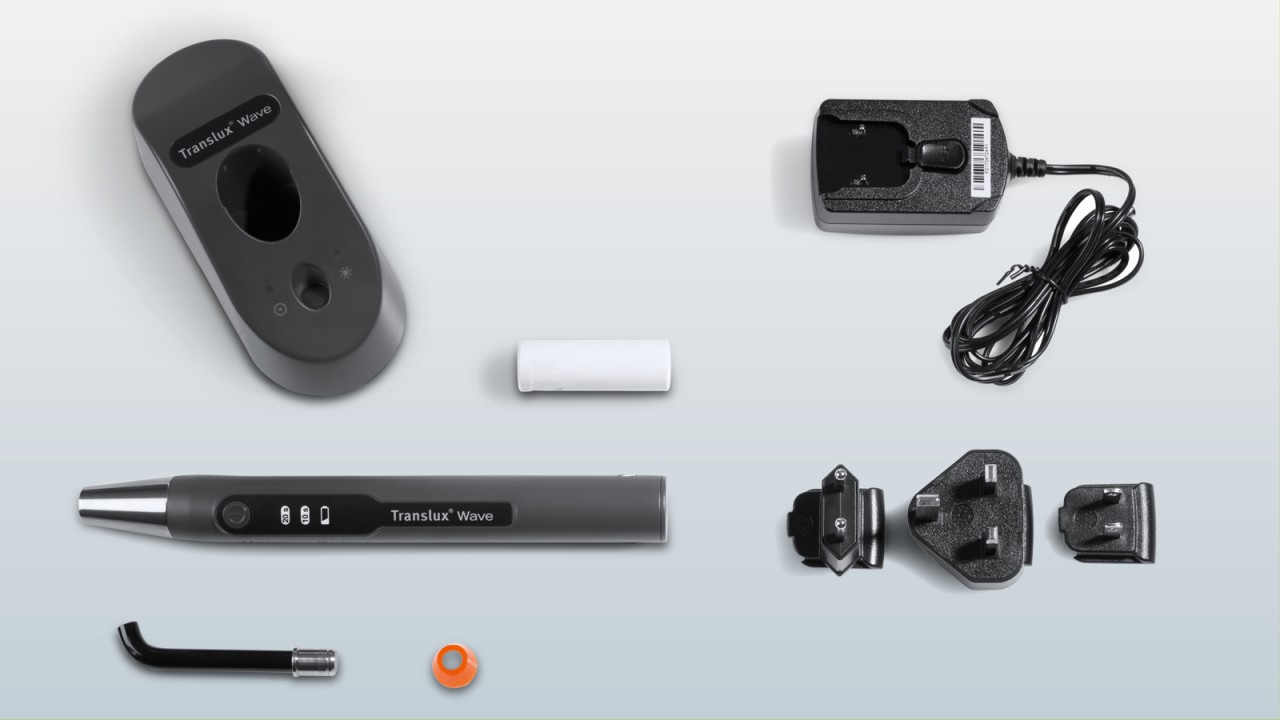

Scope of Translux Wave supply
- Charger
- Handpiece
- Light guide, Ø = 8 mm
- Glare shield cone
- Lithium ion battery
- Universal input power supply (100 V – 240 V) including international mains socket adaptors:
- 6a = Europe type 1
- 6b = UK type 2
- 6c = US / JP type 3 (EU, US/JP, UK)
Order information
| Product | Art.-No. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Translux Wave Handpiece, 8 mm light guide, glare shield, charging unit, power supply |
66055012 | |||||||||||||
| Accessoires | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Light guide, 8 mm, 70° | 66057365 | |||||||||||||
| Rechargeable battery | 66057363 | |||||||||||||
| Glare shield, orange | 66016455 | |||||||||||||
| Replacement contacts for charger | 66057382 | |||||||||||||
| Hand Piece incl. battery | 66057383 | |||||||||||||
| Charging unit grey | 66057384 | |||||||||||||
| Power supply | 66057468 | |||||||||||||
