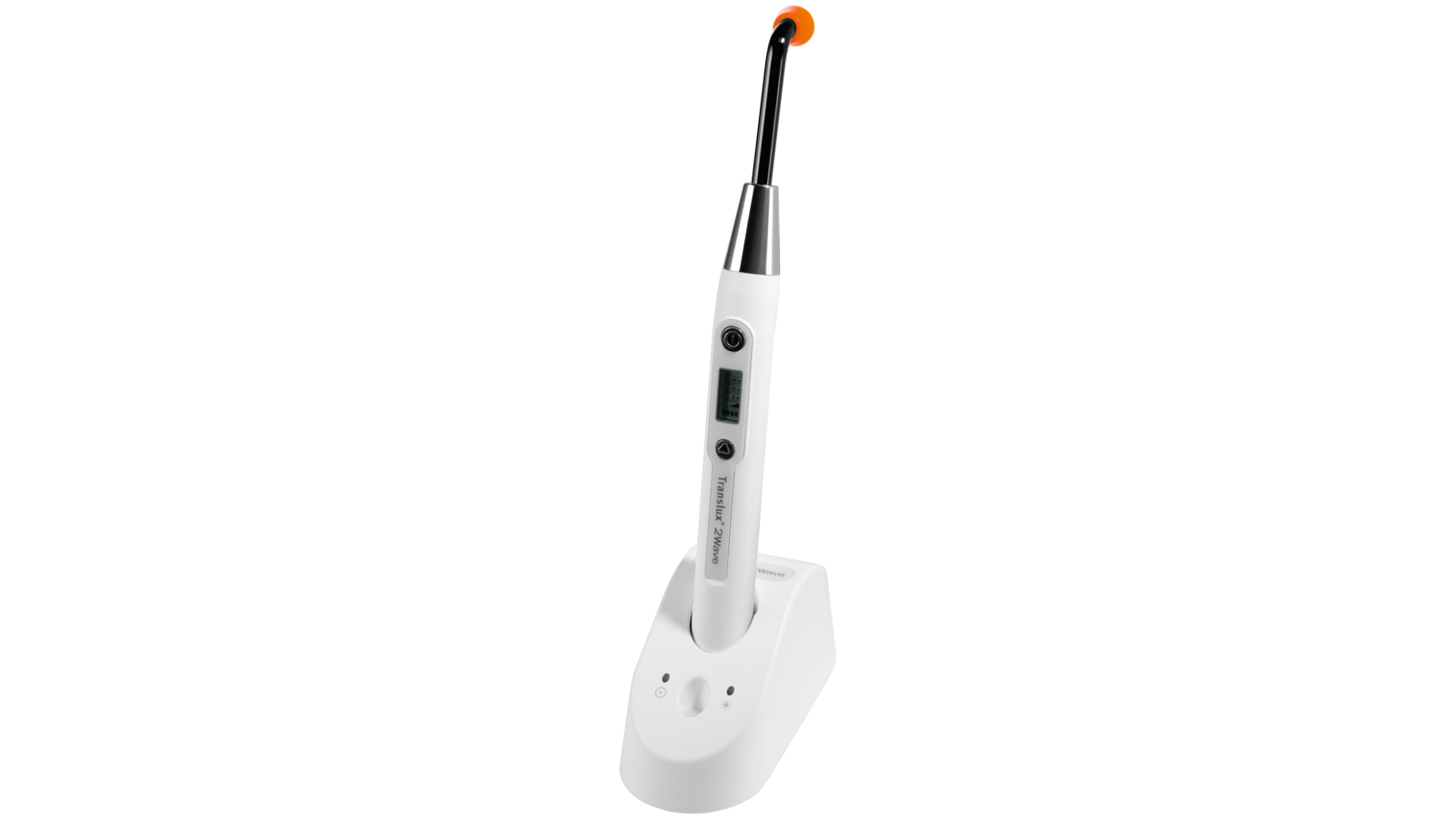

Translux® 2Wave
Translux® 2Wave

Translux® 2Wave

Made to perform.


Good to know



Technical data Translux 2Wave
Power Density > 1,400 mW/cm² (Cure Rite)

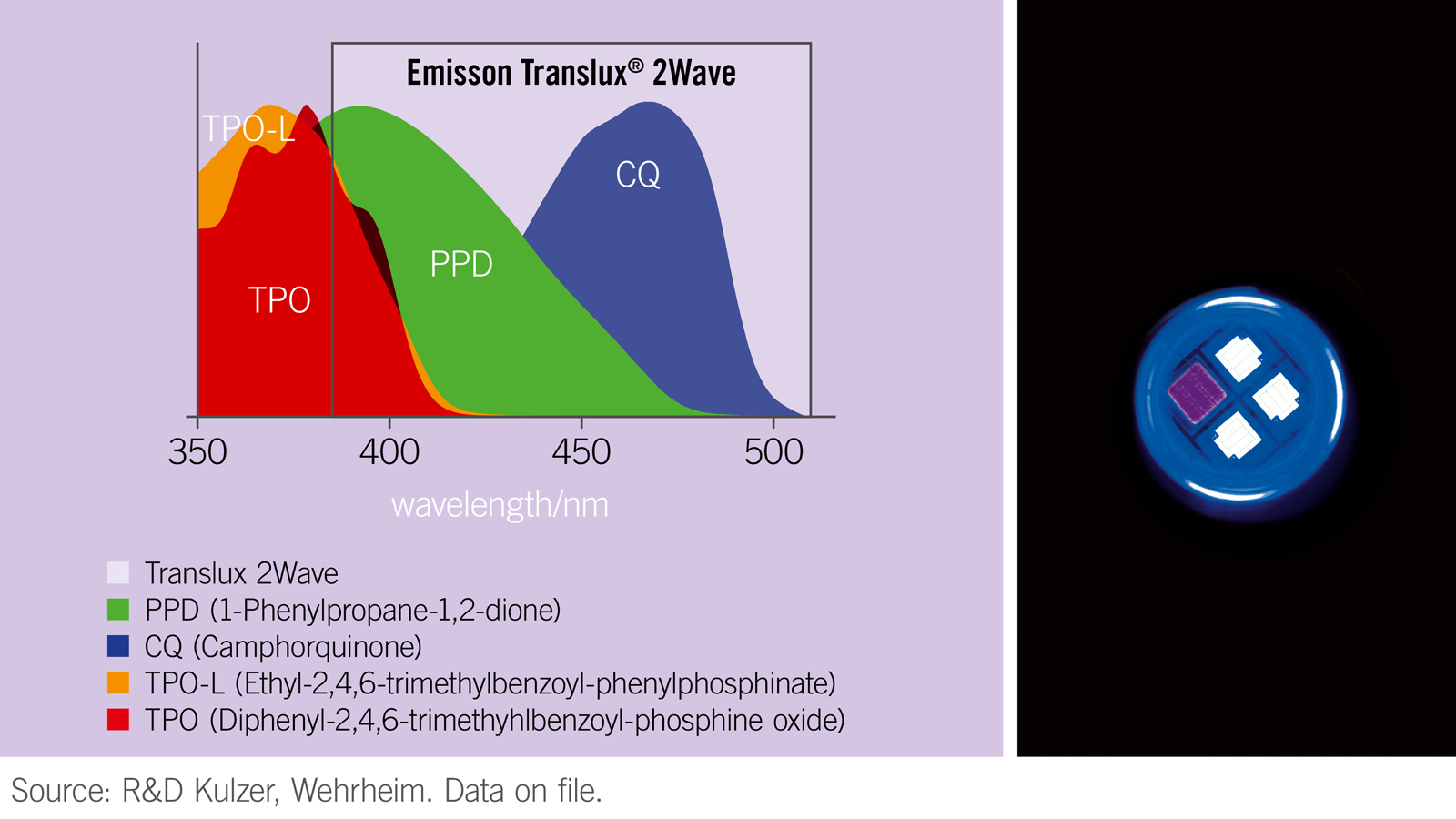

Wavelength 385 – 510 nm (broad)
Dimensions charging unit L140 x W60 x H60 mm
Dimensions hand piece L210 mm, ø 23 mm
Weight Charging unit 440 g, Hand piece: 150 g
Power Supply (charging unit) 100 to 240 V(AC), 50/60 Hz, 12 – 18 VA

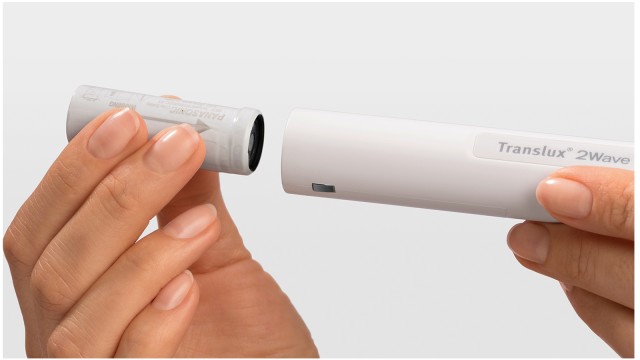

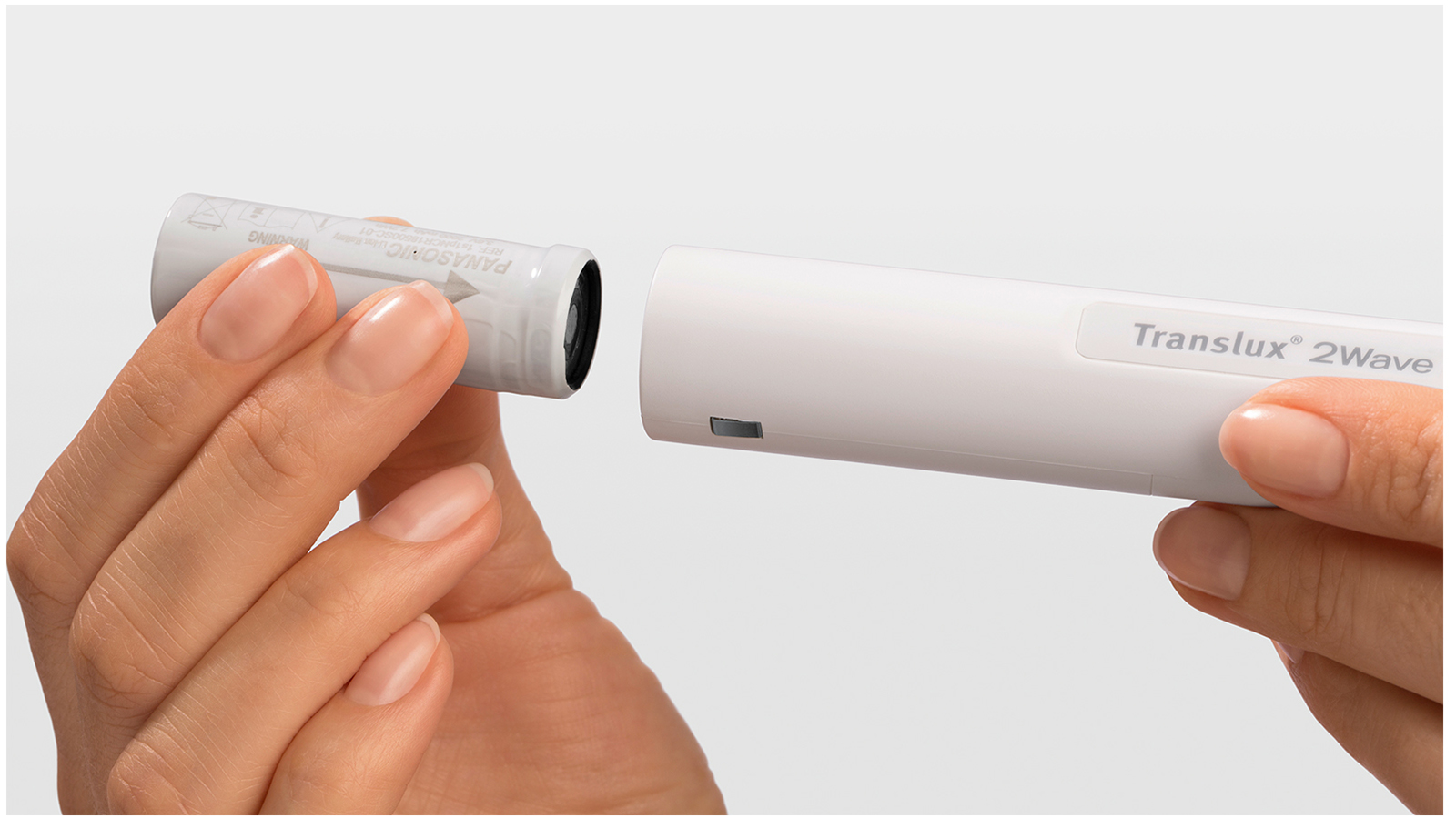

Power Supply (hand piece) Rechargeable Lithium-ion battery 3.6 V/2000 mAh
Light Source High-luminosity quad-die LED
Light guide ø 8 mm, 70°

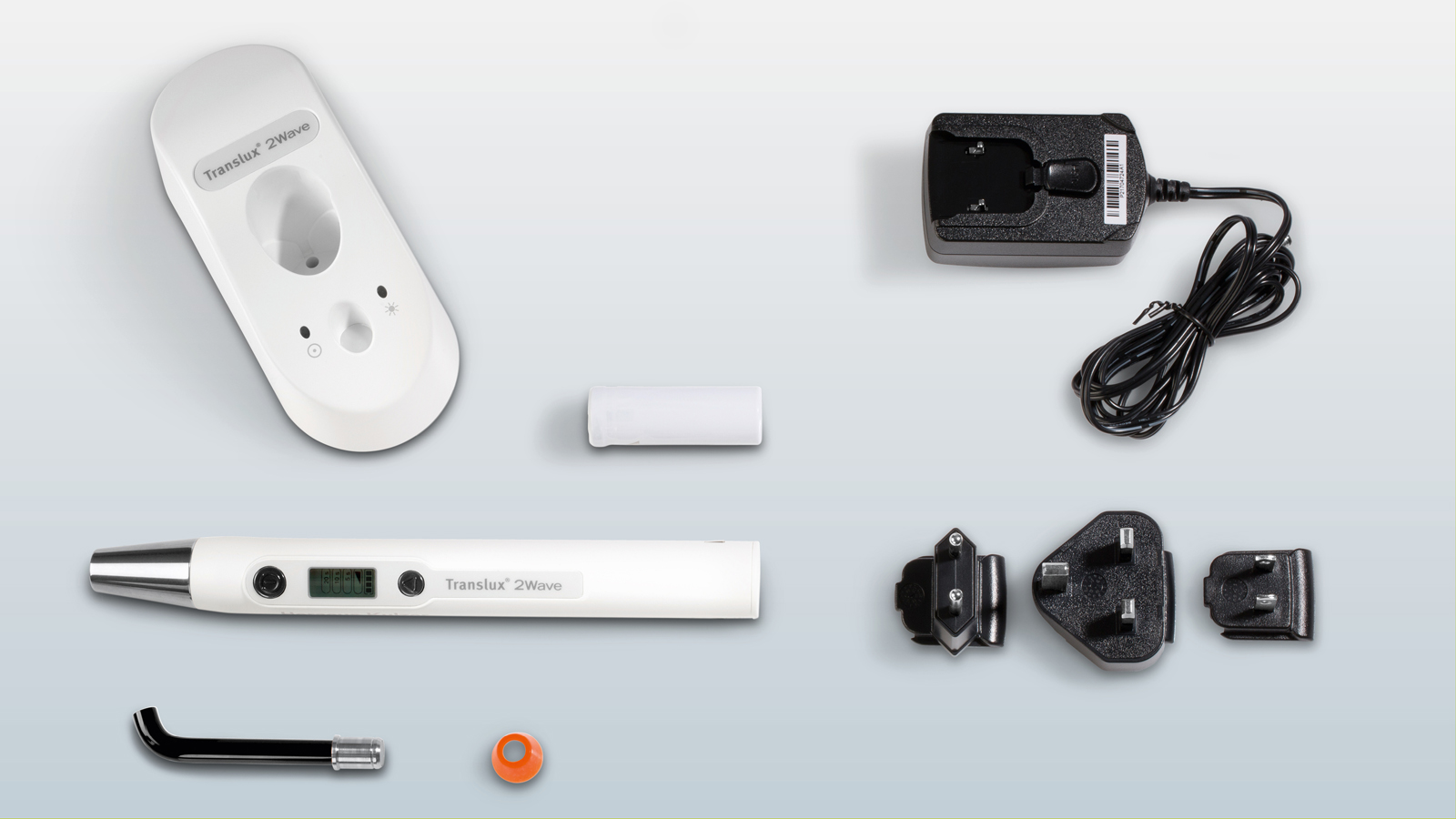

Scope of Translux 2Wave supply

Order information

Product Art-No.
Translux 2Wave
Hand piece, 8 mm light guide,
glare shield, charging unit,
power supply
Accessoires Art-No.
Light guide, 8 mm, 70°
Rechargeable battery 66057363
Glare shield, orange 66016455
Replacement contacts for charger 66057366
Hand Piece incl. battery 66057371
Charging unit white 66057372
Power supply 66057468


Instructions for use


  • Charisma® Diamond

    Charisma® Diamond

    This nano-hybrid composite expands the boundaries of aesthetics, quality and performance. Thanks to the innovative formula it provides all the exceptional properties you expect from such an aesthetic state-of-the-art composite.

  • GLUMA® Bond Universal

    GLUMA® Bond Universal

    Based on our long-term bonding expertise, we developed GLUMA Bond Universal – a universal bonding answering to all your bonding needs. It is a reliable and highly effective adhesive that ensures successful long-term restorations.

  • New

    Charisma® Diamond/Topaz ONE

    Charisma® Diamond/Topaz ONE

    Charisma Diamond/Topaz ONE Shade is a truly universal shade solution for the majority of everyday cases with enhanced mechanical properties.

  • Charisma® Classic

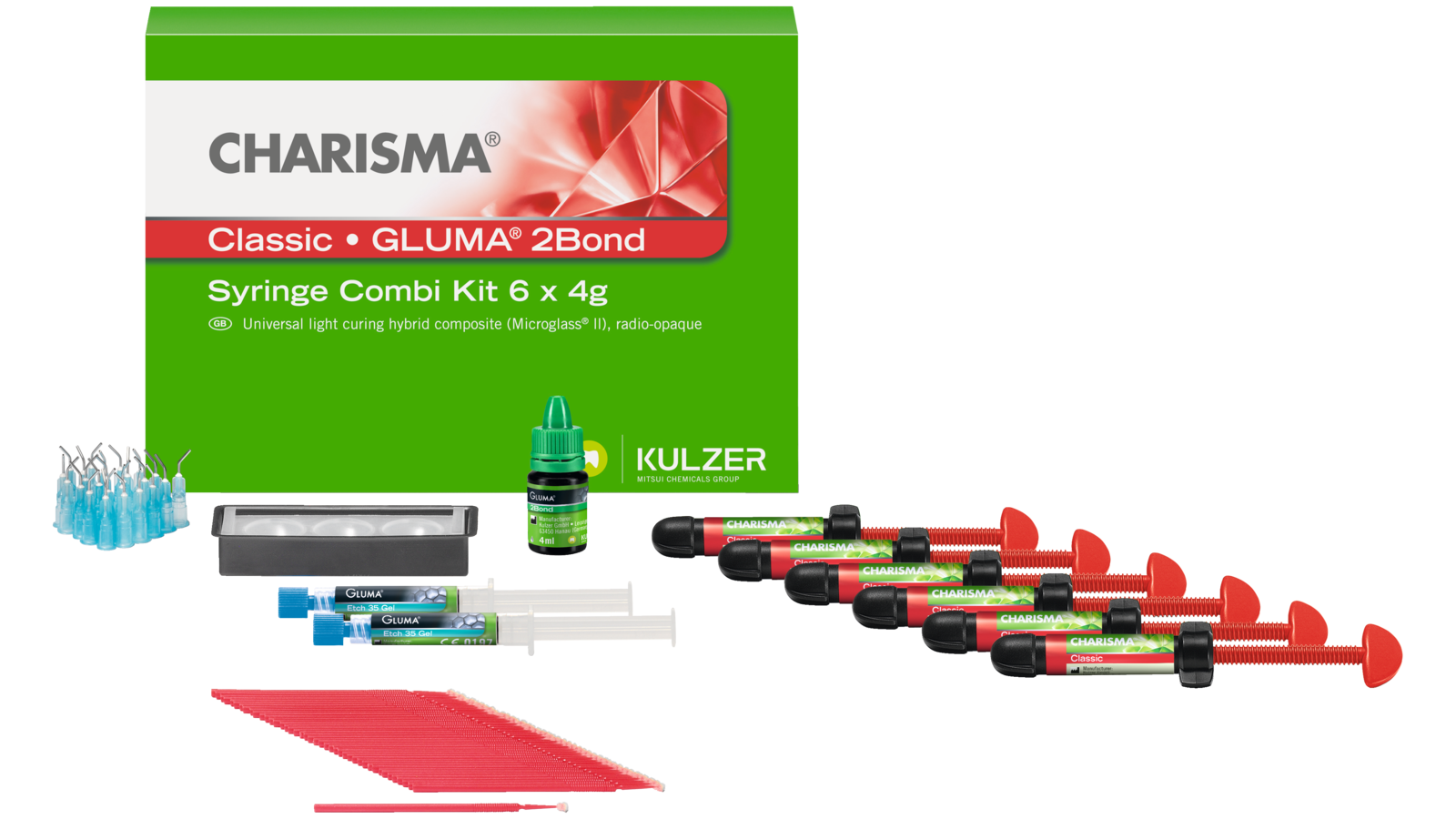

    Charisma® Classic
