The well designed PalaXpress dosing system eliminates dosing errors and ensures consistent processing properties. The result is convincing – both in simplicity of manufacture and in quality: High quality full dentures with many benefits compared to conventional systems.
Investing and boil out of the Duoflask

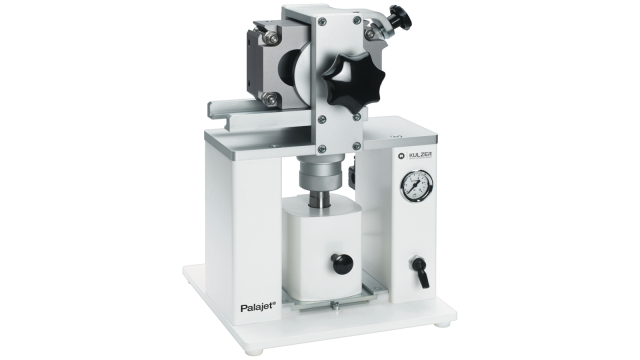

|Technical specifications for Palajet|
|Compressed air connection||5 - 10 bar|
|Rated pressure||4 bar|
|Plunger speed||0 – 50 mm/s|
|Compression force on the filling cylinder||Approx. 2kN = 200 kp (kilopound)|
|Dimensions W x H x D in mm:||290 x 400 x 265|
|Weight in kg||Approx. 13.5|
Scope of supply :

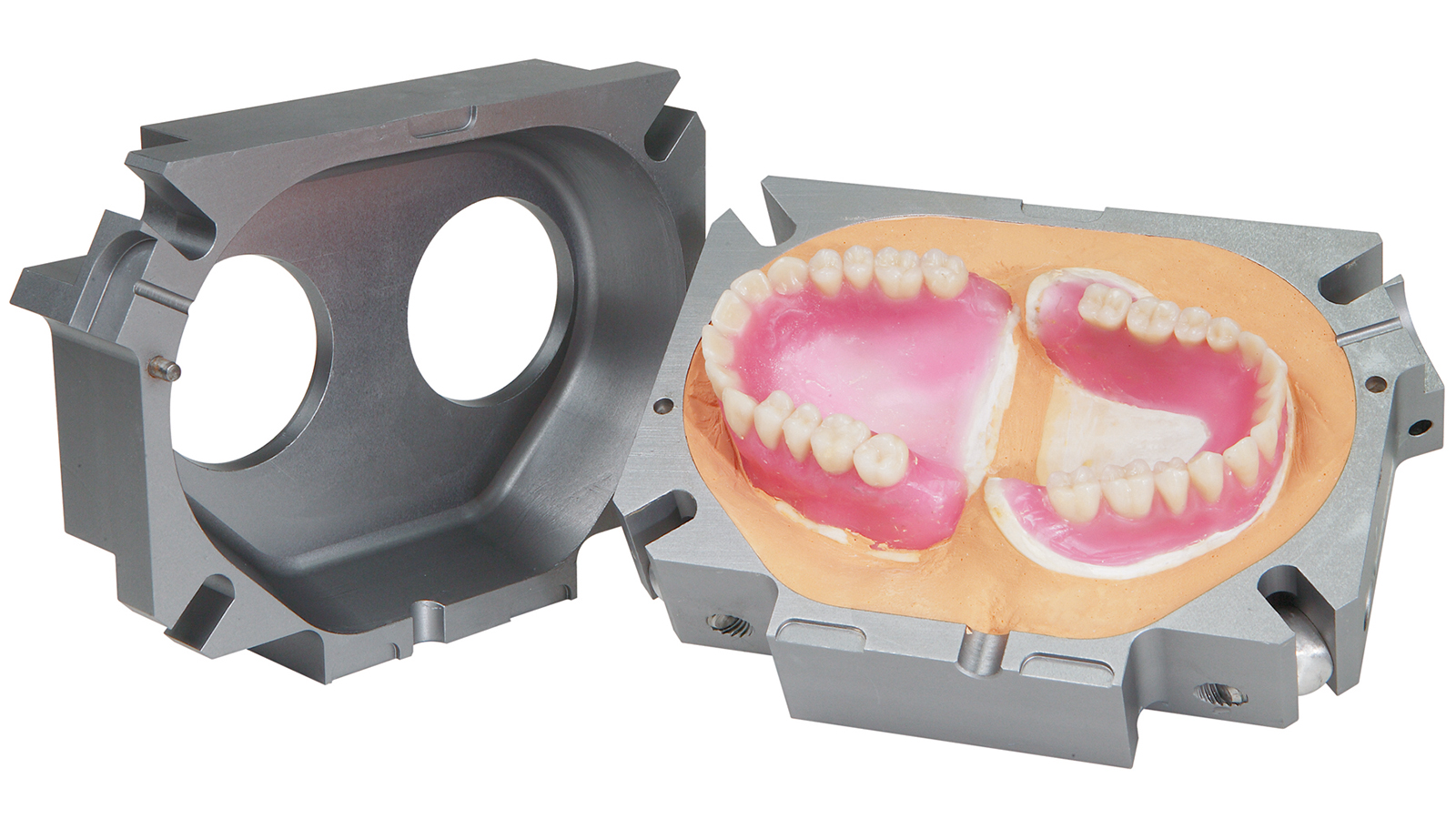

Palajet Duoflask - double flask
Preparing and polymerising two dentures in one go - this is no longer a problem with the Palajet Duoflask in combination with the Palajet injection unit.
Art. code: 6471 5798
Scope of supply: Palajet Duoflask including socket wrench and spacer, placeholder

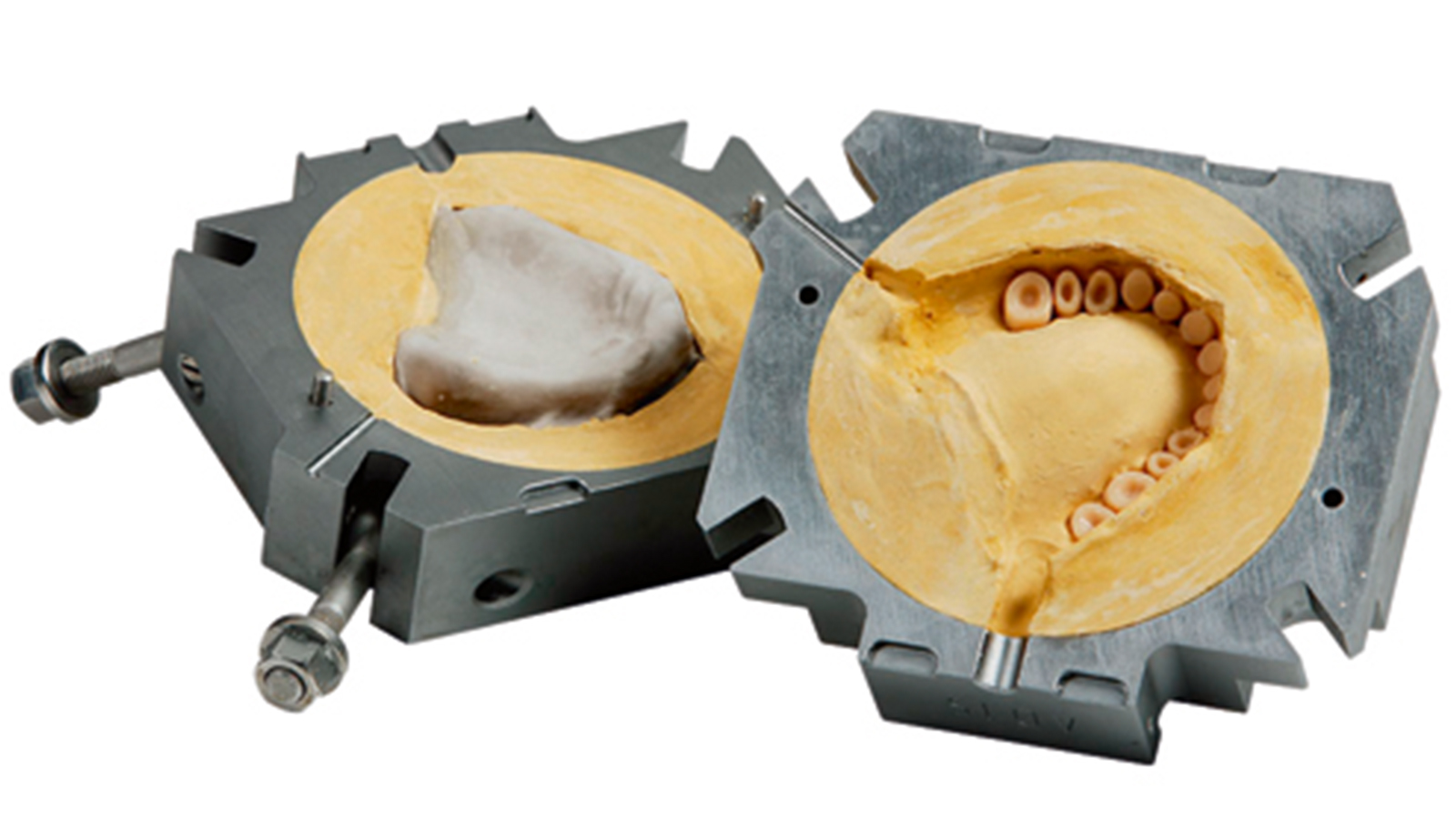

Palajet Single flask - single flask
The completed wax setup can also be invested in a single ﬂask and injected using Palajet as usual
Art. code: 6471 0524

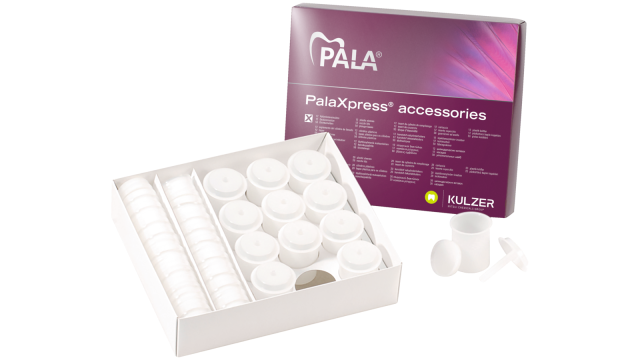

PalaXpress injection cylinder cartridges
For use in the Palajet injection unit
Art. code: 6471 0519
Art. code: 6471 4213

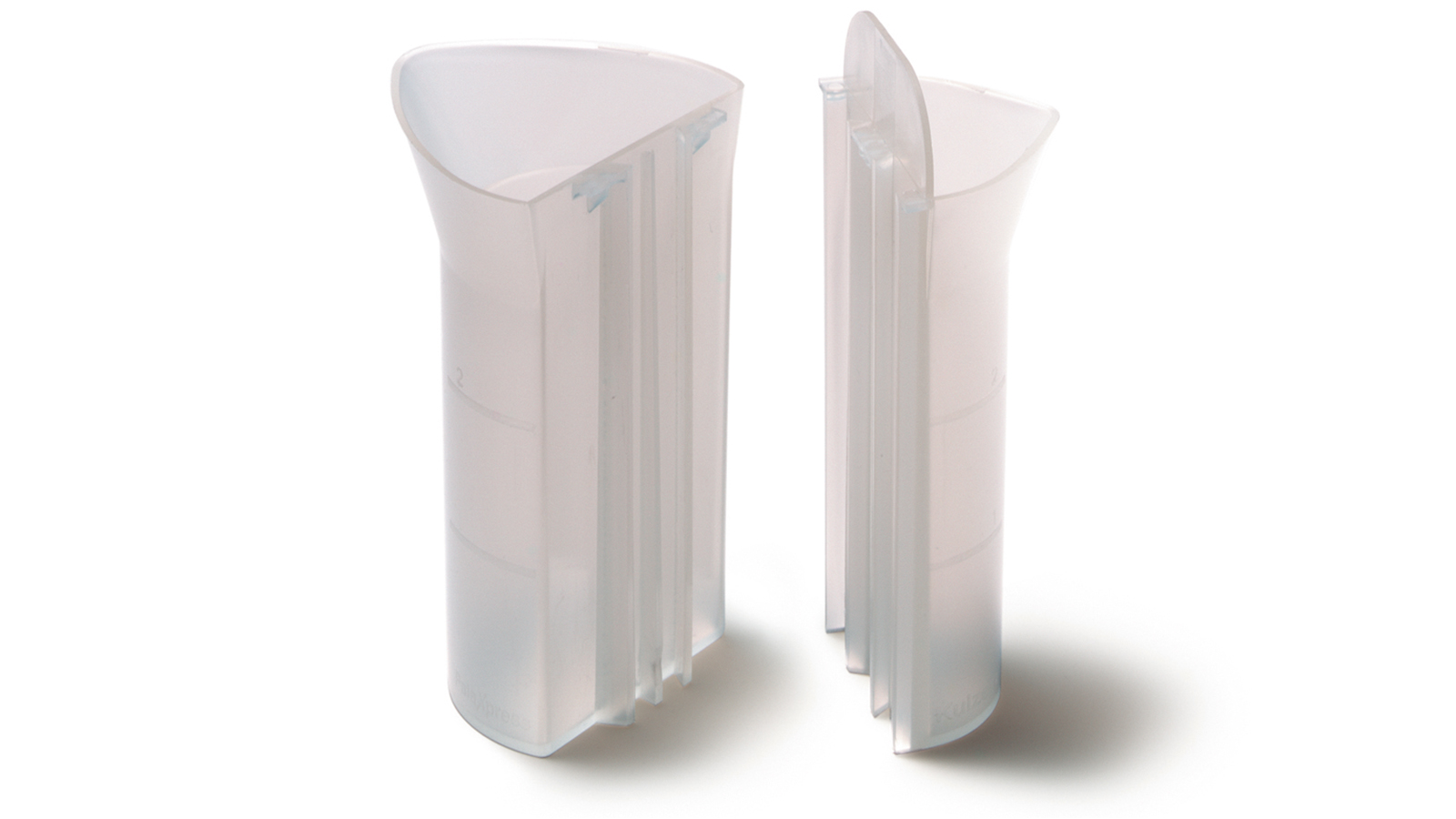

PalaXpress dosing cup
For measuring the correct ratio of liquid and powder for use with the Palajet system.
Art. code: 6471 0521
Instructions for Use can be found on the Kulzer e-IFU portal.
