dima® Print Guide & Tray
dima® Print Guide & Tray

dima® Print Guide & Tray

2-IN-1: excellent results, more convenient

dima Print Guide & Tray

High precision!

The transparent-orange color allows for visual control during tray fitting and impression taking.

dima Print Guide & Tray

High heat resistance during autoclaving…..

…..little to no distortion, leading to high accuracy.

Benefits

Good to know

Placeholder 1

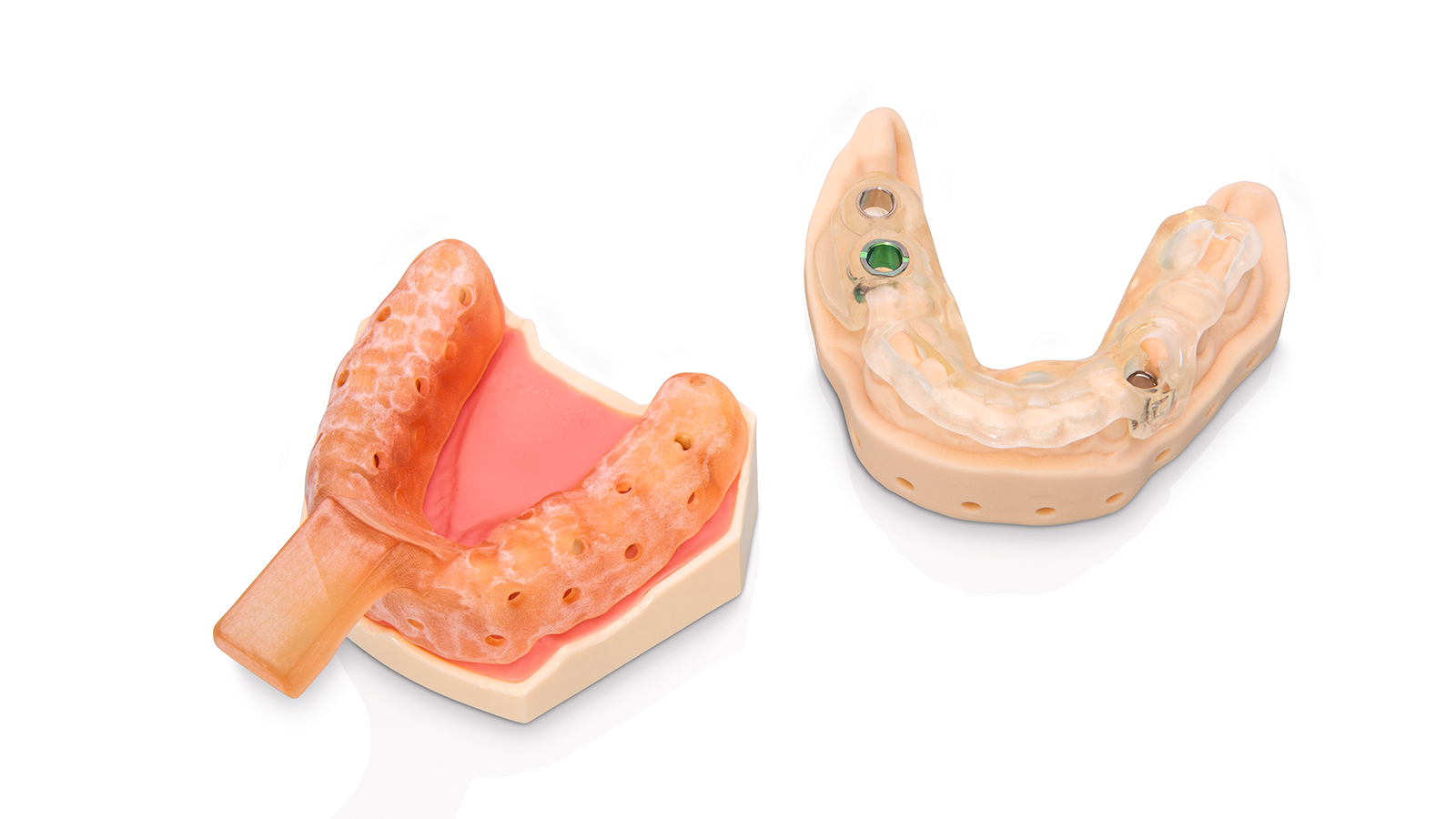

dima print Guide & Tray

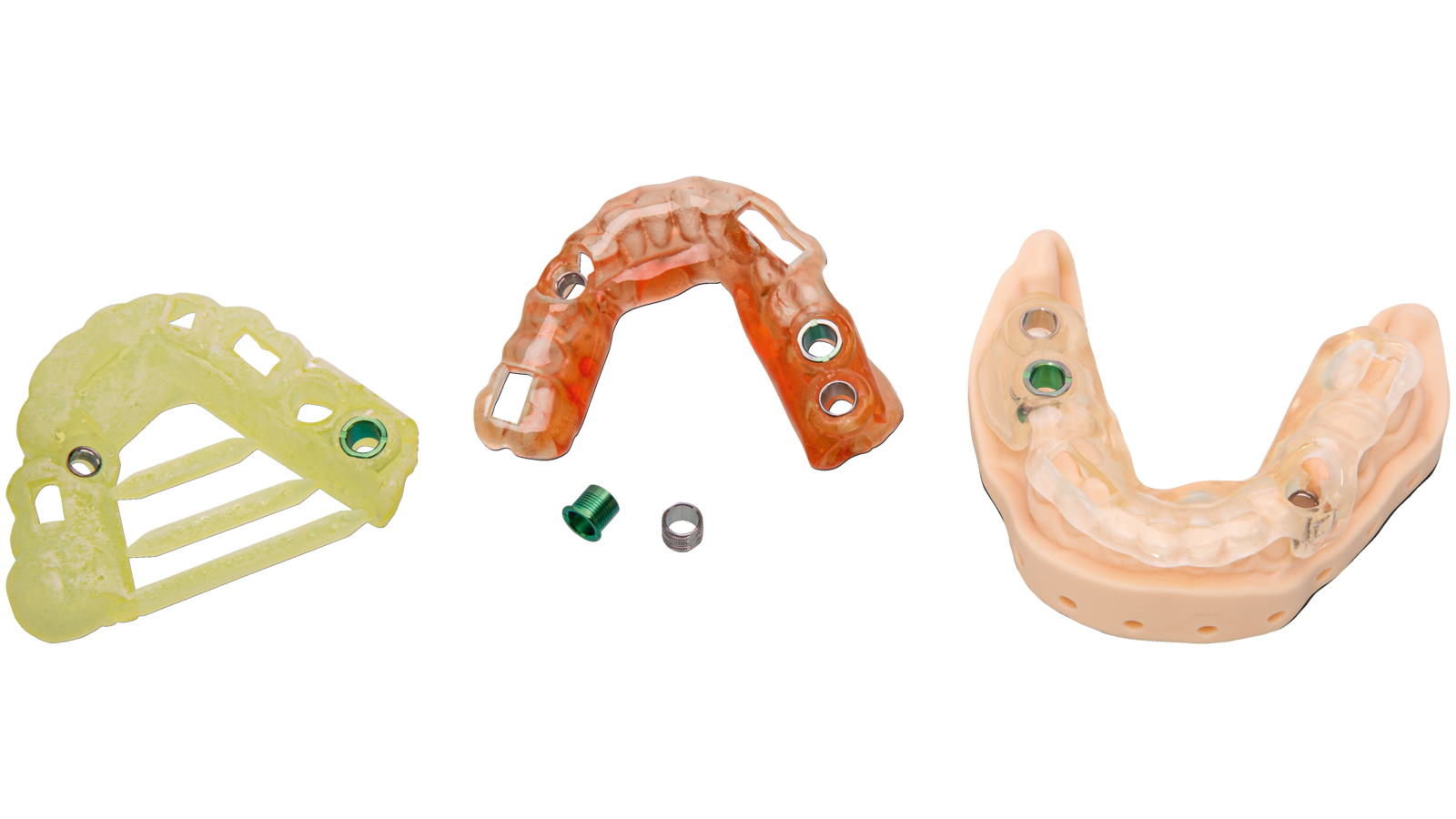

Produce more quickly and easily surgical guides with dima Print Guide&Tray.

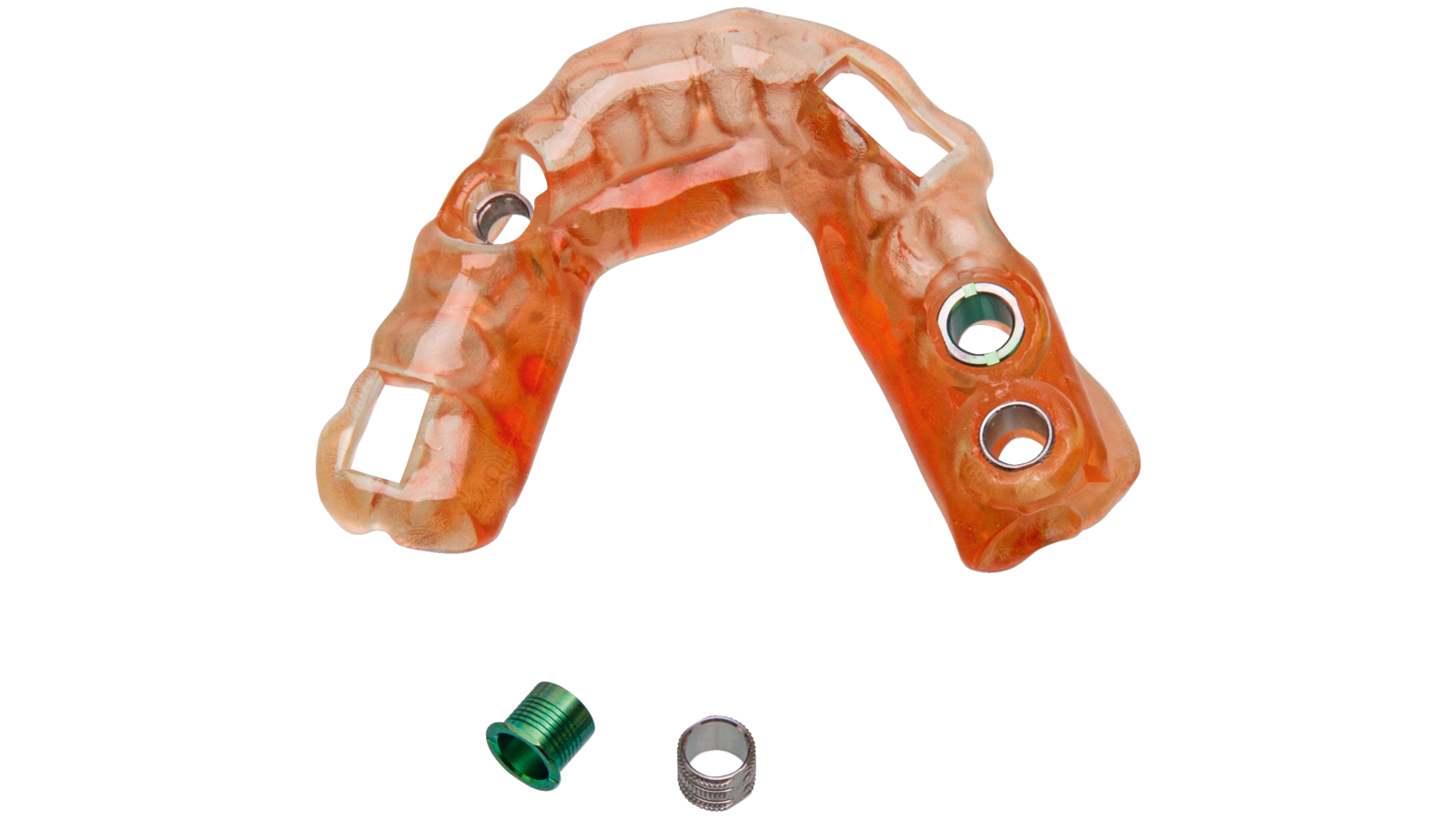

Appearance before post-curing

Appearance before post-curing

dima print

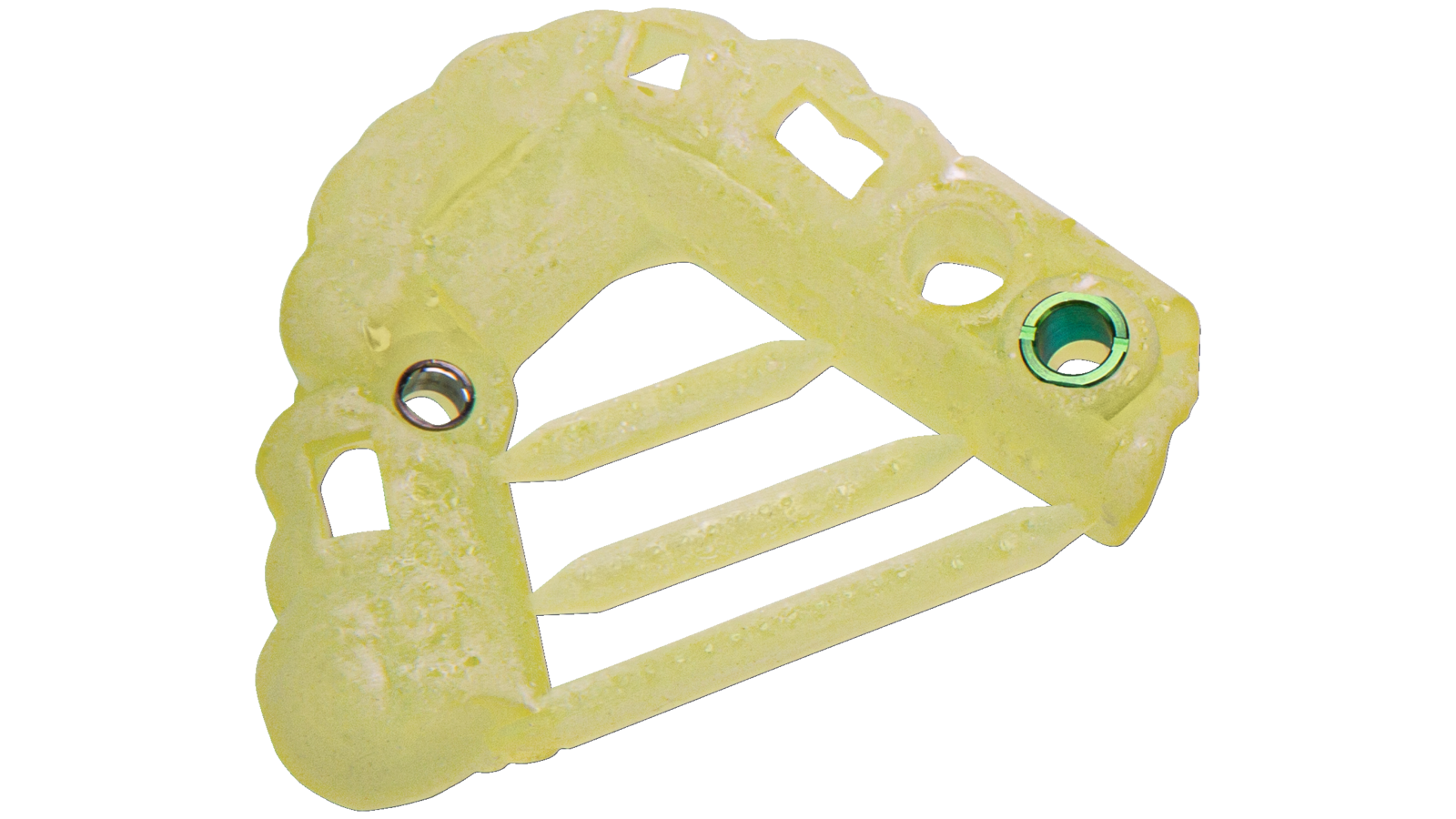

Appearance after post-curing and polishing (before sterilization)

dima print

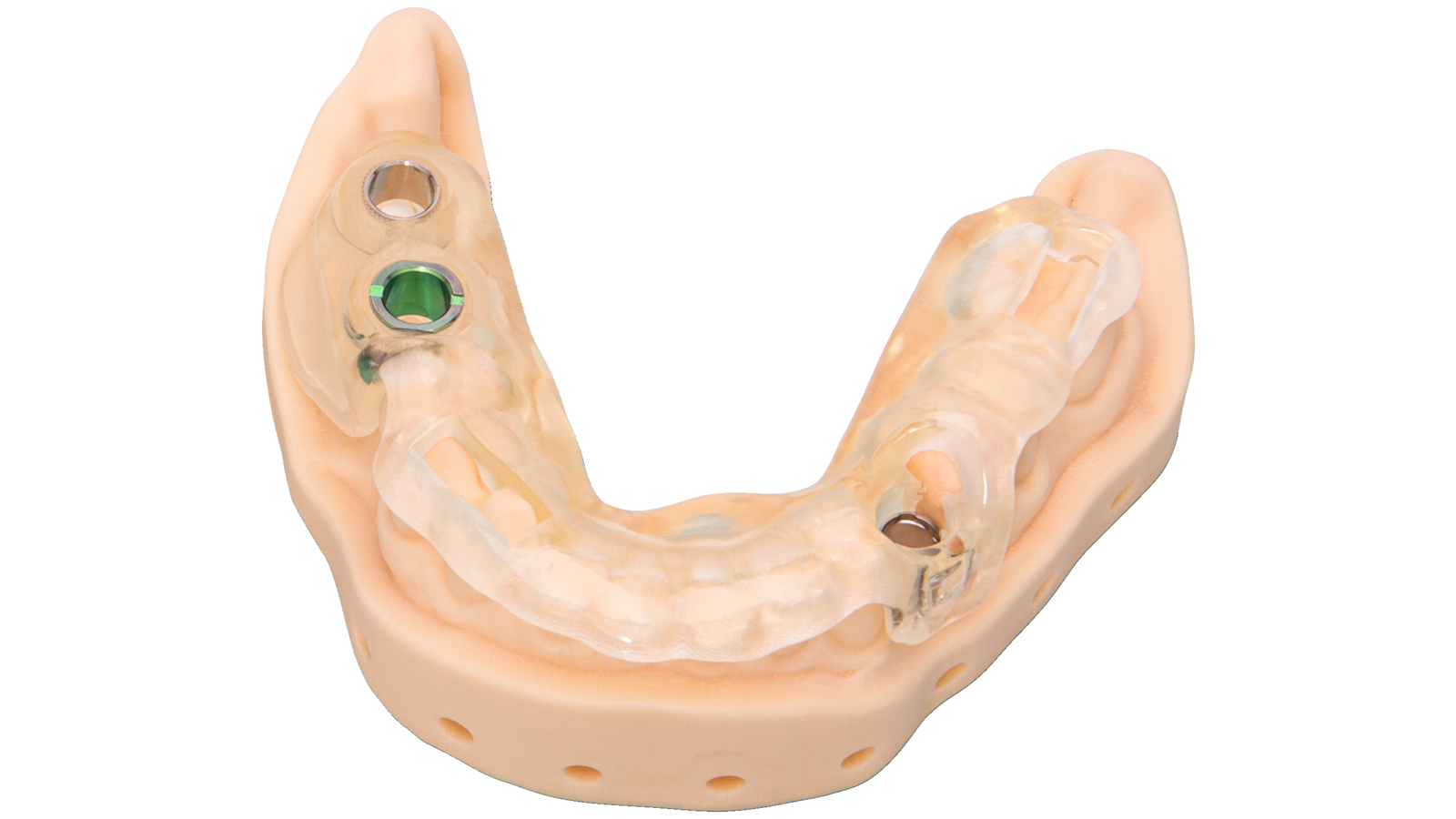

Final surgical guide (after sterilization)

Dima Print Guide & Tray

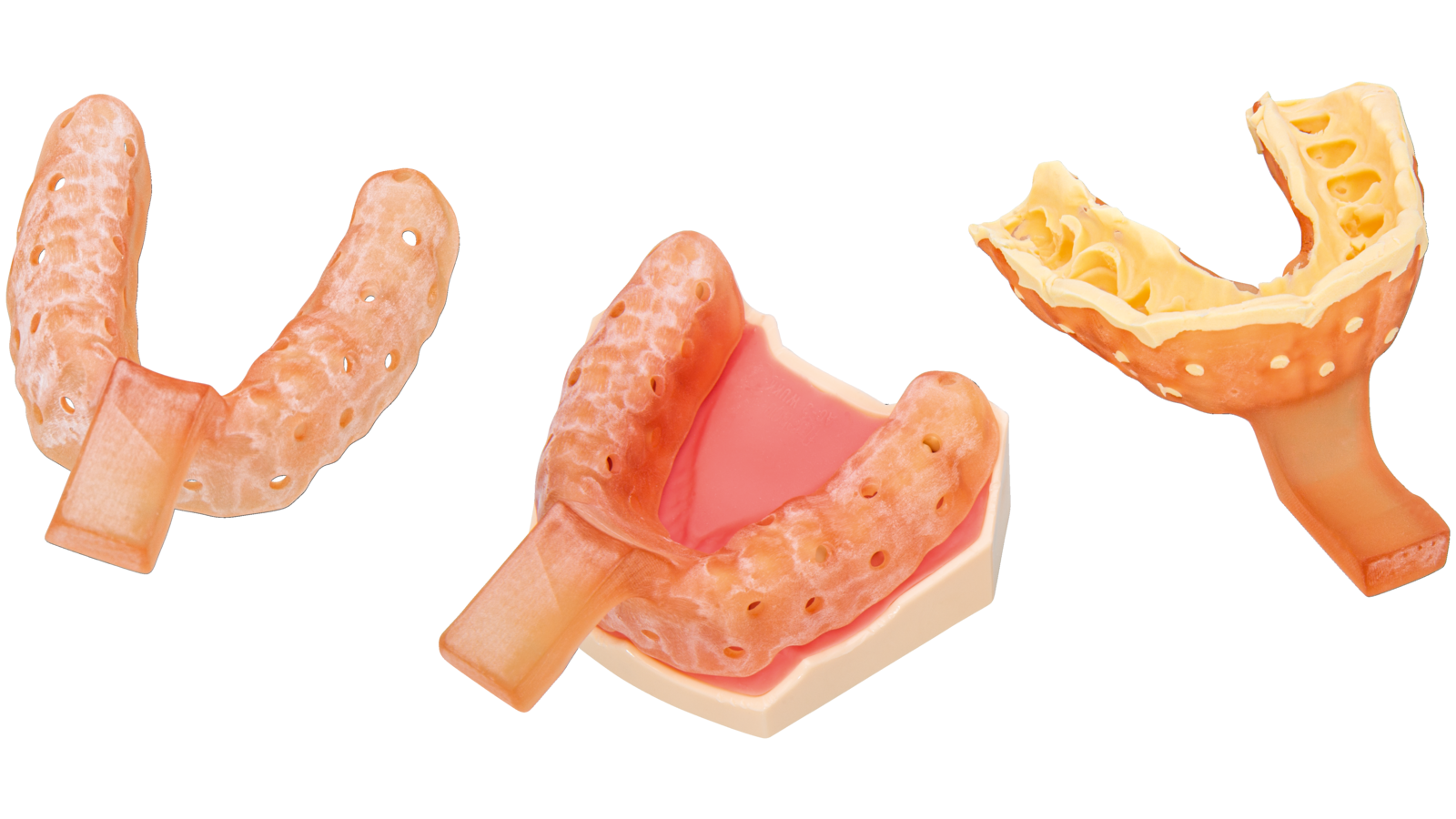

The transparent-orange colour allows for visual control during tray fitting and impression taking

Specifications

Printing performance overview cara Print 4.0


Example
Build height [mm] Time [min] for 100 µm resolution Time [min] for 150 µm resolution Material consumption [g] Avg. material costs/part [€]
Medium size drilling guide 20 15 - 7,5 2,17€
Impression tray (upper jaw) 67 42 32 37,6 10.87€

Product overview

Flexural Strength (Mpa) Flexual Mdoulus (Mpa) Water sorption (µm/mm³) Water solubility (µm/mm³) Cleaning time in isopropanol cara Print Clean pro Post-curing time HiLite Power 3D Post-Curing time LEDcure (no turning of object necessary)
> 90 MPa (measured dry, adapted to ISO 20795-1:2013) > 2500 MPa (measured dry, adapted to ISO 20795-1:2013) / / Pre-cleaning: 3 min.
Post-cleaning: 2 min.
10 min. (5 min. front side 5 min, reverse side) Select dima Print Guide & Tray

Downloads

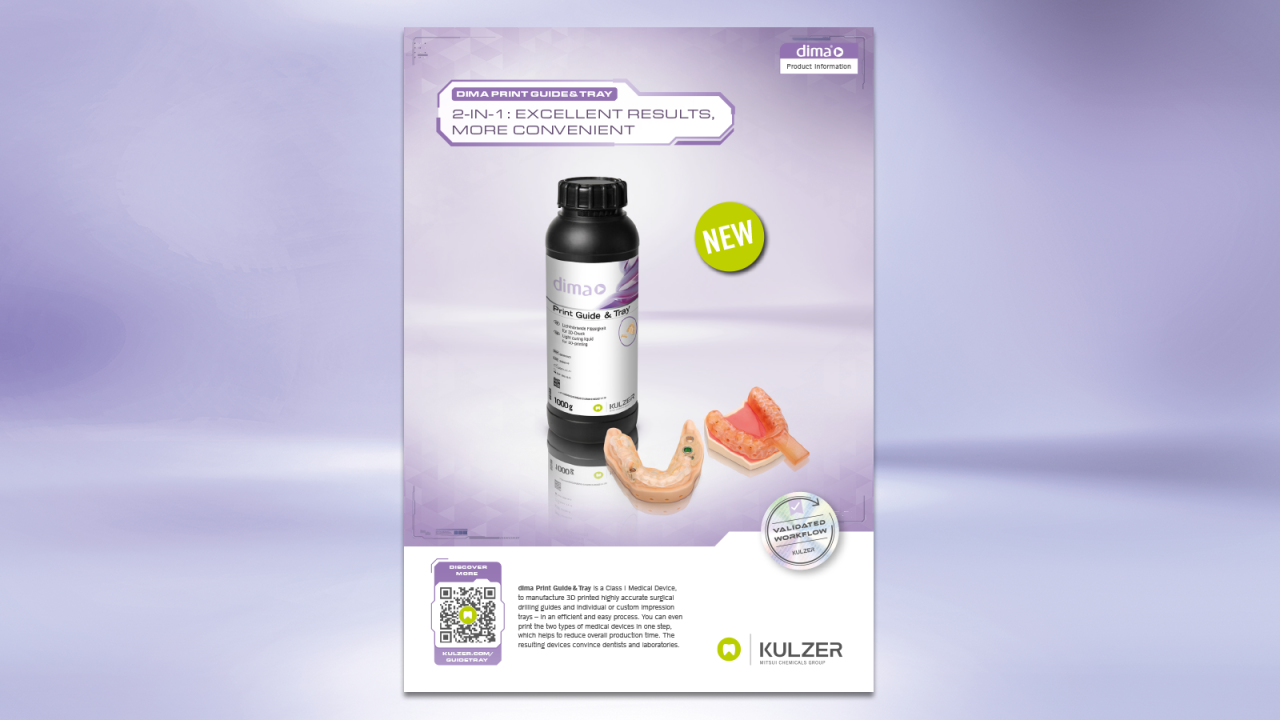

Instructions for use

  • New

    3D Printing

    cara® Print 4.0 pro

    cara® Print 4.0 pro

    Our all-rounder cara Print 4.0 pro is a 3D printer developed by dental experts to be part of a comprehensive, thoroughly tested workflow.

  • New

    3D Printing

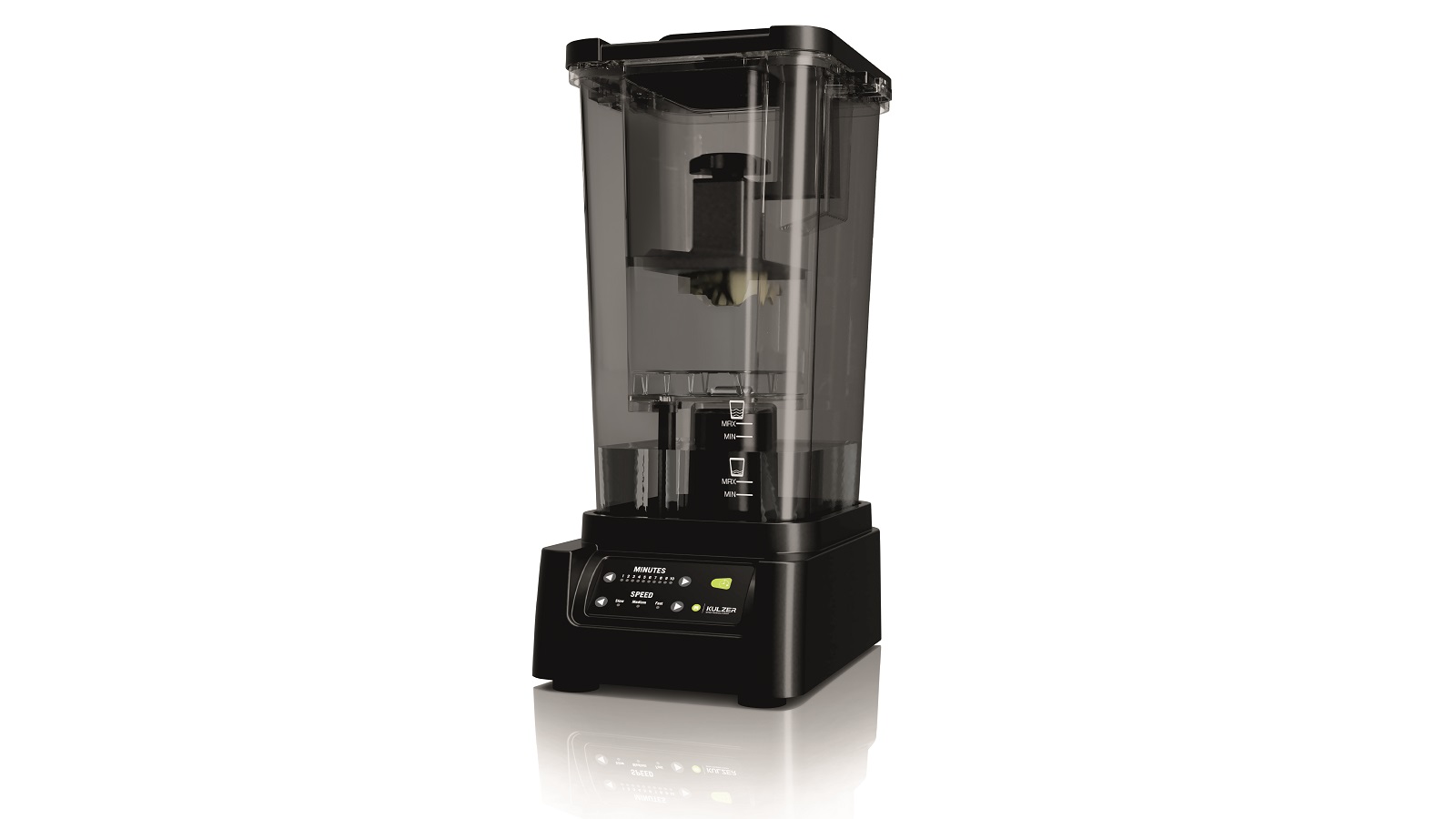

    cara® Print Clean pro
