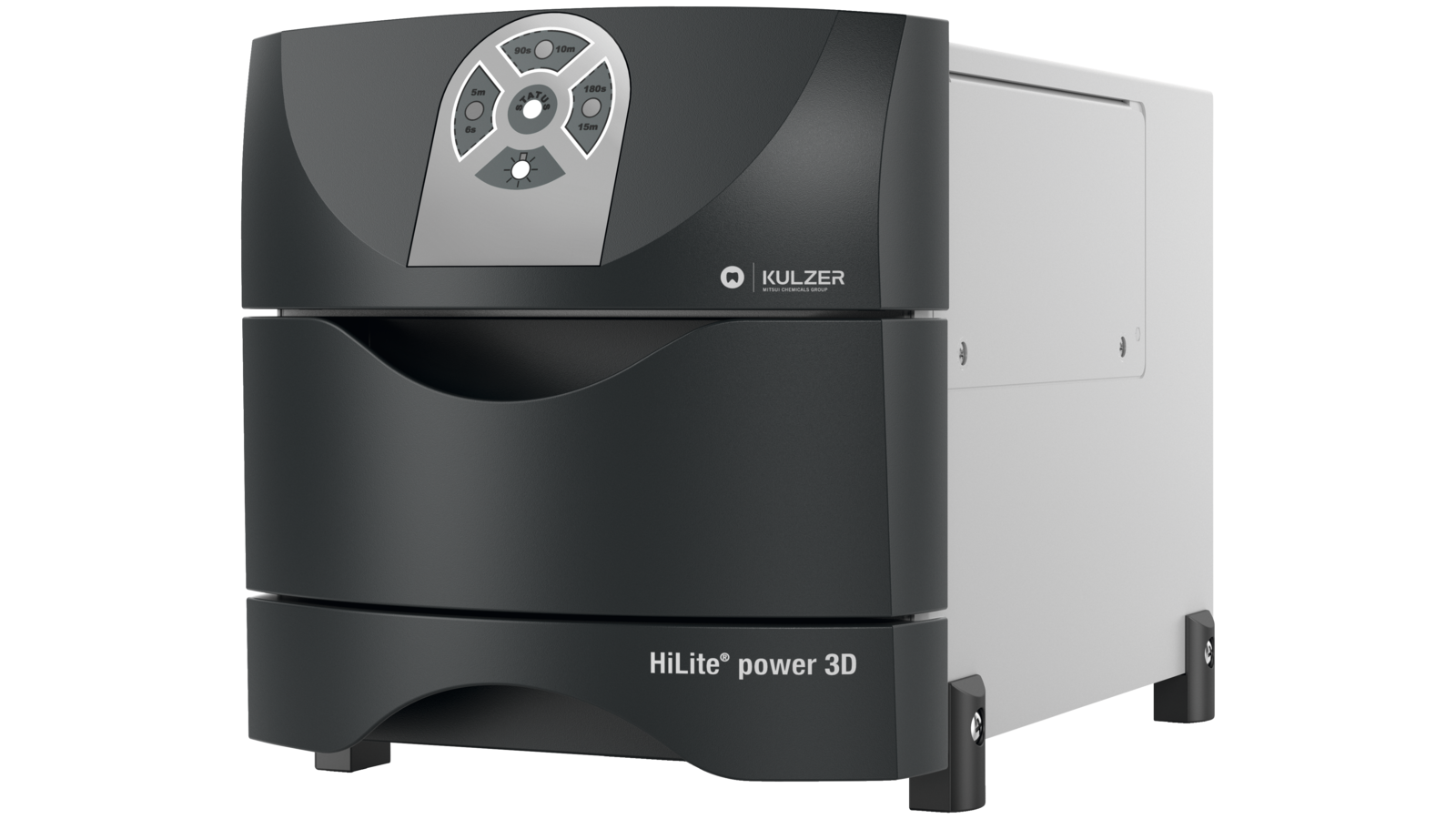

HiLite power 3D
High-performance light curing unit
HiLite power 3D is our all-rounder light curing unit. Ideal for pre and final polymerising light-curing composites from the Signum, 3D print, Pala and many other product ranges
It convinces with an user-friendly design, a reliable and strong flashlamp and the choice of six light-curing times of 6, 90 and 180 seconds (for veneering material) and 5, 10 and 15 minutes (for 3D print material).
Benefits
- 2nd time mode for composite AND 3D printed material
- Easy operation – single button timer control
- 6 polymerization times (6, 90 and 180 seconds / 5, 10 and 15 minutes)
- Blue process timer control LEDs
- High-power flash bulb with long life performance
- Efficient cooling management
- Safety door lock
- Worldwide voltage power supply
- Wide range of light from 390 – 540 nm.
Specifications
| Technical specifications for HiLite power 3D: | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mains voltage: |
100/115/230 V (via voltageselector switch) |
|||||||||||||
| Rated frequency: | 50 – 60 Hz | |||||||||||||
| Flash lamp power: | 200 W | |||||||||||||
| Fuse protection: | T6,3A | |||||||||||||
| Power consumption: | 325 VA | |||||||||||||
| Dimensions (H x D x W): | 230 x 345 x 225 mm | |||||||||||||
| Weight: | app. 9.5 kg | |||||||||||||
| Protection rating: | Class I | |||||||||||||
| Power-on time: | 80 % | |||||||||||||

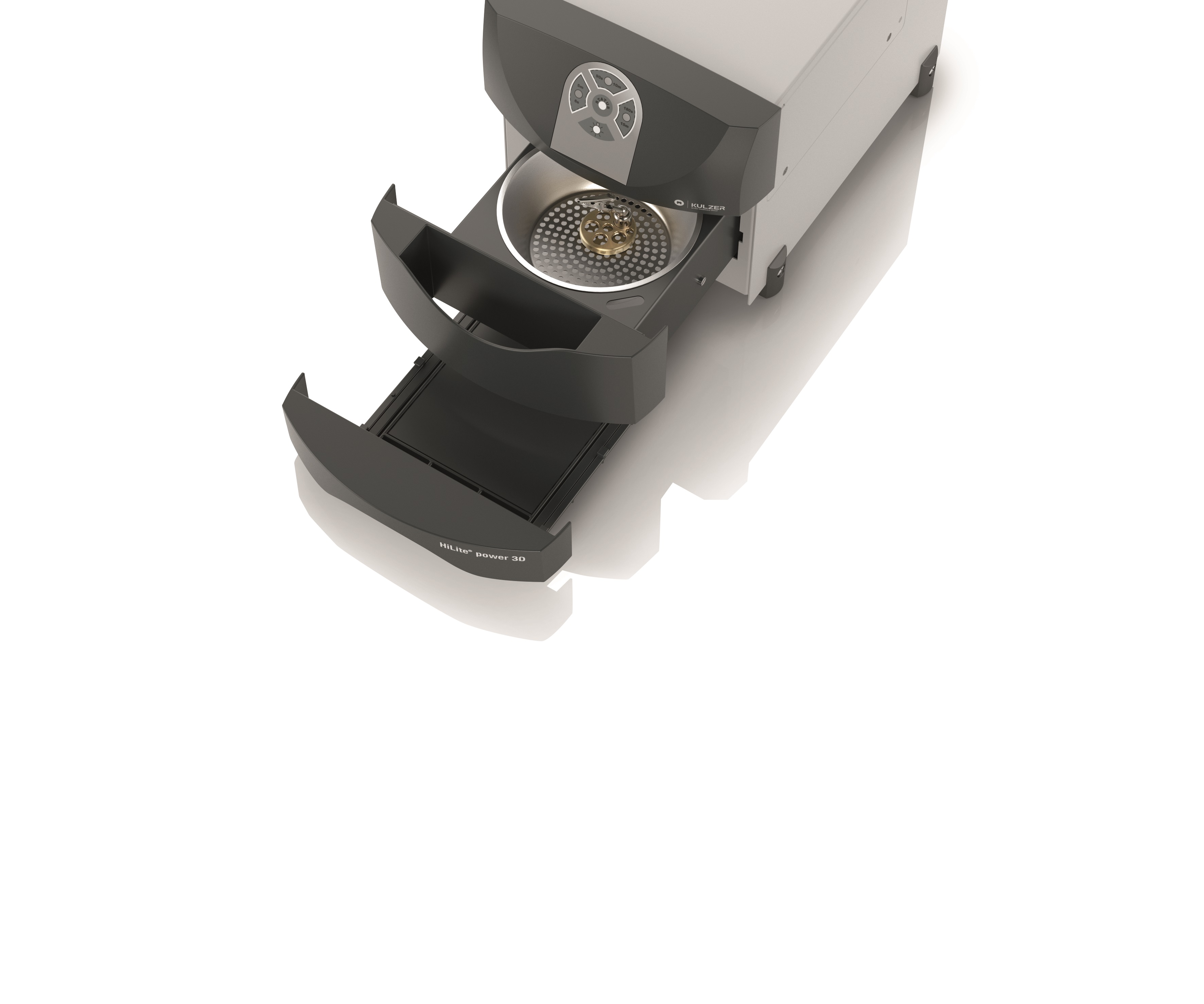

Accessories
Scope of supply:
- HiLite Power 3D with flashlamp and chip card
- Filter glass
- Pot-shaped reflector
- Object holder
- Mains cable Europe, US/JP
- 2 x Model tray
Downloads
Instructions for use
Instructions for Use can be found on the e-IFU portal.
