dima® Print Mouth Guard
Keep athletes smiling
On guard! Be the no. 1 local supplier of 3D-printed mouth guards.
Seize the opportunity to be the go-to specialist for local ambitious athletes in need of a mouth guard. With your 3D printer from Kulzer, you can easily cater to a local niche market and expand your portfolio with mouth guards that are easy to produce and even easier to re-produce as needed.
Benefits
- Cater to a niche: be THE local supplier of perfectly fitting mouth guards with DLP technology
- Easy routine work: 3D printing makes it simple to produce highly accurate guards with individually customizable thickness – every time
- Reproducible: digital files make it easy to reproduce with no need to store physical models
- Comfortable for patients: guards fit very well and don’t fall off, and the digital process means no impressions needed (if intraoral scanner provided)

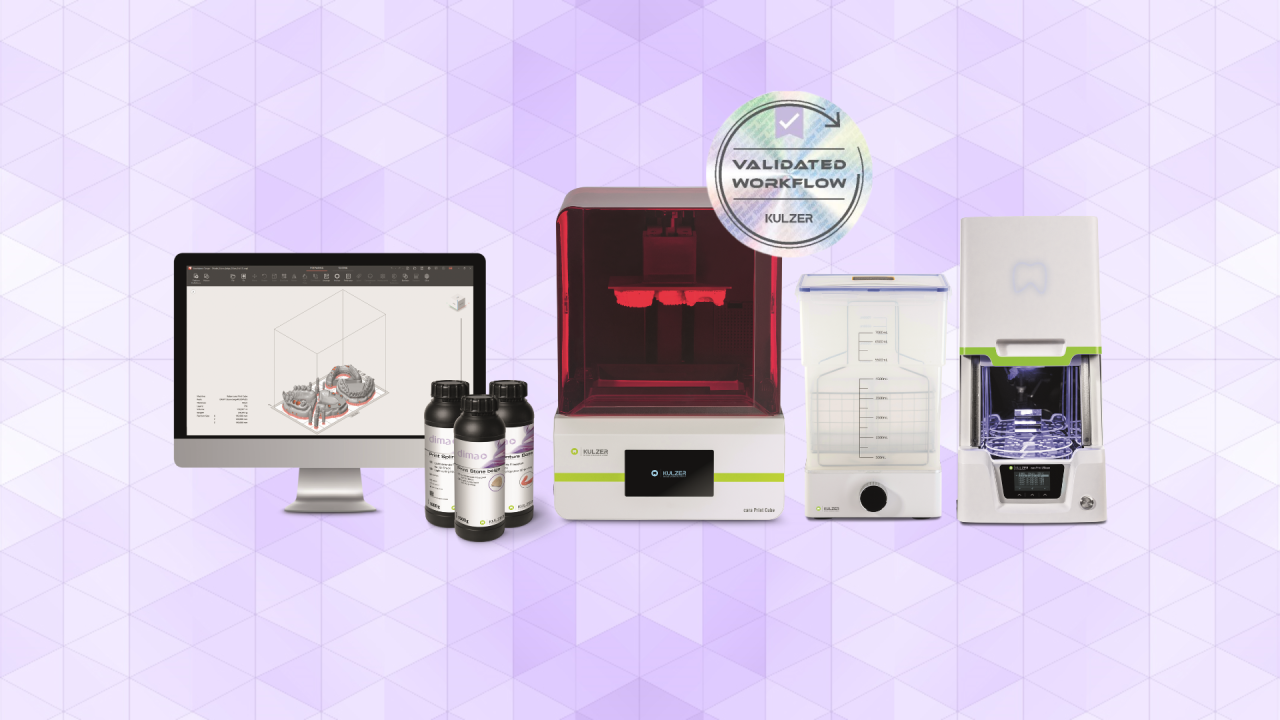

- Increase ROI of your cara 3D printer: Expand your 3DP portfolio for greater profitability
Good to know
Indications
On guard! Be the no. 1 local supplier of 3D-printed mouth guards.
As the world’s first provider to offer labs the ability to 3D print mouth guards using DLP (digital light projection) technology, Kulzer enables you to make highly accurate and comfortable mouth guards with individually customizable thickness. They are much easier to produce than using traditional methods (e.g. deep-drawing method), which normally require manual adjustment to ensure optimum performance.
- Material for mouth guards (tooth protection for athletes of all ages)
- Strongly recommended for contact and collision sports (e.g.: martial arts, boxing, wrestling, rugby, handball, American football, water polo, etc.)
- Also recommended for activities with less contact (e.g. racquetball, skateboarding, baseball, horse riding, etc.)
- Offers limited protection for “ball & stick” games (hockey, baseball, lacrosse), as the potential force of impact is much greater

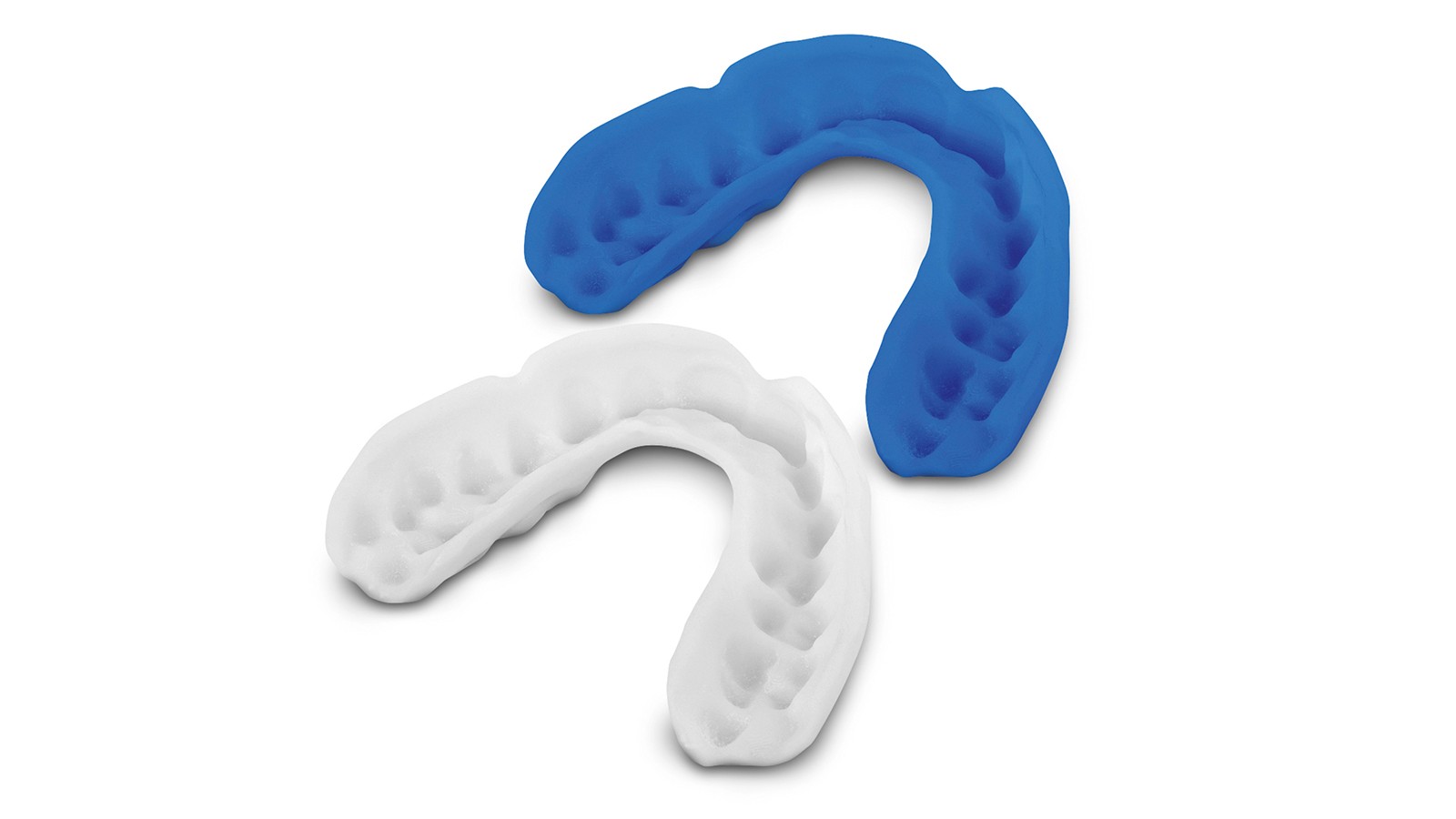

- Available colors: White and Blue
3D printed Mouth Guards in White
Available colors: Blue & White
3D printed Mouth Guards in Blue

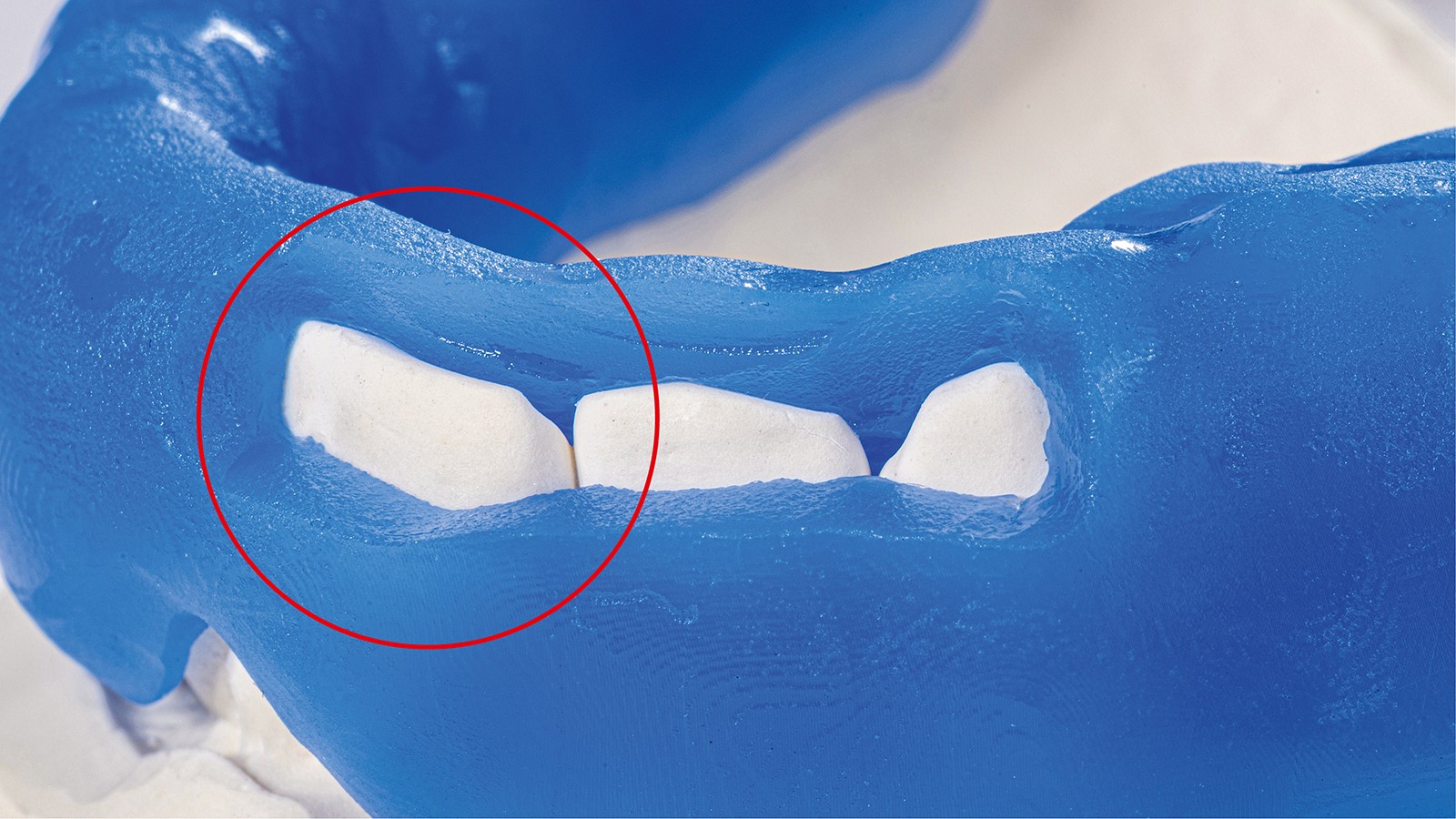

Well fitting of 3D-printed Mouth Guards

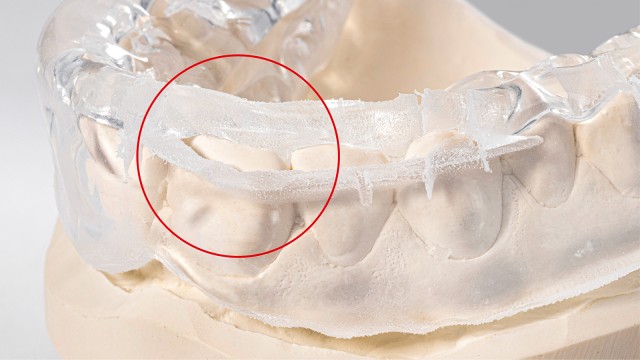

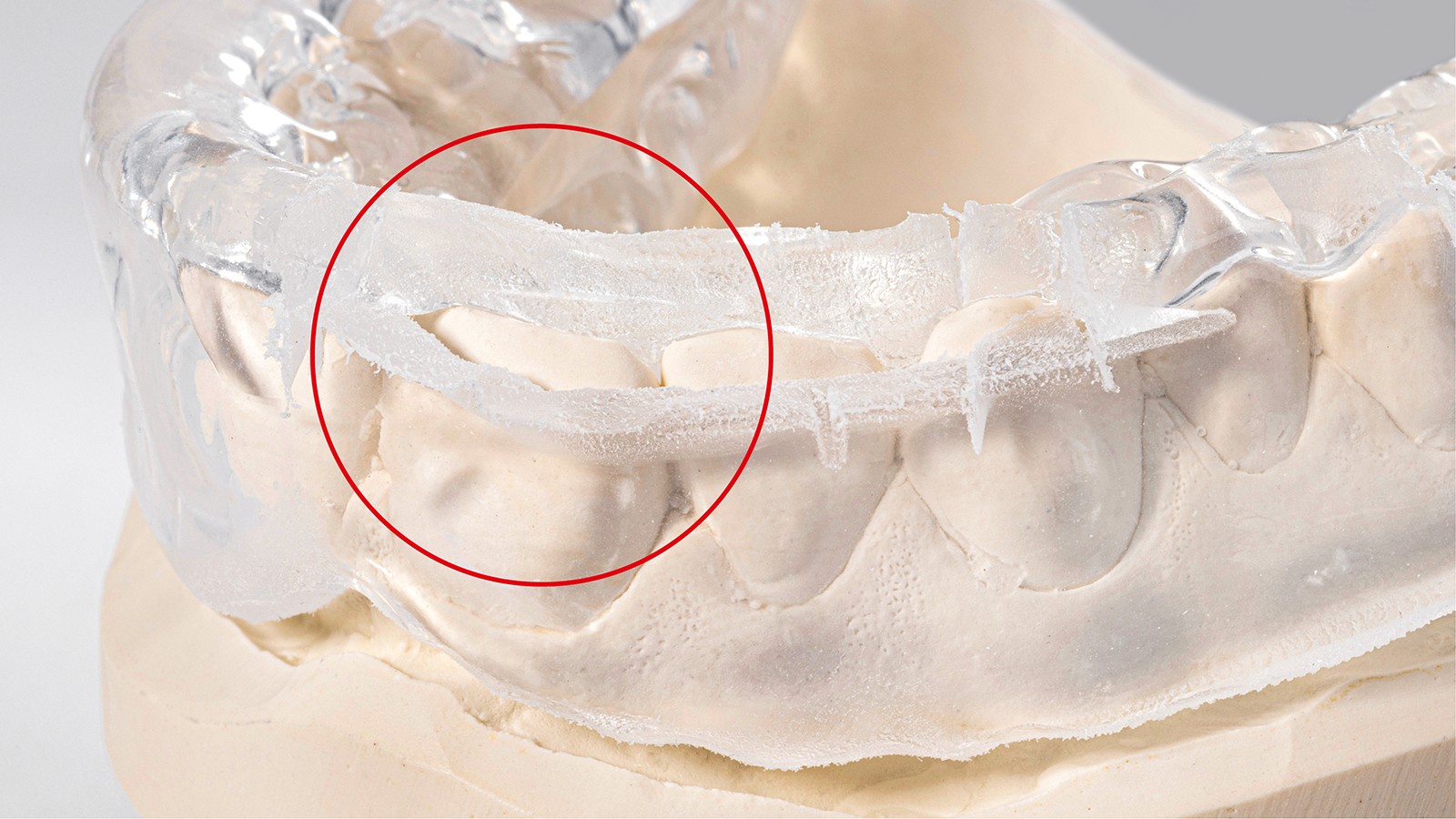

Poorly-fitting “Boil & Bite” Mouth Guards

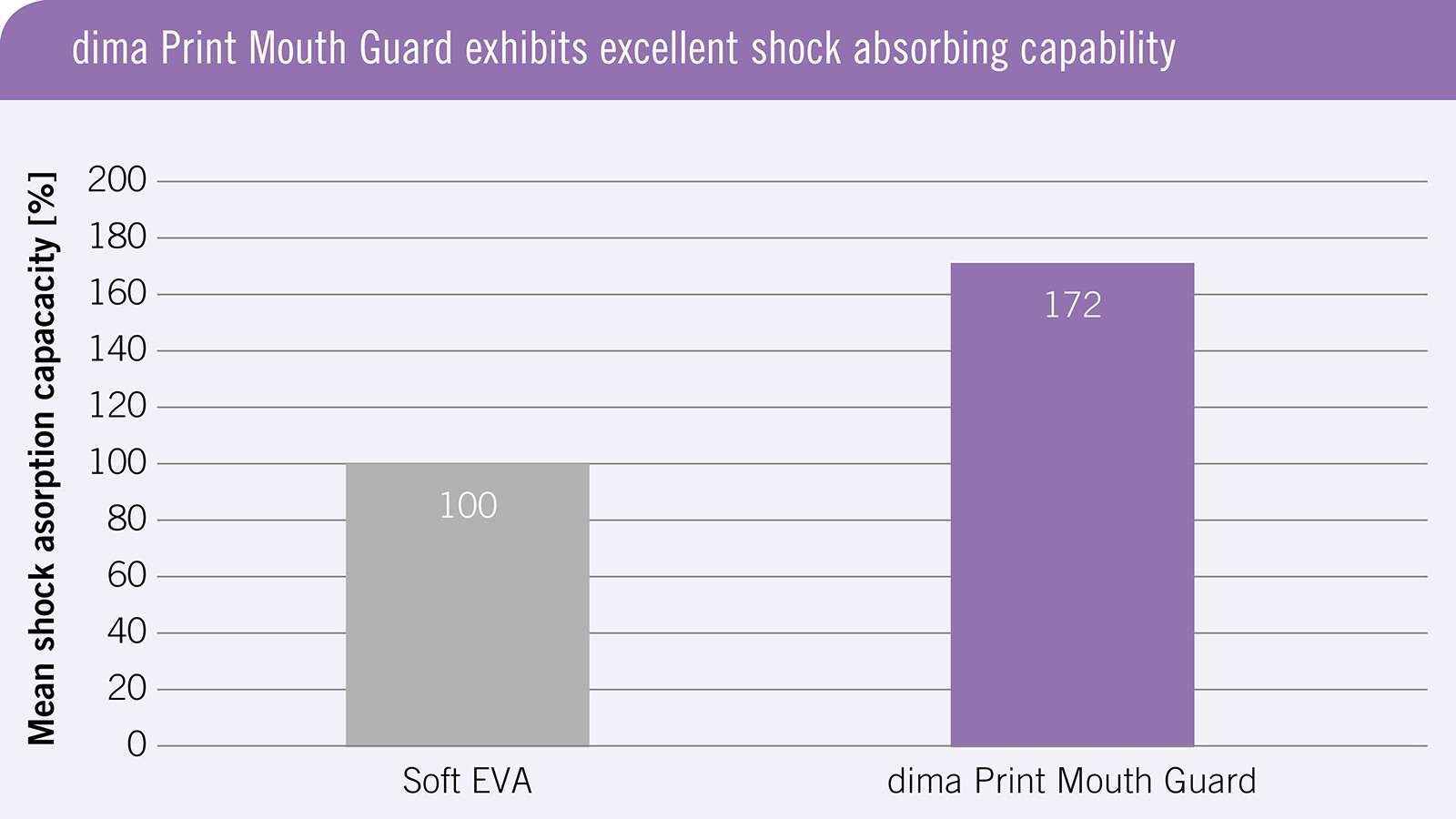

dima Print Mouth Guard exhibits excellent shock absorbing capability
Printing performance overview
| Example | Build height [mm] | Time [min] for 100 µm resolution | Material consumption [g] | Avg. material costs/part | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| One mouthguard printed flat | 25.9 | 31 | 21-23 with supports, uncleaned | 7,65 | ||||||||||
| Flexural Strength (Mpa) | Flexual Modulus (Mpa) |
Cleaning time in isopropanol cara Print Clean pro |
Post-curing time HiLite Power 3D |
Post-Curing time LEDcure (no turning of object necessary |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| not applicable | Not applicable |
Pre-cleaning: 3 min. Post-cleaning: 2 min. |
10 min. (5 min. front side & 5 min. reverse side) | Select Mouth Guard program Blue or White | ||||||||||
