3Shape Dental System
CAD design software
The 3Shape Dental System™ CAD software enables you to design all types of restorations digitally and easily combine them as desired. All 3D models can be manufactured regardless of the CAM equipment.
Benefits
- Simple and intuitive operation: You are guided through all steps of the design process in a logical and easily understood process.
- Comprehensive CAD software package: With Virtual Articulator, Smile ComposerTM and Splint DesignerTM in addition to numerous other features, many functions are included in the basic software package.
- Multi-dimensional design: The software enables you to work simultaneously in 3D and 2D and so helps you to select the best view for each design step. And: The system also supports graphics tablets.
- Productive and flexible: Even complicated restorations can be completed within a few minutes and the results animated on the screen immediately.
- Custom libraries: You can select standard teeth and bridge elements in 3D from an extensive directory or create your own collection with self-scanned shapes.
- Modular structure: The system can be extended as desired depending on your dental speciality with the Abutment DesignerTM, Denture DesignTM, Implant Bars & BridgesTM, Model BuilderTM, Ortho AnalyzerTM and Removable Partial Design software add-ons.
Software Packages
Versatility is an integral component of the Dental System™ CAD software package. Select all-round professional support with easily operated and powerful CAD design programs that will simplify you everyday work and increase your productivity.

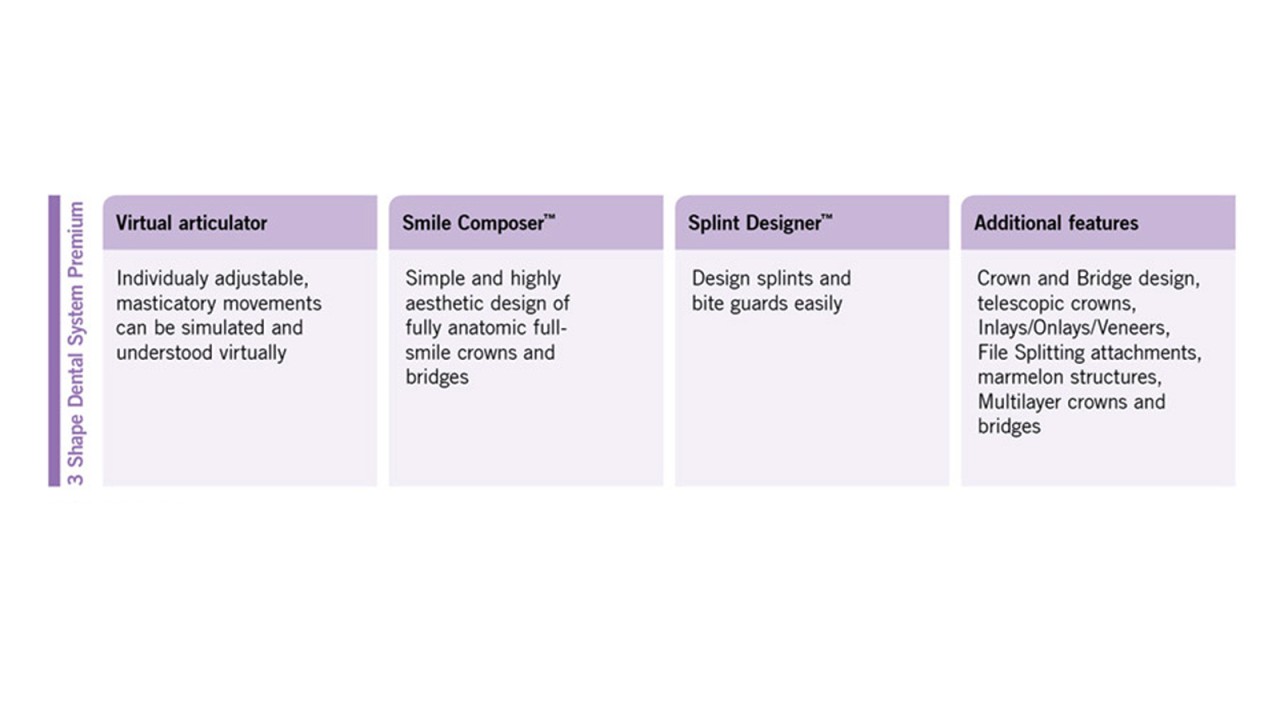

3Shape Dental System Premium
3Shape Dental System C & B
Further indications can be covered by CAD points or by Add-on modules, please look at the .

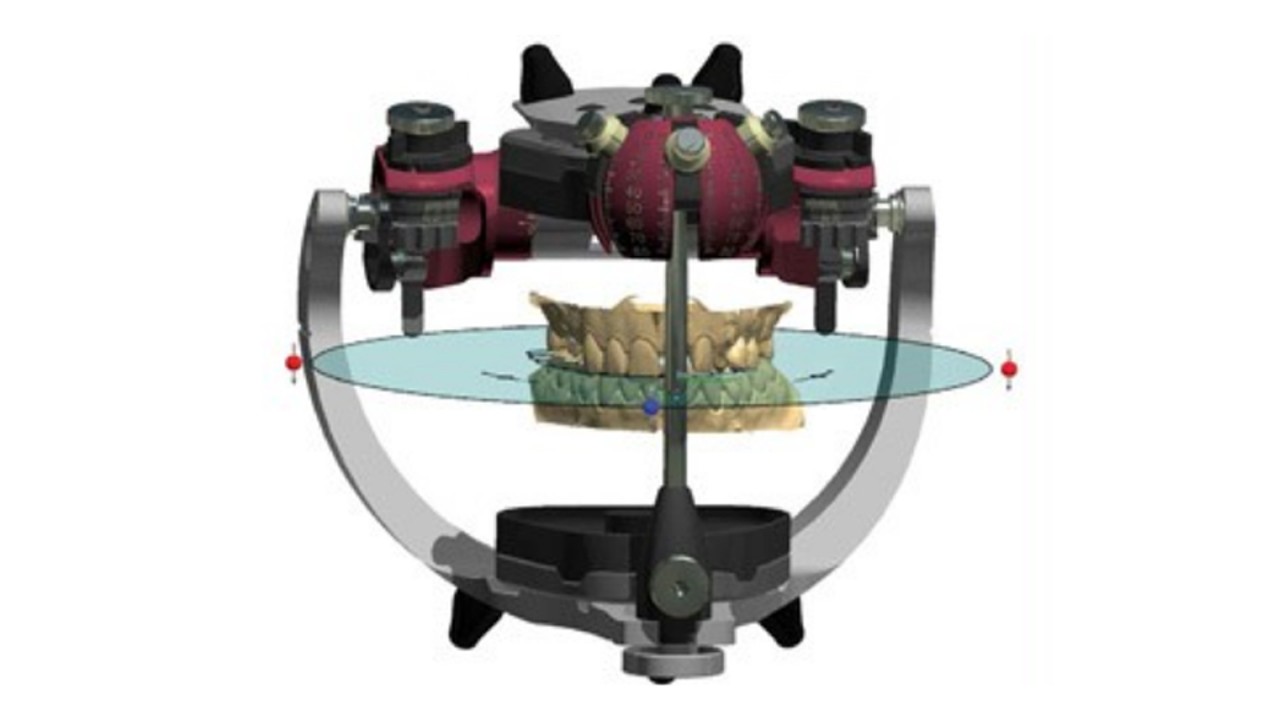

Virtual articulator
Design better crowns and save time with manual trimming. With the Virtual Articulator, the dental technician can perform all the classical jaw movements (protrusion, retrusion, laterotrusion, mediotrusion and immediate side shift) virtually, enabling complete articulation in a single purely digital workflow.

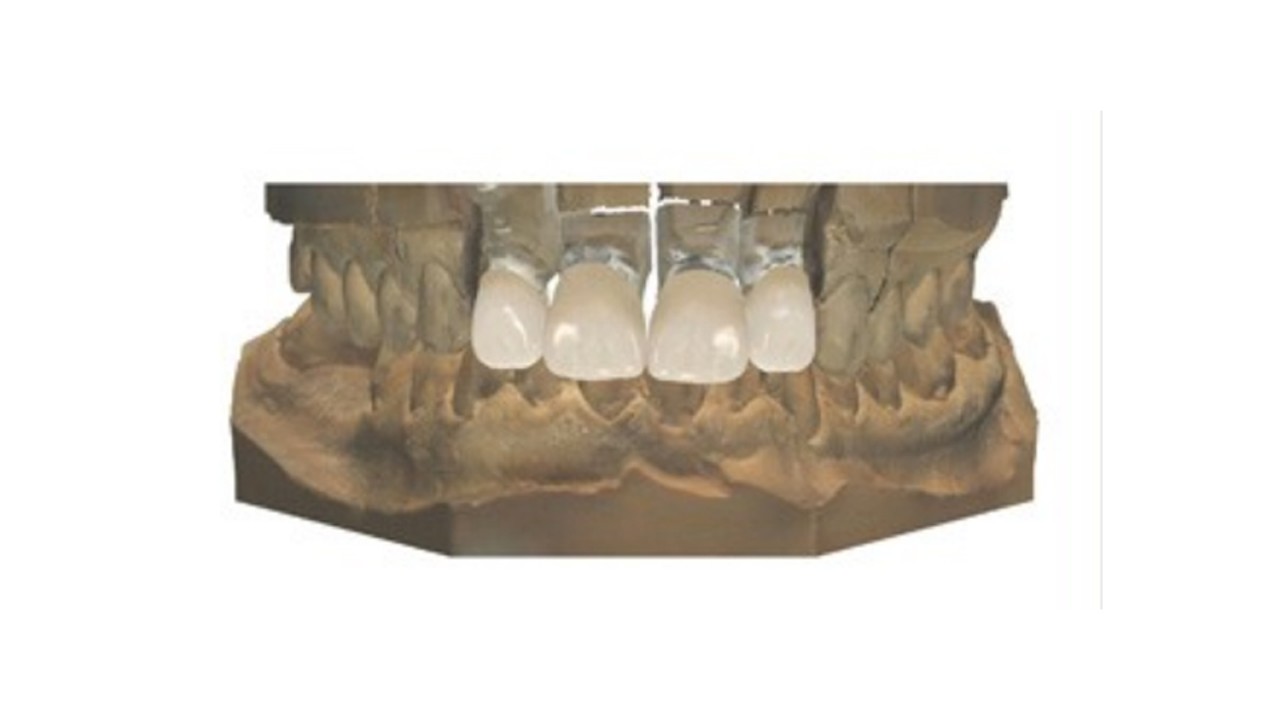

Smile Composer™
Design high-end anatomical crowns and bridges. The Smile Composer makes it easy for you to achieve high-end aesthetic results. You can work with "Full Smiles", i.e. the relationship between the teeth is retained and can be mirrored 1:1. Improved free-form tools also guarantee a fast design process.
Splint Designer™

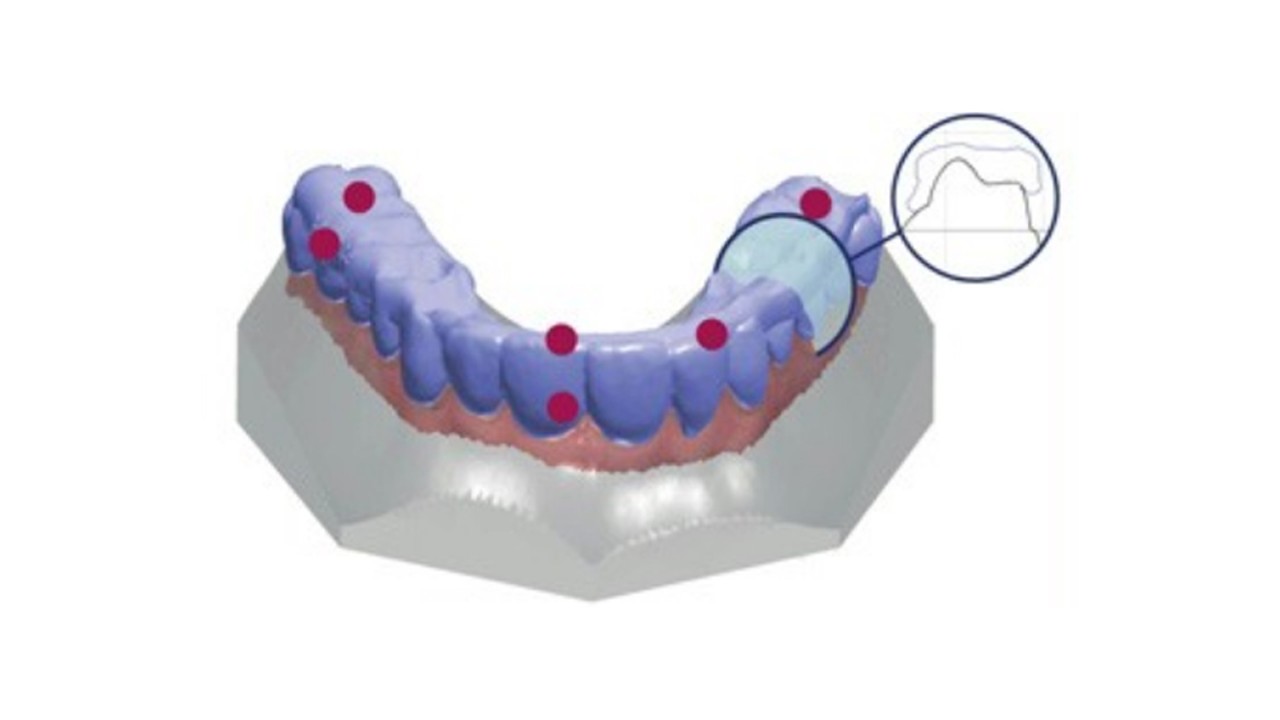

Extend the digital range. You can use Splint Designer™ to manufacture splints, bite guards, surgical masks and other orthodontic appliances. The modelled splints can be manufactured with milling machines and also with 3D printers.

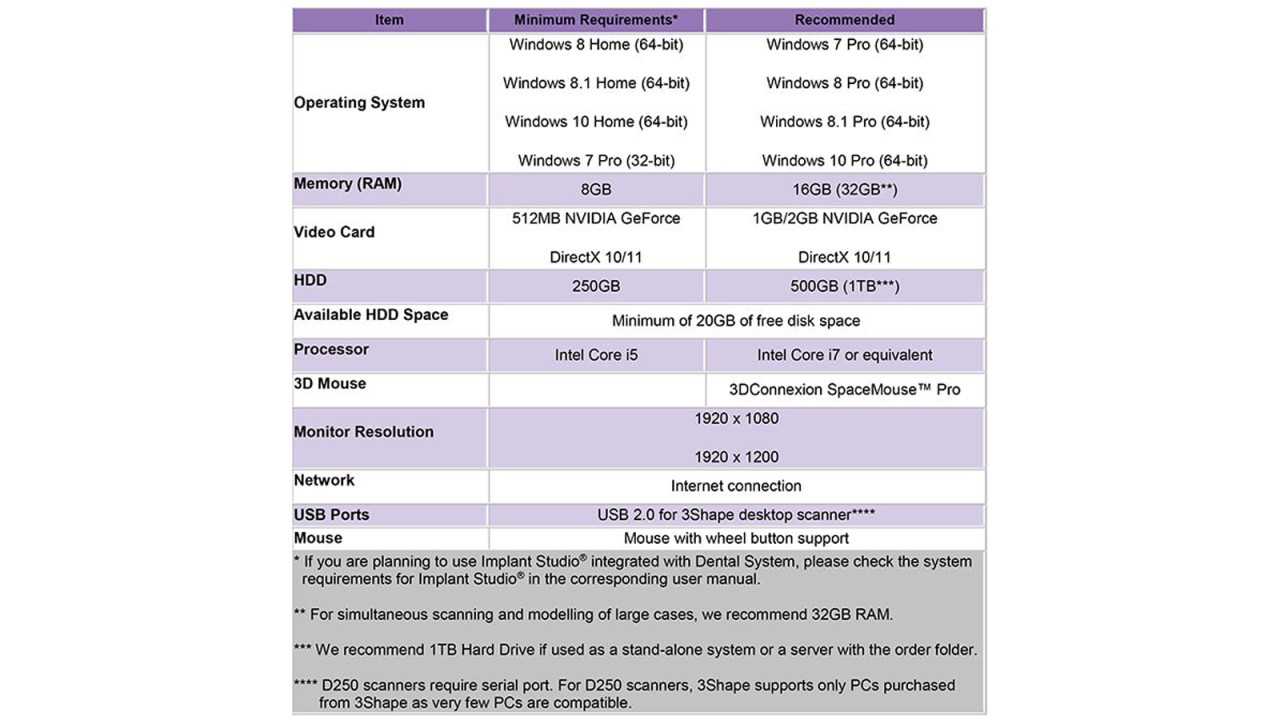

System Requirements

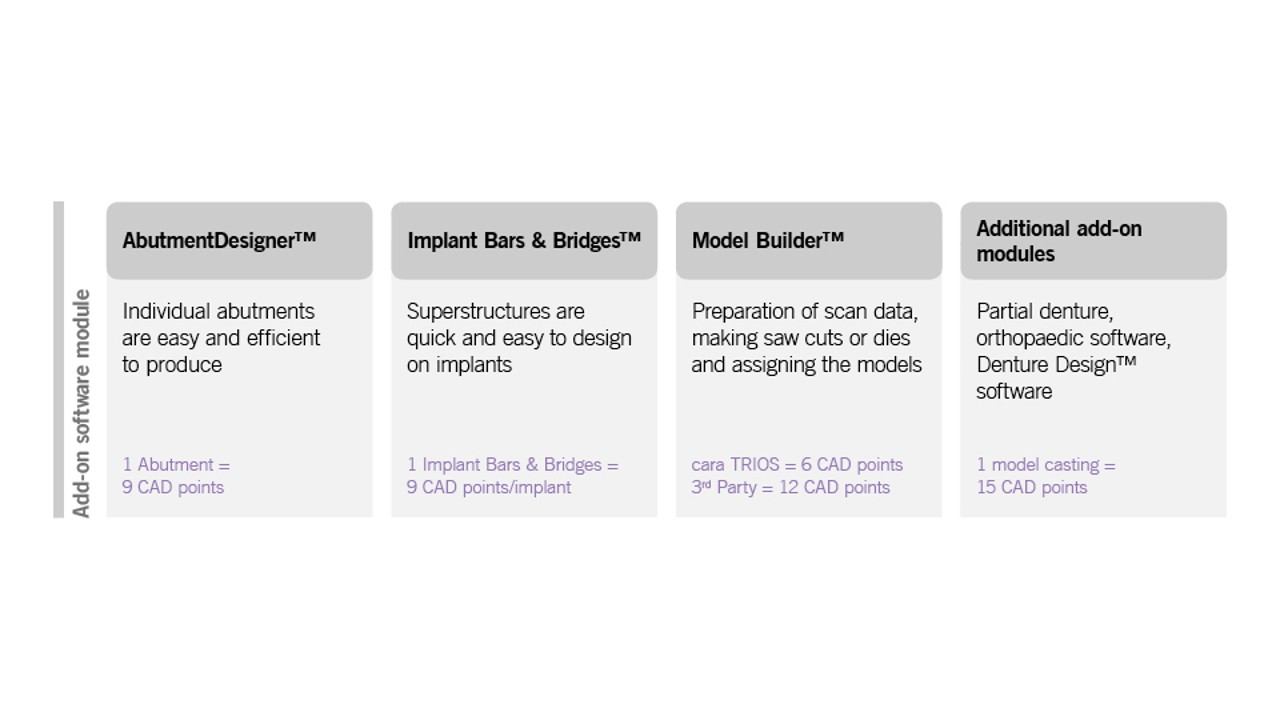

Add-on Modules
Custom configuration using the modular principle. A range of add-on modules is available for the Dental SystemTM CAD software. You can use them for additional indications, making your business more competitive.

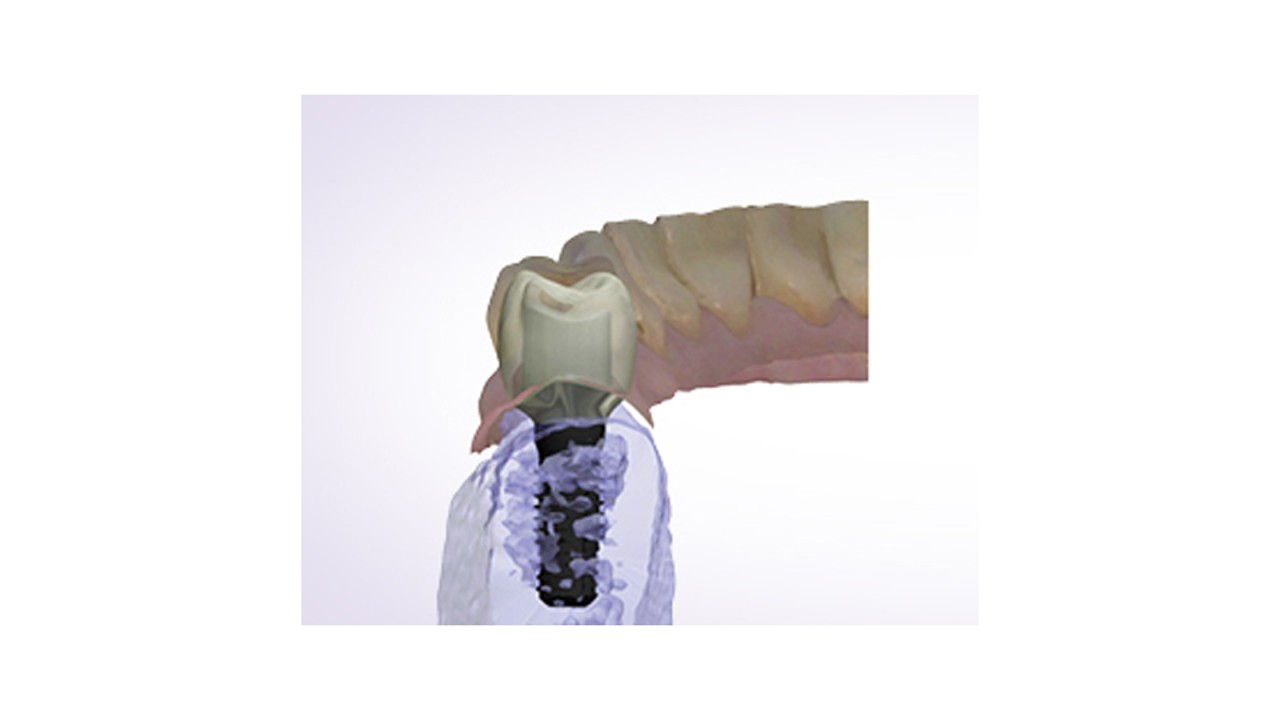

AbutmentDesigner™
AbutmentDesigner™ is an add-on module for the 3shape DentalDesigner™ software. It allows individual one and two-piece abutments to be produced.
AbutmentDesigner uses its own algorithms to detect the implant position and alignment. It guarantees the maximum precision that is essential for producing implant bridges, for example.
Benefits:
- Many options: You can design custom abutments, screw-retained crowns and anatomical abutments with this special software.
- Flexible combinations: Combining abutments with other restorations using file splitting, e.g. with crowns and copings, is easy with top precision and parallelism.
- For complex implant work: The software automatically aligns several abutments in a common insertion direction, which you can set up specifically for the patient.
- Simple gingival adaptation: The emergence profile can be customized for the patient’s gum
- Optimal crown support: The preparation margin of the abutment can be customized to the gingiva for optimal aesthetics and crown support
Denture Design™

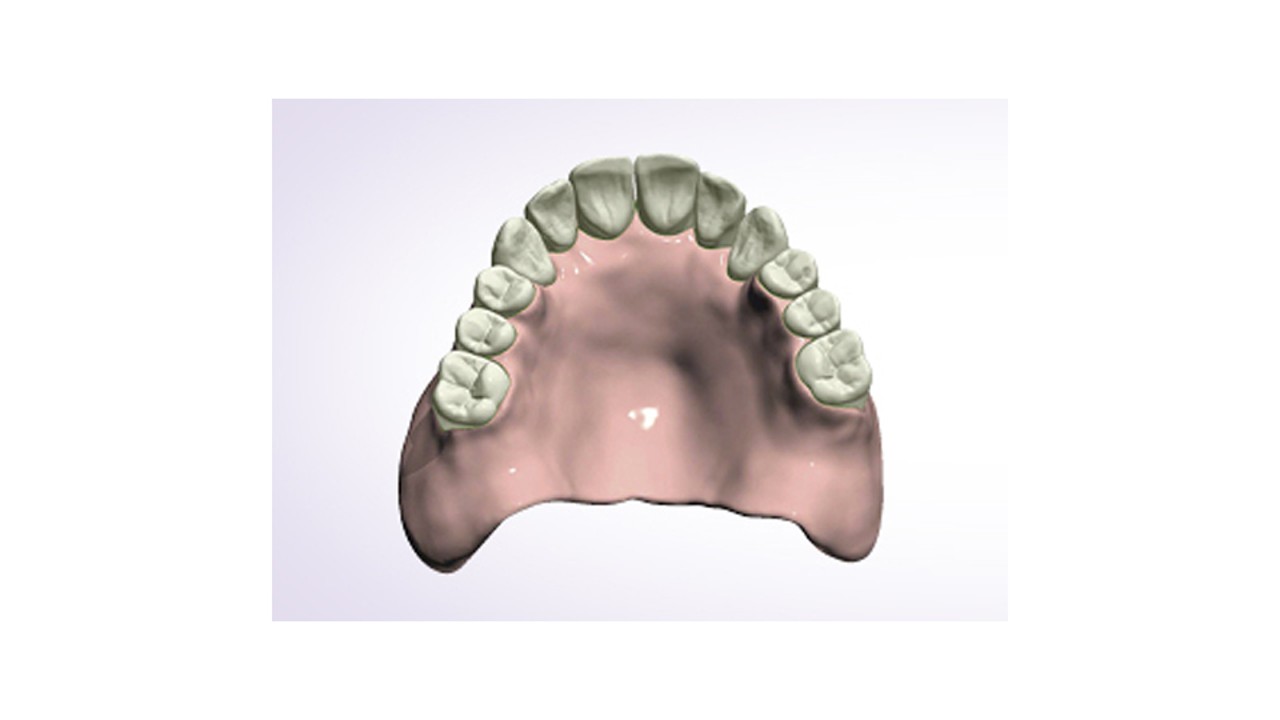

The third-generation 3shape software makes it possible. Use Denture Design™ to design dentures in fast and accurate workflows and take advantage of innovative tools for adjusting denture occlusion and functions.
Denture DesignTM has been developed to improve the clinical performance and to reduce the time and number of appointments required for working on the patient during denture treatment.
Benefits:
- Improved scanning process: Scanning plaster models (maxilla, mandible, bite rim) or impressions (Centric Tray, standard impression tray) is now even easier and more convenient.
- Automatic gingival adaptation: Using Denture DesignTM you only need to define the gingival margin and then allow the program to create the shaped gingiva automatically.
- Simple evaluation and planning: The model can be easily analysed with the software to ensure optimal selection and placement of a tooth.
- Comprehensive library support: You have access to comprehensive anatomy libraries with complete rows of teeth with perfect occlusion.
- Re-scan wax try-in: The software provides complete support for repeated scanning of the wax try-in for adjustment of the final design.
- Individual impression tray: Impression trays can be custom-designed for the clinical situation.
- 3-in-1 impression bite plate: The “bite plate” is a digitally designed bite register that combines the custom impression tray, bite rim and intraoral register impression. It is an ideal instrument for dentists to optimise the occlusion and function of the denture and to reduce the treatment time.
Model Builder™

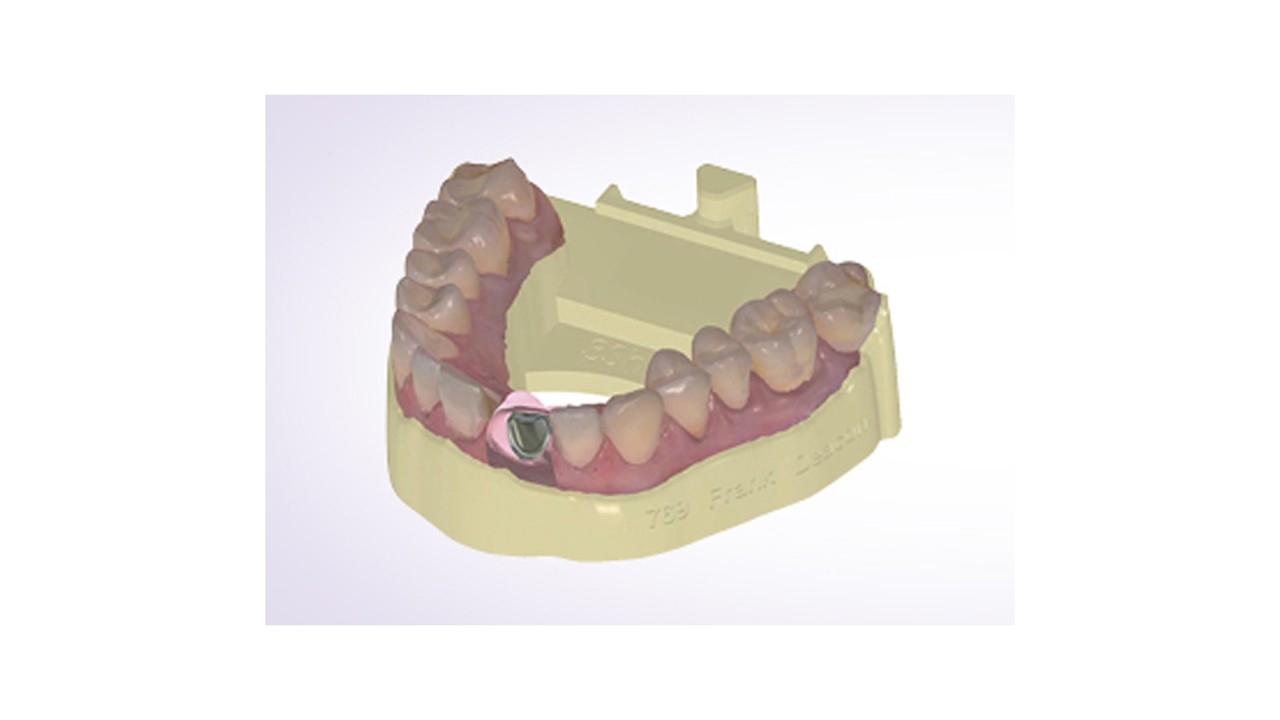

The Model Builder™ add-on module enables dental technicians to virtually construct working models. Laboratory models are very simple to produce based on these models.
The Model Builder™ add-on module makes it easy for you to manufacture laboratory models, including implant models, for multiple indications directly from digital impressions and scans of physical impressions.
Benefits:
- One template for all: Only one investment in a single model production system is required to be able to manufacture models by 3D printing or milling machine.
- Wide range of functions: Create removable neighbouring teeth and implant models with gingival masks. Select and position the articulator interface without difficulty and trim the model automatically to fit the crown and abutment.
- Reduce workflows and throughput times: Scans are cleaned, optimised and prepared for direct usage in the CAD construction. The special software automatically inserts precise friction bars that hold the copings securely in the shaft during articulation and handling.
- Import scans of TRIOS® and third parties: Select single-stump models, secondary bases and uncut models for each individual case.
- Add ID tags: You can virtually engrave case data, such as the order number or the name of the patient, on the model.
- Everything backed up: Machine-specific parameters are saved in editable and reusable profiles.

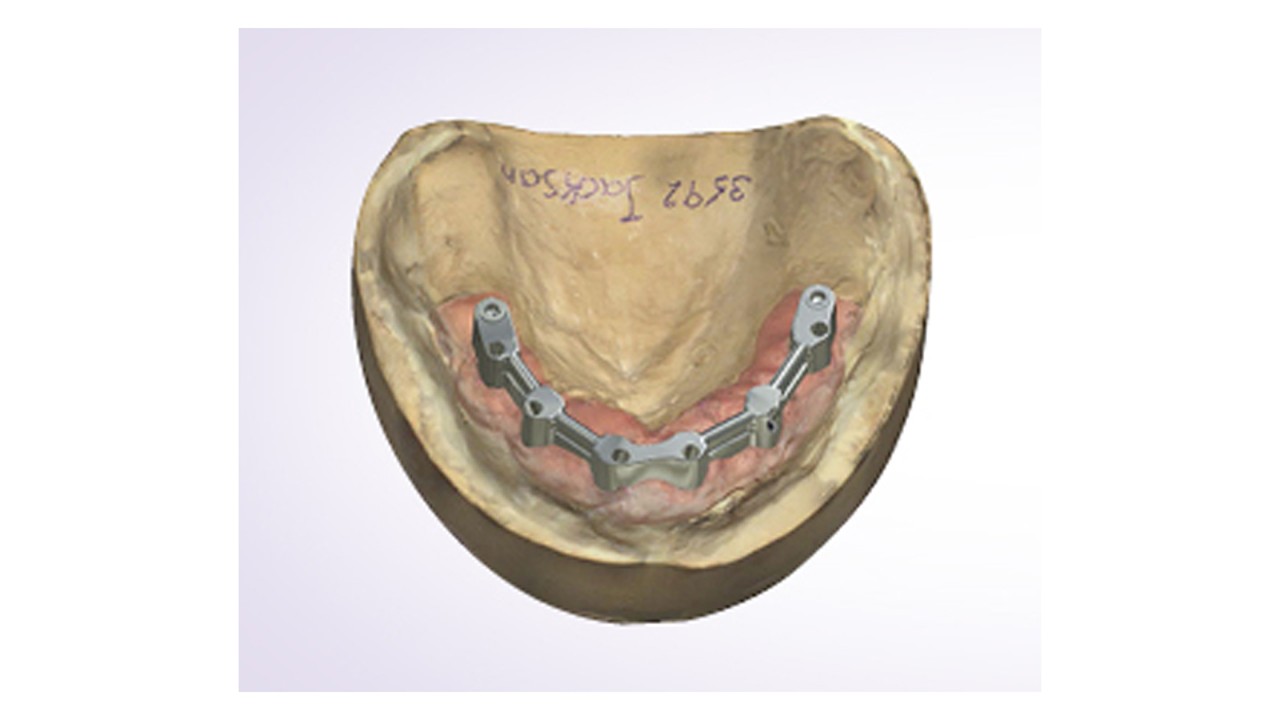

Implant Bars & Bridges™
Precision by mouse-click. Implant bars and bridges for removable and fixed dentures often form complicated geometrical patterns and demand maximum precision. The Implant Bars & BridgesTM add-on module simplifies the virtual design process.
Implant Bars & Bridges™ supports standard and free-form bars and enables virtual adding of attachments, Locator® and retention drilling for simple and efficient bar design. Implant bridges can be designed directly with gingiva.
Benefits:
- Design all implant restorations: Implant Bars & BridgesTM can be used for a wide range of standardised bars and bridge types.
- Greater profitability: The completely digital workflow bypasses numerous time and material-intensive phases of work.
- Targeted evaluation: Scanning of a preliminary set-up or restoration can e.g. be combined with a bar design and assessed in advance on the screen. This enables a perfect combination of dental prosthetics, bar and implant.
- Flexible design: The new soft surface transition makes it easy to use several types of bars in one single design.
- Attachment type as desired: Attachment parts or ball attachments, Locator® and retention holes are easy to add and the position and angle can be adjusted as required.
- Optimized surface finish: The new cut-to-gingiva tool allows you to match the bar to the underlying gingiva and achieve a high-quality surface finish.
- Aesthetic gingiva: Design your implant bridges complete with gingiva based on the final anatomy and a gingival margin that you define to match the conditions.
- Comprehensive library support: You have access to numerous implant libraries for support with direct insertion and multi-unit abutments.

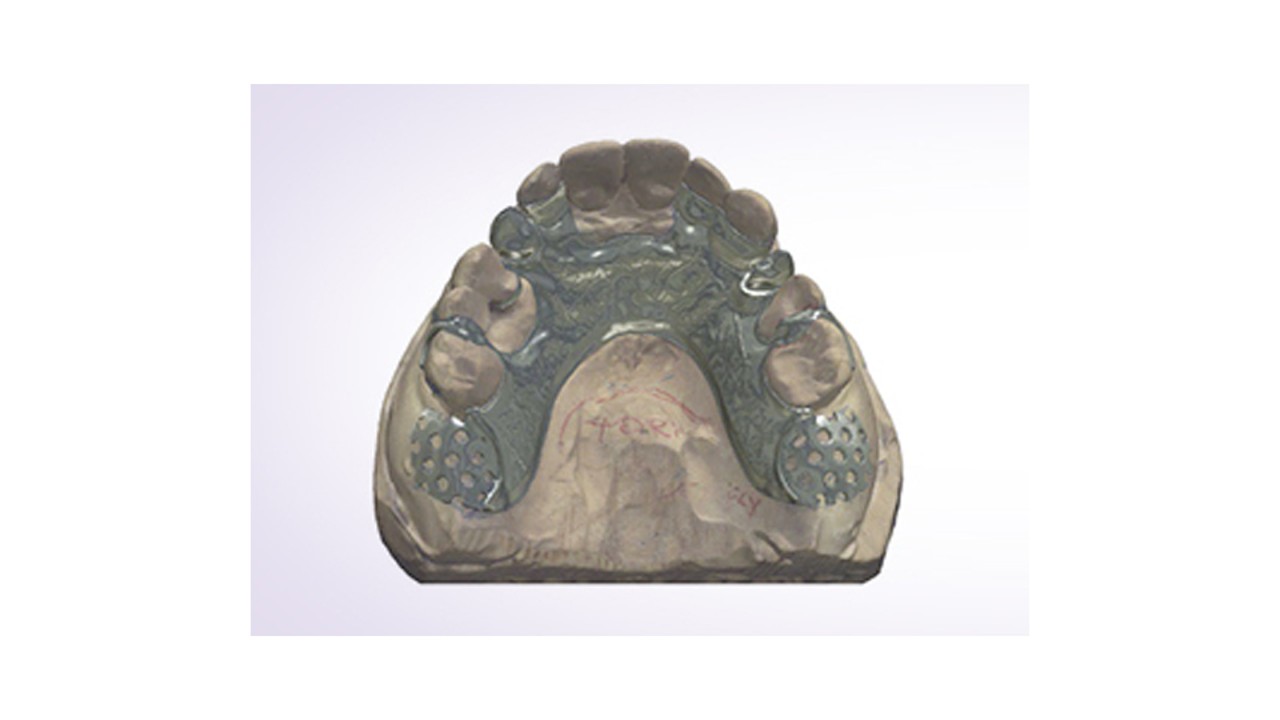

Removable Partial Design
Removable Partial Design is a special software for virtual creation of removable dentures. The Dental SystemTM partial denture add-on covers all phases of design of rigid and flexible components of a partial denture.
Design clasps and aesthetic, functional occlusal onlays, test and block undercuts and display them and enjoy even more freedom for modelling with the new tool for defining the areas for stippled wax. The Removable Partial Design™ partial denture software is currently only available as software; designs cannot currently be manufactured in the cara production centre.
Benefits:
- Best-possible fit: The software is ideal for precise identification of the ideal position for undercuts and planning clasps and automatic virtual wax blocking for optimal fit and reliable retention.
- Compatible system: The retention grid is selected from a list of predefined grid patterns and the main connection area is marked with a quick-modulation tool. The finishing lines and transitions to the main connectors and the retentions are automatically created.
- Optimal clasp and connector design: The virtual clasp is positioned in the model with predefined or customised clasps.
- Versatile tools: Insert large and small connectors and retention grids, draw the optimal areas directly on the model and add flexible retainer bars and moulds.
Impression Scanning

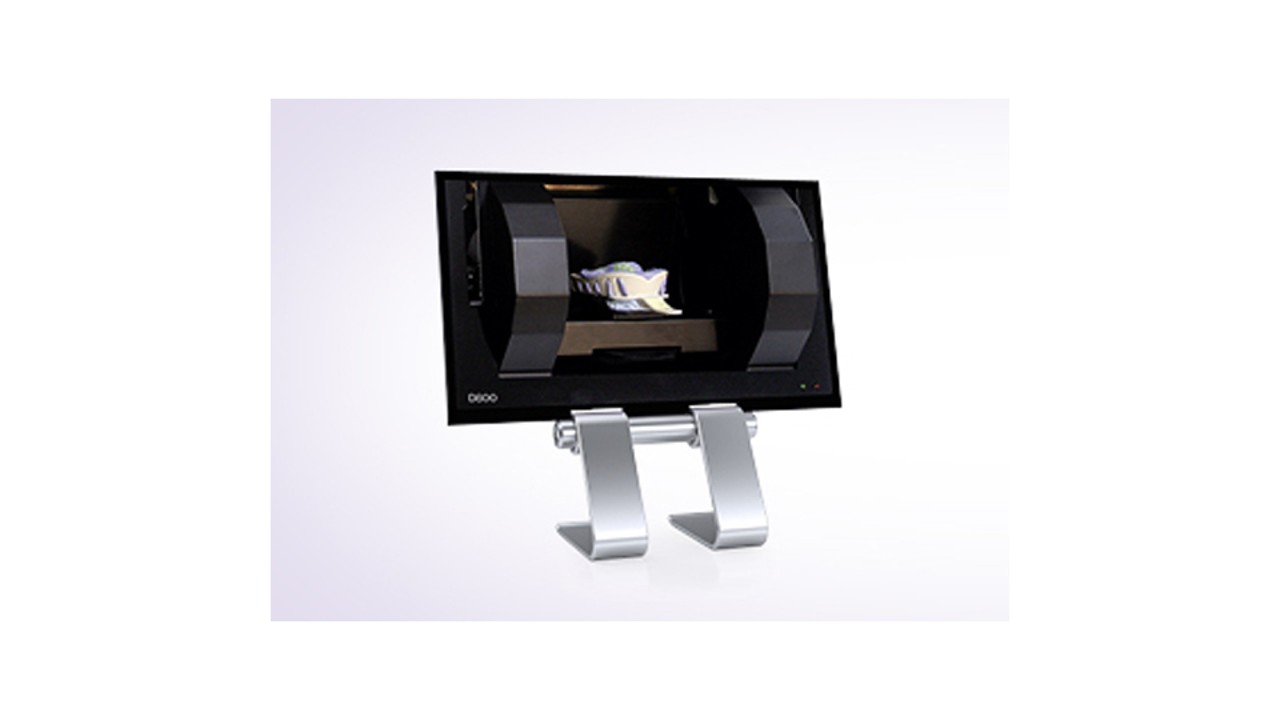

Optimise processes and reduce costs. Directly scanning silicone and alginate impressions with the Impression Scanning add-on module represents an excellent opportunity for both the dental laboratory and the dental practice to optimise their working processes and to save costs.
The high-resolution scanner with optimised angles combined with adaptive scan technology patented by 3shape even allows deeper anterior preparations to be scanned. Impression scans, just like plaster model scans, can be imported directly for further revision by the system.
Benefits:
- Faster workflow: A high-precision digital model can be created immediately after the impression.
- Work more economically: Optimised processes ensure reduced processing times and the rapid-prototyping process reduces manufacturing costs.
- Parallel production: Model, copings and crowns can be manufactured simultaneously.
- Maximum precision: No loss of precision in the model manufacturing process.
Ortho Analyzer™

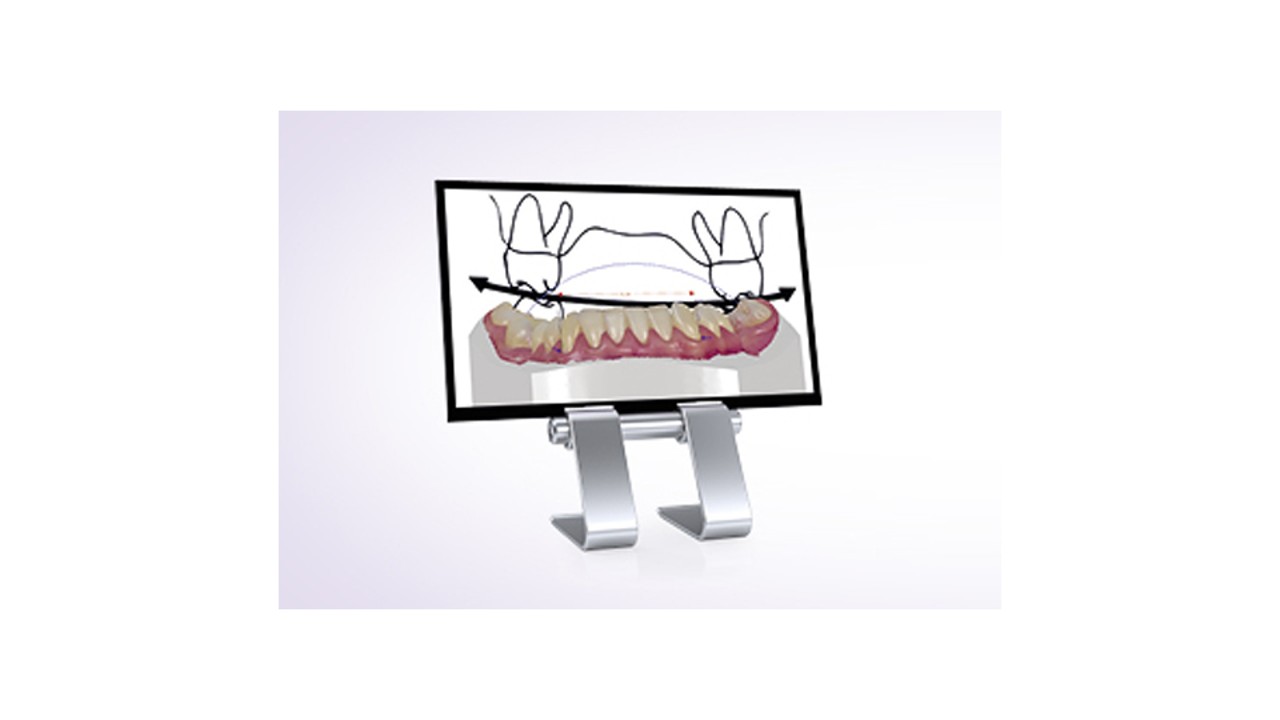

It’s so easy to bring orthodontics directly into the laboratory. The Ortho Analyzer™ analytical software enables you to create virtual setups in this field and to export treatment plans.
Digital situation models and treatment plans and also indirect adhesive technique – this add-on to Dental System™ gives you more to offer customers and patients!
Benefits:
- Step-by-step planning: Teeth can be virtually separated and virtually moved step by step to the ideal dental arch for a treatment process. The number of movement steps can be set as desired.
- Exact before and after comparison: Treatment results can be displayed by a precise before and after comparison.
- Fast model structure: Rapid prototyping can be used to create physical models with continual movement steps and splints for regulating teeth can be created.
- Create apparatus types: Create trays for indirect adhesion, bite splints, retainers, adjusted multiband appliances, splints, palatal bars, bionators, twin blocks, Herbst appliances, Planas tracks and other orthodontic appliances
Downloads
CAD Points
The ideal entry level package for small laboratories that want to offer all indications without having to pay high licence fees. With CAD Points, you only pay on demand, i.e. when you actually use the software. You retain complete flexibility with a wide range of indications at a low price.
Overview

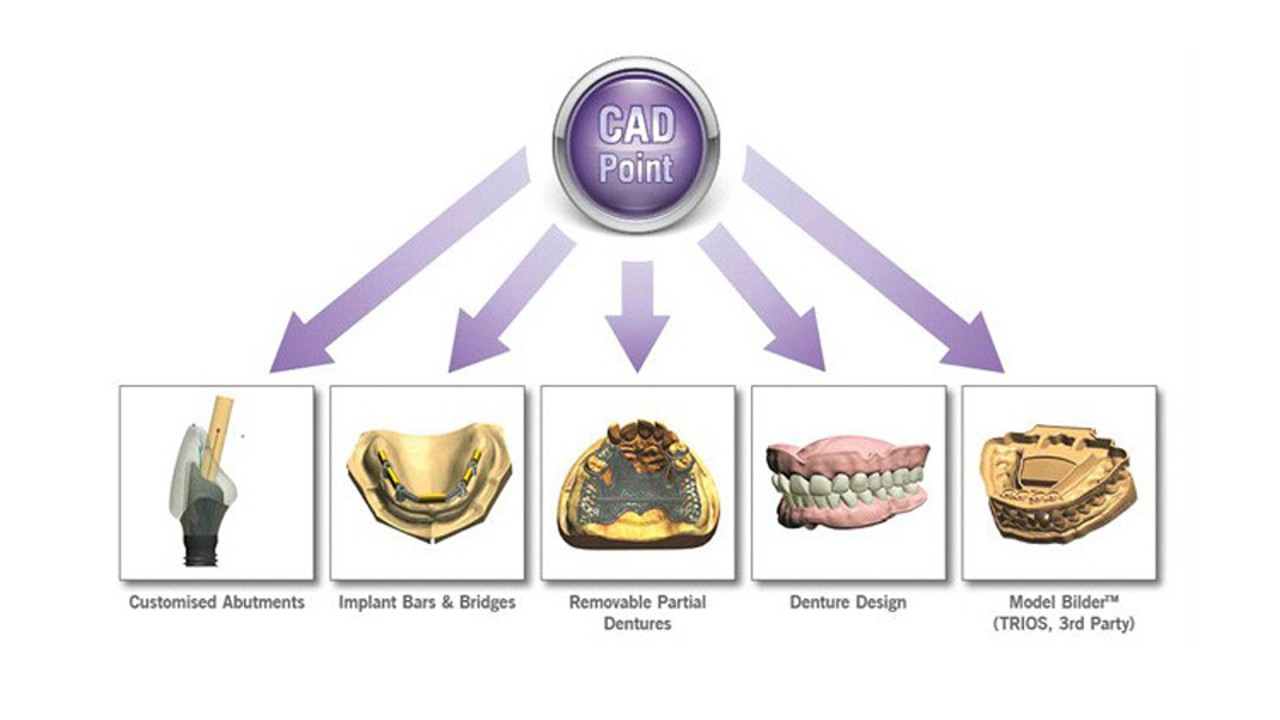

The cara CAD Points starter package allows you to use the Abutment Designer™ , Denture Design™ , Implant Bars & Bridges™ , Model Builder™ , Ortho Analyzer™ and Removable Partial Design add-on software modules by paying with CAD Points as required without needing a licence
| ModelBuilder™ | AbutmentDesigner™ | Implant Bars & Bridges™ |
Partial denture |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Preparation of scan data, making saw cuts or dies and assigning the models | Individual abutments are easy and efficient to produce | Superstructures are quick and easy to design on implants |
Partial denture |
|||||||||||
| Model Builder | AbutmentDesigner | Implant Bars & Bridges |
Removable Partial Design |
|||||||||||
Advantages of cara CAD Points at a glance
- Cost efficiency: With cara CAD Points, your laboratory has access to further indications without the direct investment costs for a software add-on module.
- Minimal risk: cara CAD Points are the safe and cost-efficient way for small laboratories to establish themselves in the CAD/CAM domain.
- Flexibility: cara CAD Points can be used immediately, for customised abutments, implant bars & bridges, partial dentures and Model Builder.
- Long life: cara CAD Points do not expire.
- Rapid purchase: It's quick and easy to order and activate cara CAD Points. Please specify the customer number and associated dongle number when placing your order.
Three packages to choose from
You can order cara CAD Points in three different packages of 100, 200 and 500 points.
| Article no. | Name | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66055071 | cara CAD points 100 | |||||||||||||
| 66055072 | cara CAD points 200 | |||||||||||||
| 66055073 | cara CAD points 500 | |||||||||||||
With the points you purchase, you can then create your jobs individually. Below are a few examples you can use to estimate the costs for individual indications
| CAD Indications | CAD Points | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copings and bridge frameworks | 4 per case | |||||||||||||
| Anatomical copings and bridge framework | 4 per case | |||||||||||||
| Gingiva on all indications | 4 per case | |||||||||||||
| Single wax up / Wax up bridge | 4 per case | |||||||||||||
| Tabletops and Non-prepared Veneers | 4 per unit | |||||||||||||
| Multi-layer crowns and bridges | 4 per case | |||||||||||||
| Digital temporaries | 4 per unit | |||||||||||||
| Virtual diagnostic wax-ups | 4 per unit | |||||||||||||
| Post & core | 4 per unit | |||||||||||||
| Telescopes | 4 per unit | |||||||||||||
| Customized abutments and screw-retained crowns | 9 per implant | |||||||||||||
| Implant bars and bridges | 9 per implant | |||||||||||||
| Full dentures | 15 per case | |||||||||||||
| Removable partial dentures | 15 per case | |||||||||||||
| Customized impression trays | 4 per case | |||||||||||||
| Model Builder™, TRIOS case | 6 per case | |||||||||||||
| Model Builder™, 3rd party case | 12 per case | |||||||||||||
| Positioning Guides | 4 per case | |||||||||||||
| Splints, night guards and protectors | 15 per case | |||||||||||||
Break-even point
CAD Points or a licence?
Your laboratory can use cara CAD Points to expand its production of abutments, implant bars & bridges and partial dentures slowly and surely. If your monthly production increases, at some point the break-even point will be reached at which purchase of a licence for the corresponding add-on software modules will be more cost-effective.
You can simply upgrade your software then, and enjoy the advantages of unlimited production. Below are a few examples of when the purchase of a licence may be to your benefit.
| Software module | Units per month | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abutments | ~ 6 units/month | |||||||||||||
| Implant Bars & Bridge | ~ 2 units/month** | |||||||||||||
| Partial denture | ~ 7 units/month | |||||||||||||
|
* Calculation based on list prices and an investment over 4 years ** Assuming that the customer already has the Abutment Designer licence. Price based on an implant bar on 3 implants. CAD Points are not available for the Ortho software modules! |
||||||||||||||
Actually, we just made that up. But what do you actually do? Please tell us about your habits and needs in a quick survey.
